Mitutoyo Digital Disc Micrometer Inch/Metric, 3-4", Non-Rotating Spindle, Disk=20mm 369-353-30 Flat Anvils no Central Recess
Mitutoyo Digital Disc Micrometer Inch/Metric, 3-4", Non-Rotating Spindle, Disk=20mm 369-353-30 Flat Anvils no Central Recess
Mitutoyo Digital Disc Micrometer Inch/Metric, 3-4", Non-Rotating Spindle, Disk=20mm 369-353-30 Flat Anvils no Central Recess
Mitutoyo Digital Disc Micrometer Inch/Metric, 3-4", Non-Rotating Spindle, Disk=20mm 369-353-30 Flat Anvils no Central Recess
Mitutoyo Digital Disc Micrometer Inch/Metric, 3-4", Non-Rotating Spindle, Disk=20mm 369-353-30 Flat Anvils no Central Recess
Mitutoyo Digital Disc Micrometer Inch/Metric, 3-4", Non-Rotating Spindle, Disk=20mm 369-353-30 Flat Anvils no Central Recess
Mitutoyo Digital Disc Micrometer Inch/Metric, 3-4", Non-Rotating Spindle, Disk=20mm 369-353-30 Flat Anvils no Central Recess
Roll over image to zoom in Click on image to zoom
Photo 1 of 7 More photos — use the arrows
Mitutoyo Digital Disc Micrometer Inch/Metric, 3-4", Non-Rotating Spindle, Disk=20mm 369-353-30 Flat Anvils no Central RecessMitutoyo Digital Disc Micrometer Inch/Metric, 3-4", Non-Rotating Spindle, Disk=20mm 369-353-30 Flat Anvils no Central RecessMitutoyo Digital Disc Micrometer Inch/Metric, 3-4", Non-Rotating Spindle, Disk=20mm 369-353-30 Flat Anvils no Central RecessMitutoyo Digital Disc Micrometer Inch/Metric, 3-4", Non-Rotating Spindle, Disk=20mm 369-353-30 Flat Anvils no Central RecessMitutoyo Digital Disc Micrometer Inch/Metric, 3-4", Non-Rotating Spindle, Disk=20mm 369-353-30 Flat Anvils no Central RecessMitutoyo Digital Disc Micrometer Inch/Metric, 3-4", Non-Rotating Spindle, Disk=20mm 369-353-30 Flat Anvils no Central RecessMitutoyo Digital Disc Micrometer Inch/Metric, 3-4", Non-Rotating Spindle, Disk=20mm 369-353-30 Flat Anvils no Central Recess

Mitutoyo Digital Disc Micrometer Inch/Metric, 3-4", Non-Rotating Spindle, Disk=20mm 369-353-30 Flat Anvils no Central Recess

MitutoyoSKU: 369-353-30
List price: £952.00 Offer price: £704.20 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
UKAS Calibration of Setting Disc
£25.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Please check before engraving: New gauges engraved to your requirements cannot be returned for credit if ordered incorrectly or no longer required. Please confirm the gauge specification and marking details before ordering. This does not affect your rights if the goods are faulty or incorrectly supplied.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10
Part number: 156-101-10  → View product
Mitutoyo Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10
Part number: 156-105-10  → View product
MMI-10 Micrometer Checker Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm
Part number: MMI-10  → View product
MMI-8 Micrometer Checker Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm
Part number: MMi-8  → View product
U-WAVE fit, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-622
Part number: 264-622  → View product
U-WAVE fit, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-623
Part number: 264-623  → View product
U-WAVE fit Bluetooth, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-626
Part number: 264-626  → View product
U-WAVE fit Bluetooth, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-627
Part number: 264-627  → View product
Mitutoyo Connection Unit IP Caliper, Micrometer U-WAVE fit, U-WAVE fit Bluetooth 02AZF310
Part number: 02AZF310  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA662
Part number: 05CZA662  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA663
Part number: 05CZA662  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380B
Part number: 06AFM380B  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
This Digimatic Disc Micrometer allows you to measure a range of different materials.
It offers you the following benefits:
  • Non-rotating spindle and disc-shaped measuring surfaces.

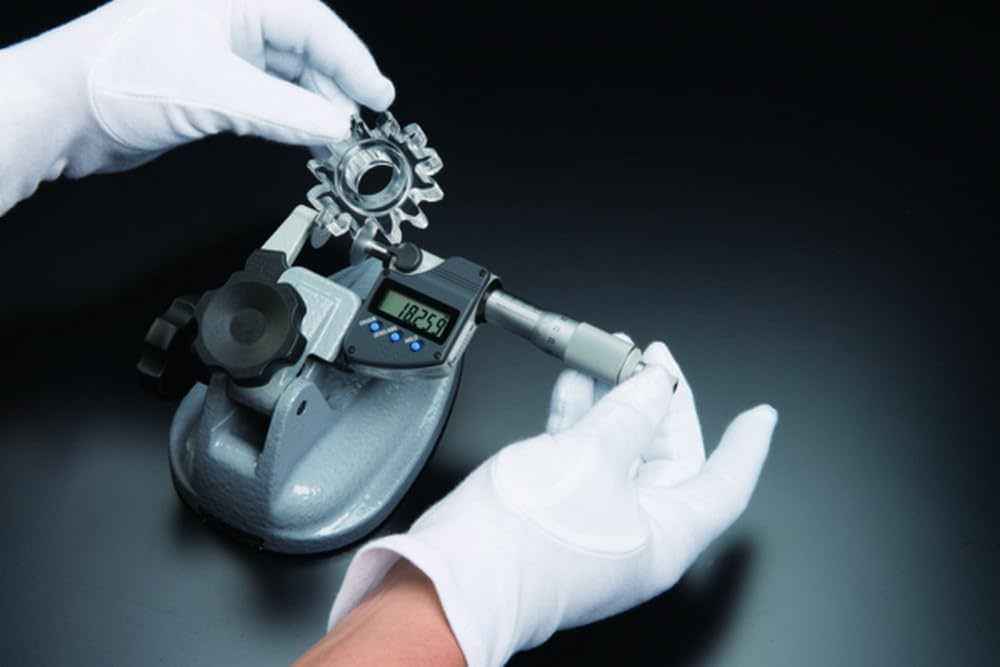

  • Measuring the root tangent length of spur and helical gears
  • Measurable range of gear pitch: 0,5-6 module
  • Suitable for measuring felt, rubber, cardboard, fabric etc.
Specification
Digital/Analog:
Digital
Delivered:
Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric:
Inch/Metric
Range:
3 - 4 "/75-100mm
Digital step:
0,00005"/0,001 mm
Max.
Permissible Error
J MPE:
±0,0003"/.0065mm
Parallelism:
0,0003"/.006mm
Display:
LCD, character height 7.5 mm
Measuring face:
Hardened steel, micro-lap finish
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
3 - 8 N
Power supply:
1 battery SR-44
Battery life:
Approx. 2.4 years
Measurable module:
0.5 - 6 mm
Delivered:
Including box, setting standard (from 25 mm upward), key, 1 battery

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital Disc Micrometer Inch/Metric, 3-4", Non-Rotating Spindle, Disk=20mm 369-353-30 Flat Anvils no Central Recess Click to open the PDF document
