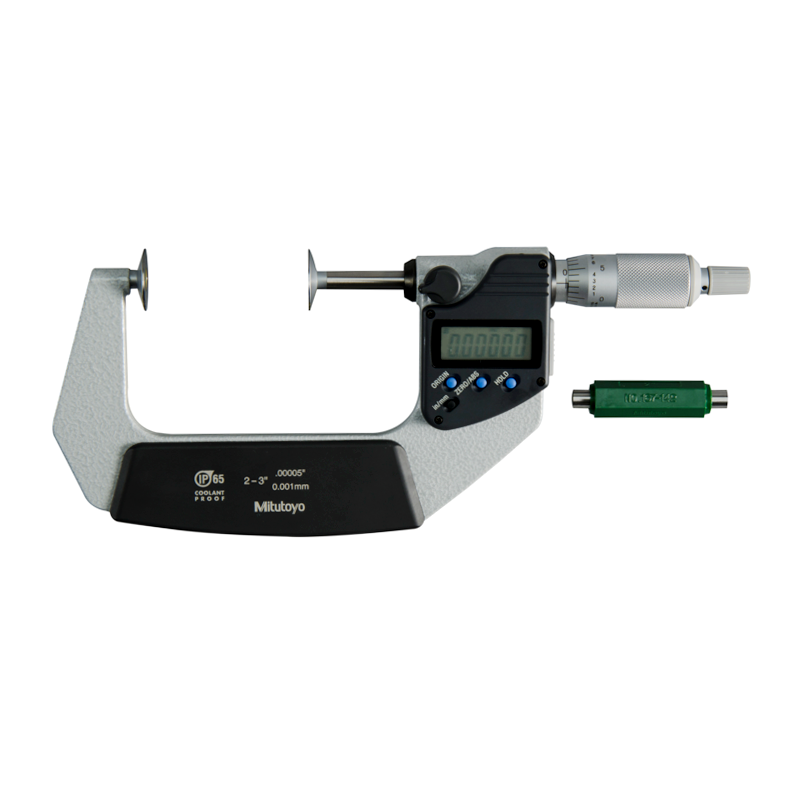

Mitutoyo Digital Disc Micrometer IP65 Inch/Metric, 50-75mm/2-3"Disk=20mm 323-352-30

MitutoyoSKU: 323-352-30
List price: £705.00 Offer price: £520.20 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
UKAS Calibration of Setting Disc
£25.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Please check before engraving: New gauges engraved to your requirements cannot be returned for credit if ordered incorrectly or no longer required. Please confirm the gauge specification and marking details before ordering. This does not affect your rights if the goods are faulty or incorrectly supplied.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10
Part number: 156-101-10  → View product
Mitutoyo Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10
Part number: 156-105-10  → View product
U-WAVE fit, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-622
Part number: 264-622  → View product
U-WAVE fit, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-623
Part number: 264-623  → View product
U-WAVE fit Bluetooth, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-626
Part number: 264-626  → View product
U-WAVE fit Bluetooth, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-627
Part number: 264-627  → View product
Mitutoyo Connection Unit IP Caliper, Micrometer U-WAVE fit, U-WAVE fit Bluetooth 02AZF310
Part number: 02AZF310  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA662
Part number: 05CZA662  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA663
Part number: 05CZA662  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380B
Part number: 06AFM380B  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
  • This Digimatic Disc Micrometer enables you to measure hard-to-reach features,
    offering you the following benefits:
    • Measuring the root tangent length of spur and helical gears.
    • You can measure recessed features that are difficult to reach with a standard micrometer.
    Specification
    Digital/Analog:
    Digital
    Delivered:
    Including box, spanner, 1 SR44 battery
    Inch-Metric:
    Inch/Metric
    Range: 50-75mm/2-3"
    Digital step:
    0,00005"/0,001 mm
    Max.
    Permissible Error
    J MPE:
    ±0,00024"/.006mm
    Parallelism:
    0,00024/.006mm
    Display:
    LCD, character height 7.5 mm
    Measuring face:
    Hardened steel, micro-lap finish
    Measuring spindle:
    With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
    Scale:
    Thimble and sleeve satin chrome finish, ø18 mm
    Measuring force:
    3 - 8 N
    Power supply:
    1 battery SR-44

No technical information is currently available.

No application information is currently available.
