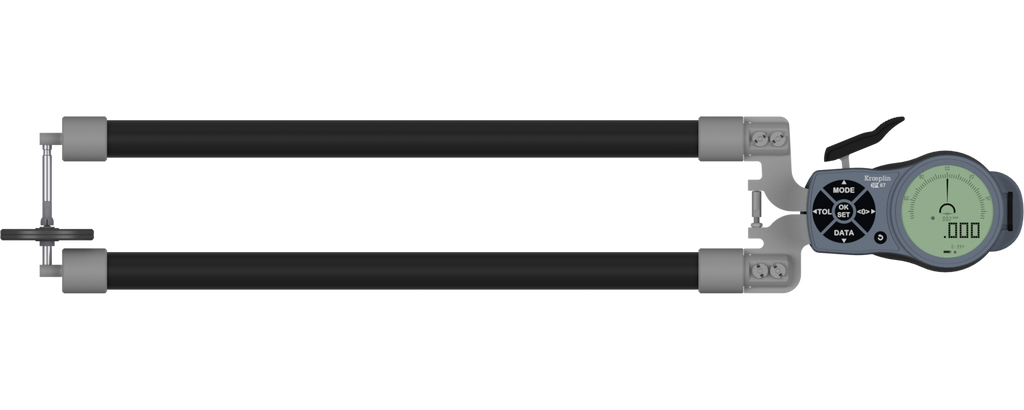

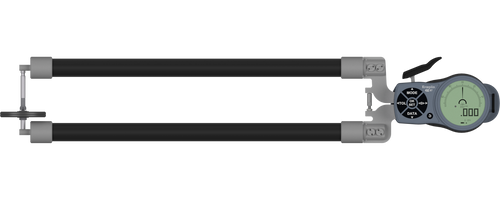

Kroeplin Digital External Caliper Gauge 0-100mm, 0.001mm K8100T with 50mm flat anvils

Roll over image to zoom in Click on image to zoom

Kroeplin Digital External Caliper Gauge 0-100mm, 0.001mm K8100T with 50mm flat anvils

Name: Kroeplin Digital External Caliper Gauge 0-100mm, 0.001mm K8100T with 50mm flat anvils
Brand: Kroeplin
SKU: K8100T
Price: 975.93 GBP
Availability: InStock

KroeplinSKU: K8100T

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£975.93

Quantity:

All prices exclude VAT, which will be added at checkout.

Kroeplin Digital External Measuring Caliper Gauge with 50mm flat anvils

Specification

External Caliper Features:

Range: 0-100mm (0-3.94″)
Resolution: 0.001mm (0.00005″)
Accuracy: ± 0.15mm (0.006″)
Repeatability: 0.01mm (0.004″)
Measuring depth: 375mm

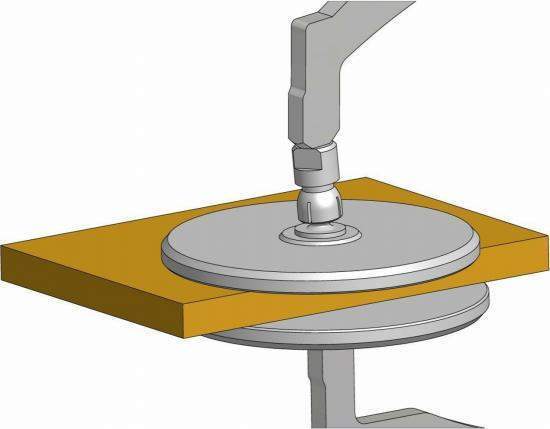

Type of measuring contact: Flat Ø 50mm
Measuring contact moveable: 39mm
Measuring contact fixed: 7mm
Min measuring force: 0.8N
Max measuring force: 8N
IP67 protection: Water, coolant & dust resistant
Application: Measurement of foamed material and foils
Data output
Inch/metric
MPN: K8100T
Brand: Kroeplin

Product Information
Part Number	K8100T
Measuring Ranges	0-100mm
Resolution	Switchable .001mm, .002mm, .005mm, .01mm/.00005", .0001", .001", .0005"
Accuracy	.15mm
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	IP67
Measuring Force	0.8-8N
Type	External Groove Gauge
Repeatability	0.1mm
Measuring Contacts	Disc 50mm diameter

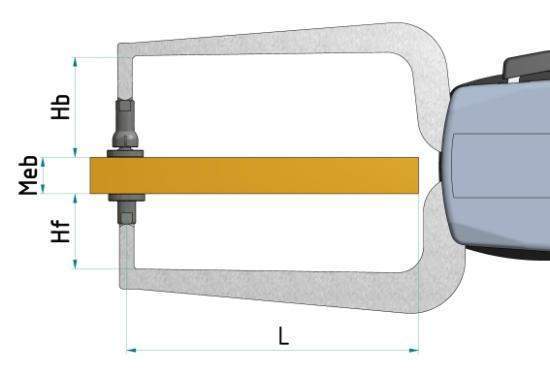

Measurement L	375mm
Measurement B	33mm
Measurement A	33mm
Manufacturer	Kroeplin

Menu

Kroeplin Digital External Caliper Gauge 0-100mm, 0.001mm K8100T with 50mm flat anvils

- Free UK delivery on orders over £100

Description

Kroeplin Digital External Measuring Caliper Gauge with 50mm flat anvils
