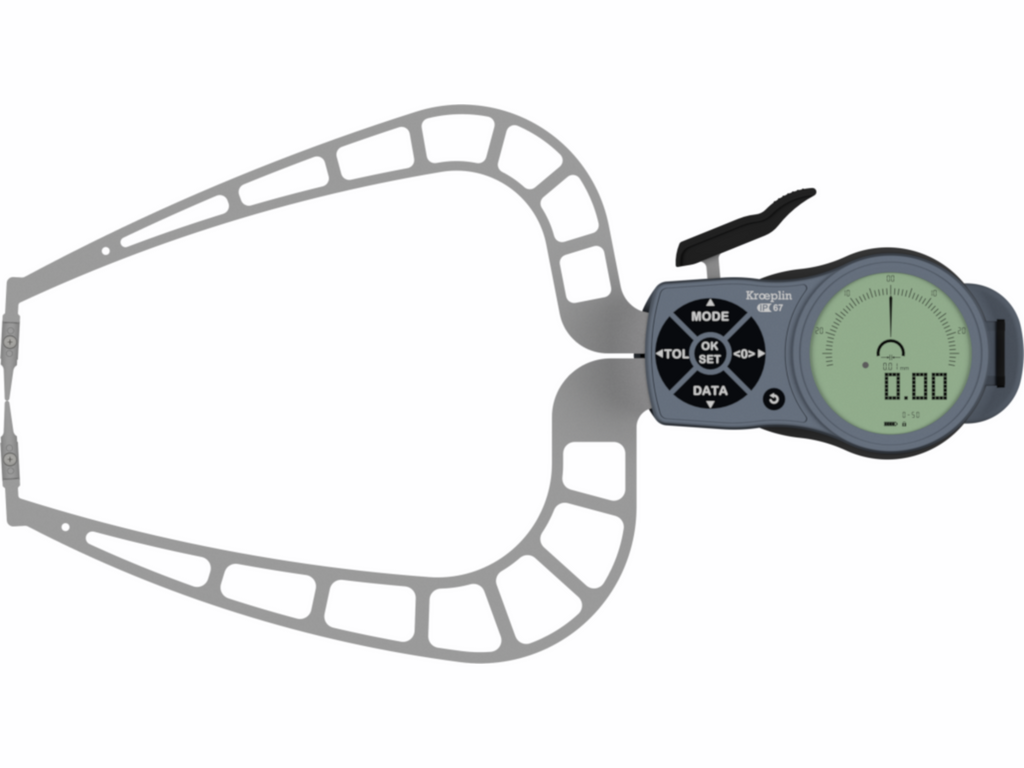

Kroeplin Digital External Measuring Caliper Gauge
| Type |
K450S |
|---|---|
| Display mm / inch |
inch, mm, mm + inch |
| Application |
External measurement |

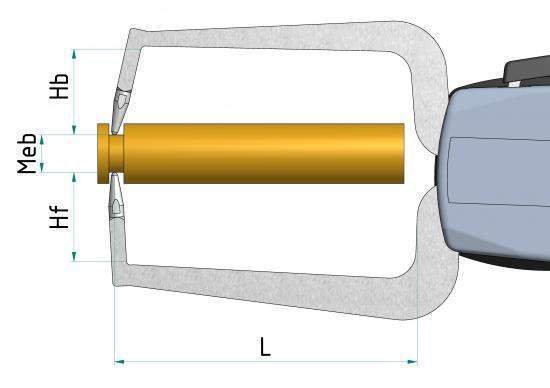

| Measuring span Mes |
50 mm |
| Measuring range Meb |
0 – 50 mm |
| Range of indication Azb |
0 – 50,5 mm |
| Numerical interval Zw |
0,001 / 0,002 / 0,005 / 0,01 / 0,02 / 0,05mm |
| Max. permissible errors G |
0,05 mm |
| Repeatability limit r |
0,03 mm |
| Measuring force F min. |
0,8 N |
| Measuring force F max. |
1,7 N |

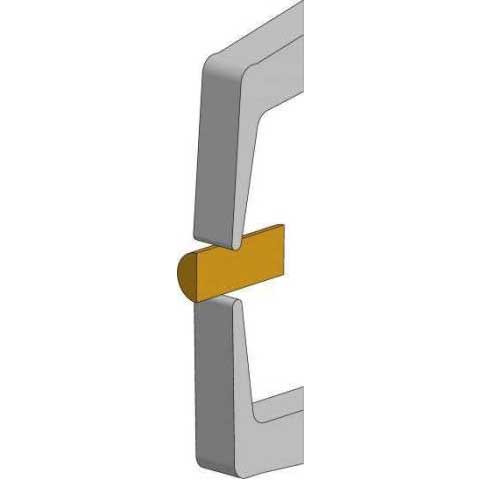

| Messkontaktform bew. |
Schneide R 0,75 mm |
| Measuring contact movable Hb |
30 mm |
| Messkontaktform fest |
Schneide R 0,75 mm |
| Measuring contact fixed Hf |
30 mm |
| Measuring contact thickness max. |
4 mm |
| Measuring depth max. L |
167 mm |
| Weight |
490 g |
| Reference temperature |
20 °C |
| Reference temperature |
10 – 30 °C |
| Storage temperature |
-10 – 50 °C |
| Protection class |
IP67 |
| Power supply |
2x LR03 (AAA) |

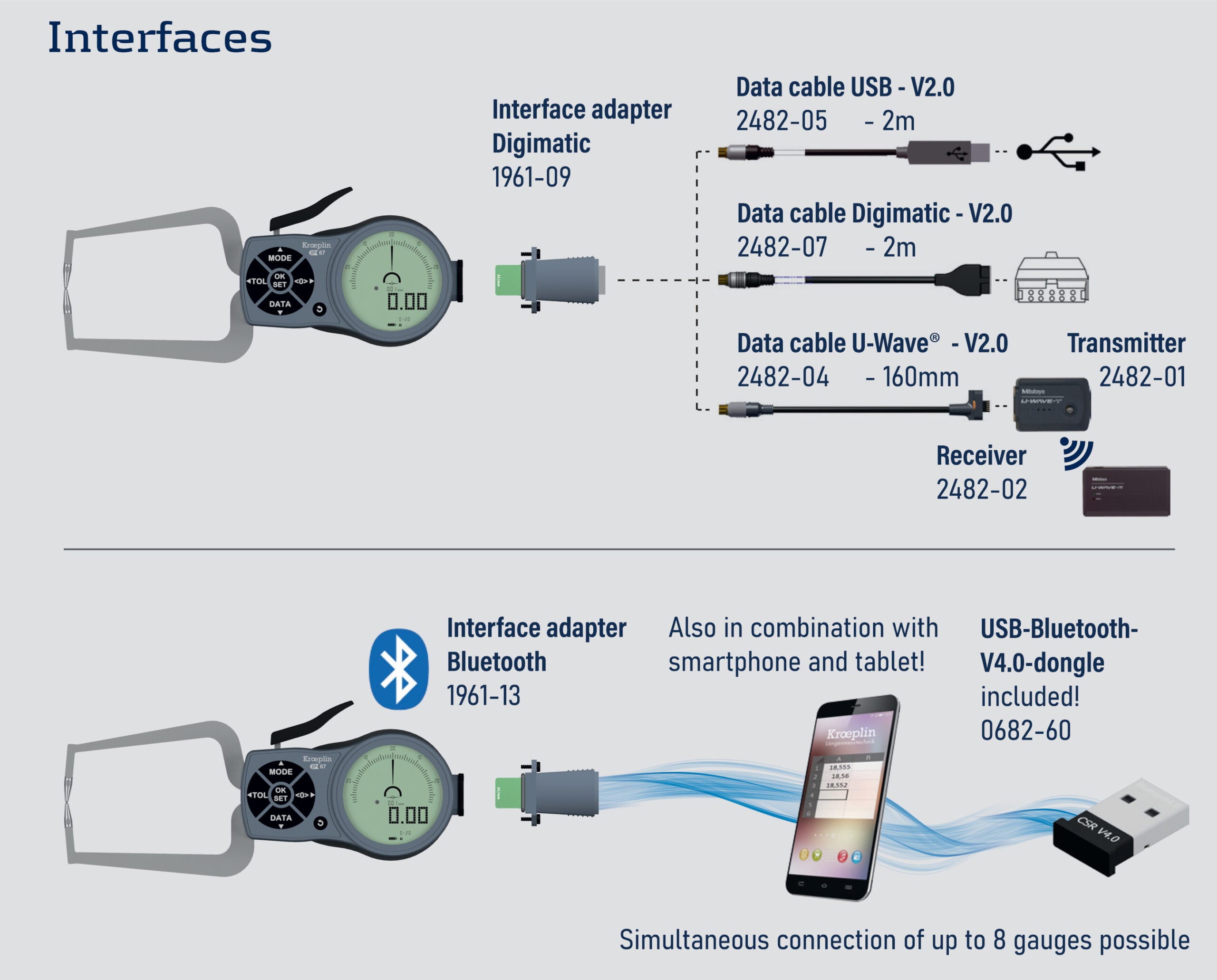

| Interface Bluetooth |
order no. 1961-13 |
| Interface Digimatic |
order no. 1961-09 + 2482-07 |
| Interface USB |
order no. 1961-09 + 2482-05 |
| Interface U-Wave® |
order no. 1961-09 + 2482-04 + 2482-01 + 2482-02 |
| Packaging |
wooden box order no. 1732-71 |
| Holding unit |
order no. 8007-10 |
