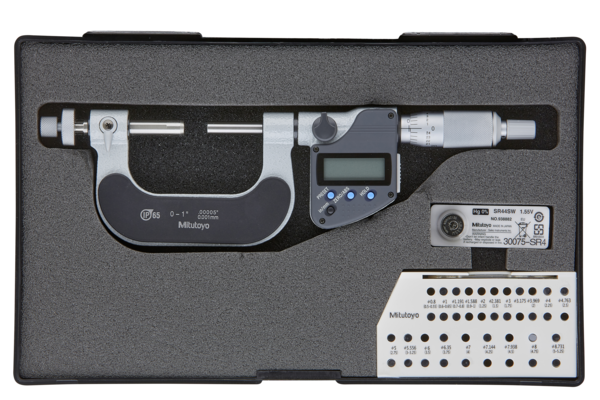

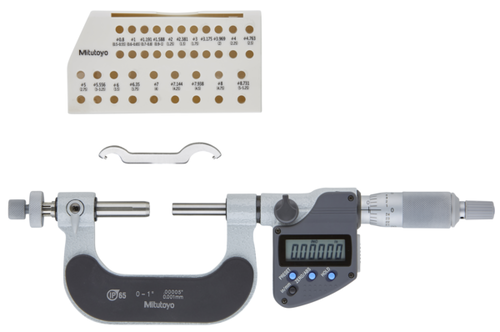

Mitutoyo; Digital Gear Micrometer
This Digimatic Gear Tooth Micrometer is designed to measure the over-pin diameter of gears .
- It has interchangeable steel or carbide ball inserts (optional accessory) that allow you to measure modules sized between 0.5-5.25 mm.
- Range: 0-25mm (0-1?)
- Resolution: 0.001mm (0.00005?)
- Accuracy: ± 0.004mm (0.0002?)
- IP65 Protected: Waterproof (coolant & dust resistant)
- Ratchet stop
- Inch-mm conversion
- Thimble and Sleeve scale
- With spindle lock: 6.35 mm diameter, spindle pitch 0.635 mm
No technical information is currently available.
No application information is currently available.
