Mitutoyo Digital Gear Tooth Micrometer IP65 Inch/Metric, 50-75mm/3-4 324-354-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Gear Tooth Micrometer IP65 Inch/Metric, 50-75mm/3-4 324-354-30

Name: Mitutoyo Digital Gear Tooth Micrometer IP65 Inch/Metric, 50-75mm/3-4 324-354-30
Brand: Mitutoyo
SKU: 324-353-30
Price: 599.0 GBP
Availability: InStock

MitutoyoSKU: 324-353-30

List price: £821.00 Offer price: £599.00 Excluding VAT

Quantity:

Optional Services

UKAS Accredited Calibration +£45.00 Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.

Add UKAS calibration of setting standard UKAS Calibration of Setting Disc
£25.00 per setting standard
The setting standard is calibrated separately from the micrometer.

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Overview Technical Information Applications Videos & Documents

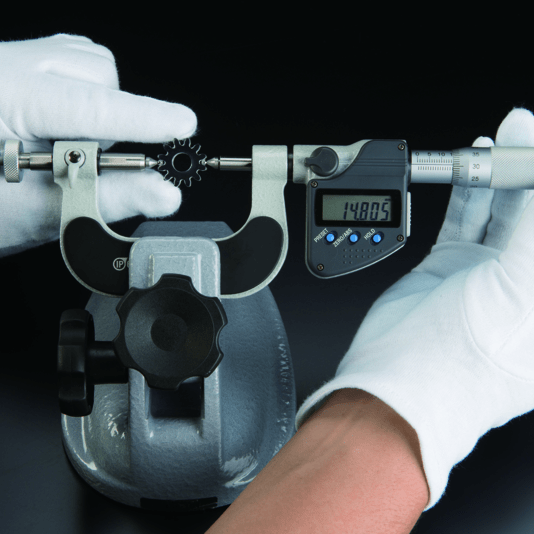

This Digimatic Gear Tooth Micrometer is designed to measure the over-pin diameter of gears .

It has interchangeable steel or carbide ball inserts (optional accessory) that allow you to measure modules sized between 0.5-5.25 mm.

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital Gear Tooth Micrometer IP65 Inch/Metric, 50-75mm/3-4 324-354-30 Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Expert Advice

Experienced engineers helping you select the correct measuring solution.

✔️

UKAS Calibration

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation & Training

Installation, commissioning and operator training available.

🤝

After Sales Support

Technical support, servicing, repairs and ongoing customer care.

Digital/Analog:	Digital
Delivered:	Including box, spanner, setting standard, 1 SR44 battery, without interchangeable tips
Inch-Metric:	Inch/Metric
Range:	75-100mm/3-4"
Digital step:	0,00005"/0,001 mm
Spindle feed error:	0.00015 inch
Display:	LCD, character height 7.5 mm
Measuring face:	Interchangeable anvil/spindle inserts (optional)
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years
Delivered:	Including box, setting standard (from 25 mm upward), key, 1 battery without interchangeable tips
