Digital Height Gauge Double Column 0-12"/300mm, Inch/Metric 192-630-10

Roll over image to zoom in Click on image to zoom

Digital Height Gauge Double Column 0-12"/300mm, Inch/Metric 192-630-10

Name: Digital Height Gauge Double Column 0-12"/300mm, Inch/Metric 192-630-10
Brand: Mitutoyo
SKU: 192-630-10
Price: 693.7 GBP
Availability: InStock

MitutoyoSKU: 192-630-10

All prices exclude VAT, which will be added at checkout.

Price:

£693.70 £991.00

Quantity:

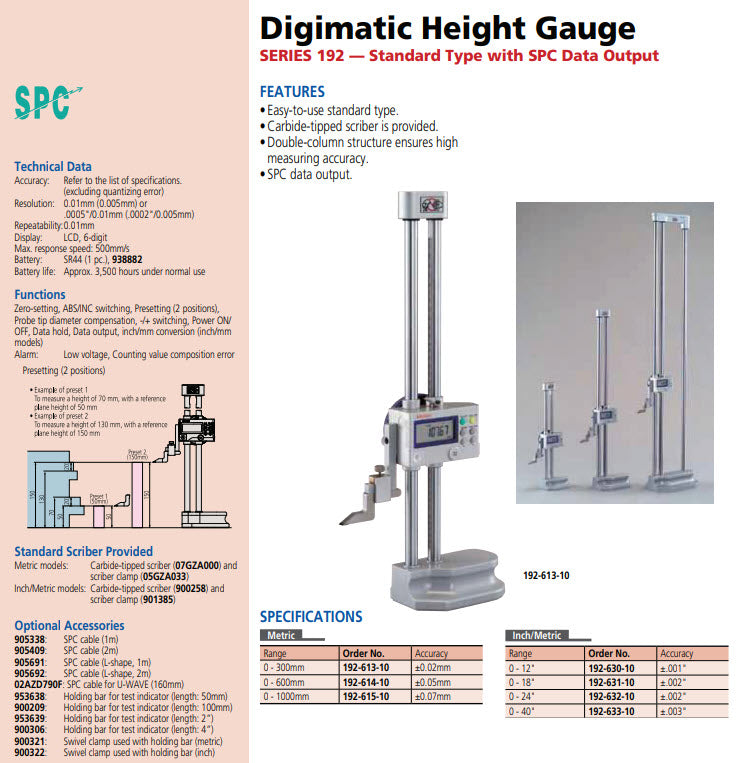

A Mitutoyo digital height gauge, twin column design. Standard-type functionality. Digimatic data output. An extensive range of accessories extends the application range.

Specification

Digital/Analog:	Digital
Delivered:	Including carbide tipped scriber, scriber clamp, SR44 battery and dust cover
Range:	0 - 12 "/0-300mm
Digital step:	0,0005/0,0002" or 0,01/0,005 mm
Max. Permissible Error E MPE:	±0,001"/±0,02 mm
Max. Permissible Error J MPE:	±0.02 mm/0.001"

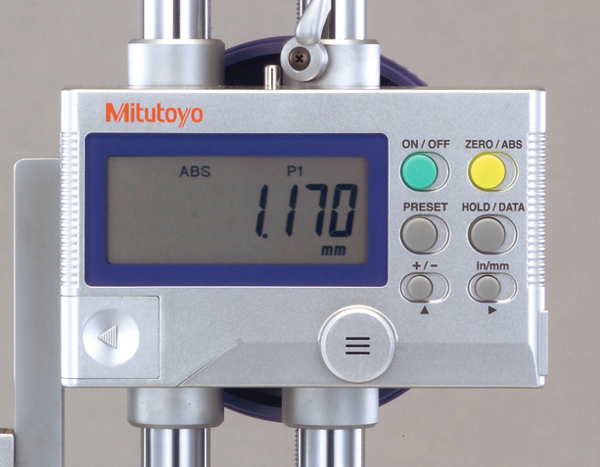

Display:	LCD, Character Height: 11 mm
Max. response speed:	500 mm/s
ON/OFF:	Yes
ABS / INC (INC ZERO):	Yes

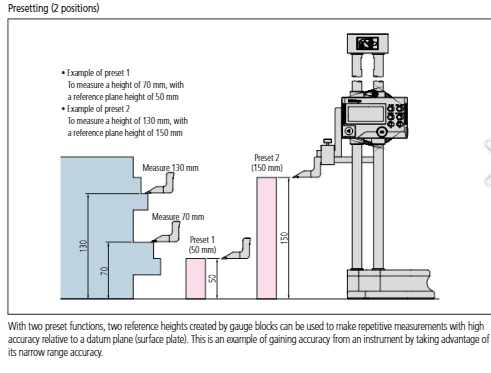

PRESET (2 values):	Yes
DATA (output with cable) / HOLD (display value):	Yes
Low voltage alarm:	Yes
±SWITCHING:	Yes
Mm / inch switching:	Yes
Inch-Metric:	Inch/Metric
Delivered:	Including scriber, scriber holder, 1 battery and cover
Power supply:	1 battery SR-44
Battery life:	approx. 3500 hours
Mass:	6.5 kg

Product Information
Part Number	192-630-10
Measuring Range	0-300mm/0-12"
Resolution	.005mm, .01mm/ .0002", .0005"
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
Weight	4.7kg
Height	475mm
Repeatability	.01mm
Maximum Permissible Error	±.02mm/±.001"
Calibration Code	CAL48 B1
Resolution/Capacity	.005mm, .01mm/ .0002", .0005"
