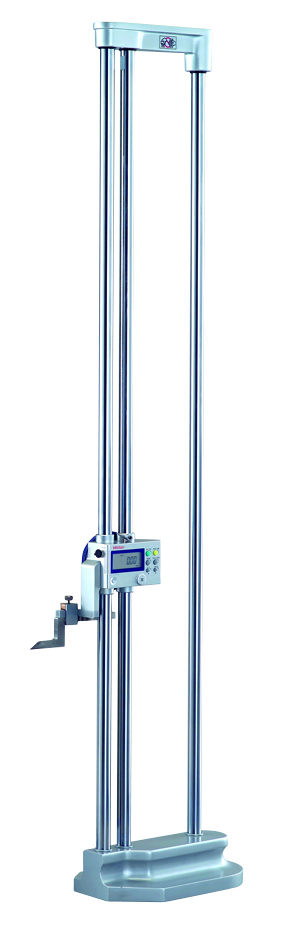

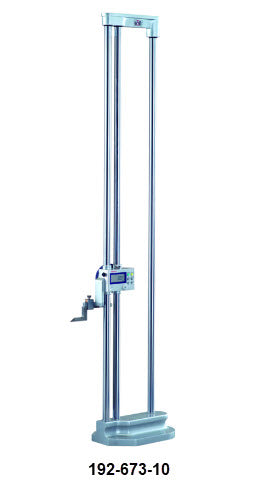

Digital Height Gauge Double Column 0-40"/1000mm, Probe Connector, Inch/Metric 192-673-10

Roll over image to zoom in Click on image to zoom

Digital Height Gauge Double Column 0-40"/1000mm, Probe Connector, Inch/Metric 192-673-10

Name: Digital Height Gauge Double Column 0-40"/1000mm, Probe Connector, Inch/Metric 192-673-10
Brand: Mitutoyo
SKU: 192-673-10
Price: 2387.0 GBP
Availability: InStock

MitutoyoSKU: 192-673-10

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£2,387.00 £3,270.00

Quantity:

All prices exclude VAT, which will be added at checkout.

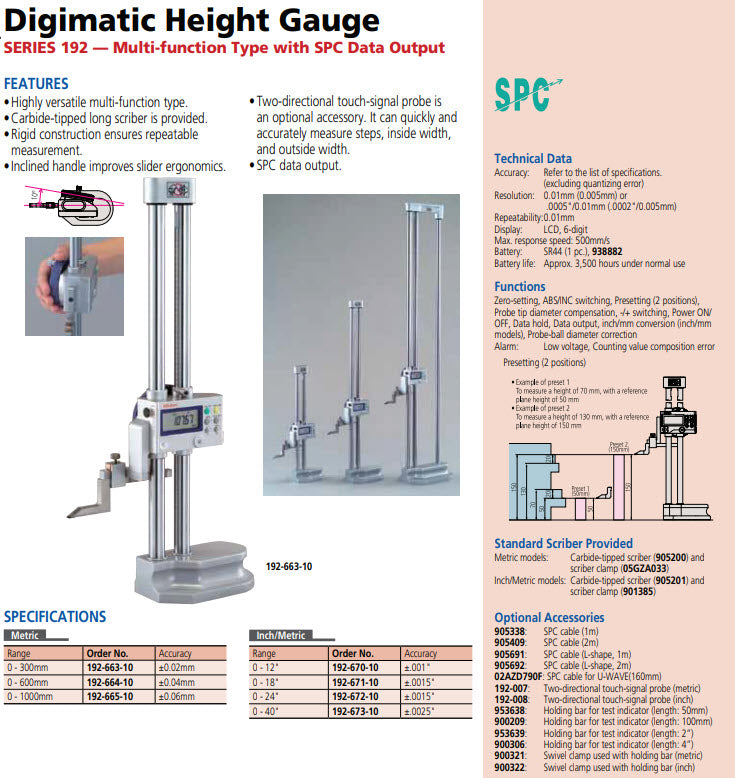

A Mitutoyo digital height gauge, twin column design. Multi-functional type. Digimatic data output. An extensive range of accessories extends the application range.

Specification

Digital/Analog:	Digital
Delivered:	Including carbide tipped scriber, scriber clamp, SR44 battery and dust cover
Range:	0 - 40 "
Digital step:	0,0005/0,0002" or 0,01/0,005 mm
Max. Permissible Error E MPE:	±0,0025"/±0,06 mm
Max. Permissible Error J MPE:	±0,06 mm/0,0025"
Display:	LCD, Character Height: 11 mm
Max. response speed:	500 mm/s
ON/OFF:	Yes
ABS / INC (INC ZERO):	Yes
PRESET (2 values):	Yes

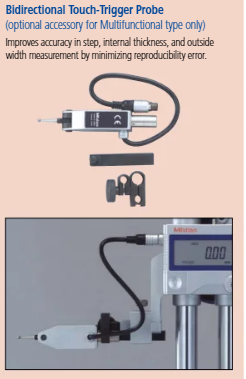

Touch-trigger probe:	Yes
Stylus tip diameter compensation:	Yes
DATA (output with cable) / HOLD (display value):	Yes
Low voltage alarm:	Yes
±SWITCHING:	Yes
Mm / inch switching:	Yes
Inch-Metric:	Inch/Metric
Delivered:	Including scriber, scriber holder, 1 battery and cover
Power supply:	1 battery SR-44
Battery life:	approx. 3500 hours
Mass:	19.8 kg

Product Information
Part Number	192-673-10
Measuring Ranges	0-1000mm/0-40"
Resolution	.005mm, .01mm/.0002",.0005"
Data Output	Yes
Height	1228mm
Repeatability	.01mm/.0005"
Manufacturer	Mitutoyo
