MitutoyoSKU: 192-673-10
List price: £3,270.00 Offer price: £2,387.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

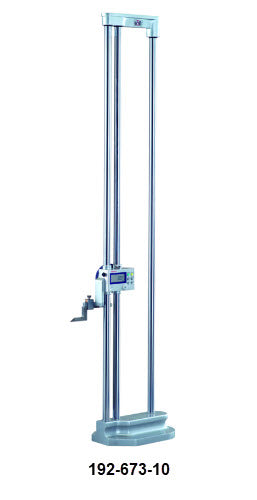

A Mitutoyo digital height gauge, twin column design. Multi-functional type. Digimatic data output. An extensive range of accessories extends the application range.
Specification
Digital/Analog:
Digital
Delivered:
Including carbide tipped scriber, scriber clamp, SR44 battery and dust cover
Range:
0 - 40 "
Digital step:
0,0005/0,0002" or 0,01/0,005 mm
Max. Permissible Error E MPE:
±0,0025"/±0,06 mm
Max.
Permissible Error
J MPE:
±0,06 mm/0,0025"
Display:
LCD, Character Height: 11 mm
Max. response speed:
500 mm/s
ON/OFF:
Yes
ABS / INC (INC ZERO):
Yes
PRESET (2 values):
Yes
Touch-trigger probe:
Yes
Stylus tip diameter compensation:
Yes
DATA (output with cable) / HOLD (display value):
Yes
Low voltage alarm:
Yes
±SWITCHING:
Yes
Mm?/?inch switching:
Yes
Inch-Metric:
Inch/Metric
Delivered:
Including scriber, scriber holder, 1 battery and cover
Power supply:
1 battery SR-44
Battery life:
approx. 3500 hours
Mass:
19.8 kg

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Digital Height Gauge Double Column 0-40"/1000mm, Probe Connector, Inch/Metric 192-673-10 Click to open the PDF document
