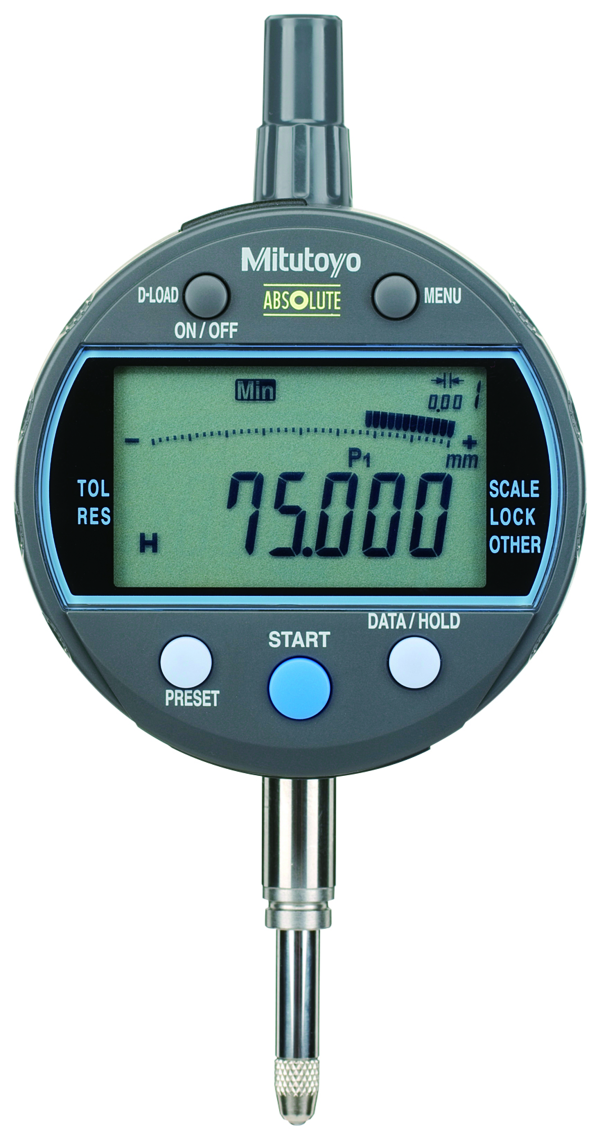

Digital Indicator, Bore Gauge ID-C 3/8" Stem 12.5mm/.5" range .001mm/.00005" 543-312B-10

Roll over image to zoom in Click on image to zoom

Digital Indicator, Bore Gauge ID-C 3/8" Stem 12.5mm/.5" range .001mm/.00005" 543-312B-10

Name: Digital Indicator, Bore Gauge ID-C 3/8" Stem 12.5mm/.5" range .001mm/.00005" 543-312B-10
Brand: Mitutoyo
SKU: 543-312B
Price: 377.0 GBP
Availability: InStock

MitutoyoSKU: 543-312B

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£377.00 £516.00

Quantity:

All prices exclude VAT, which will be added at checkout.

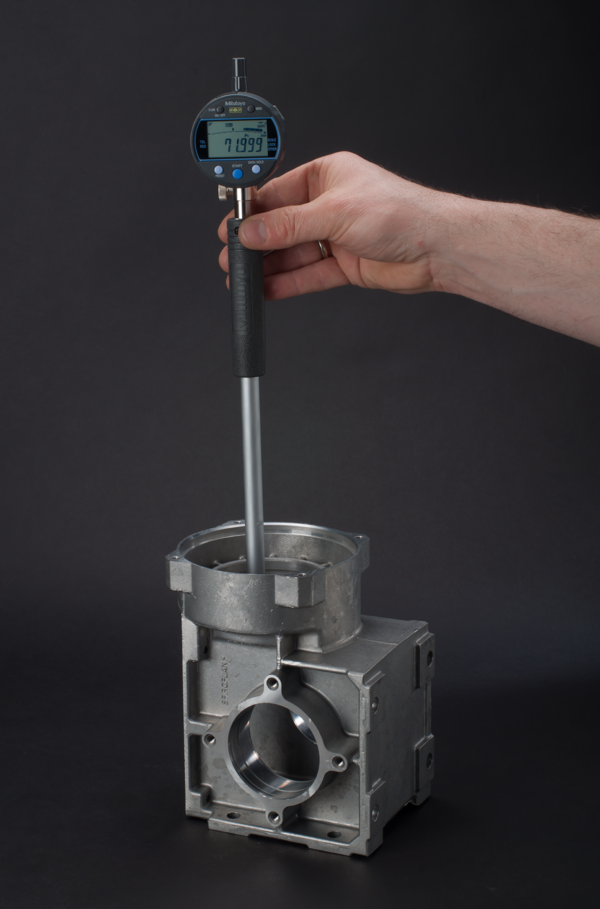

This indicator is designed for inside diameter measurement applications on bore gauges

It offers the following benefits:

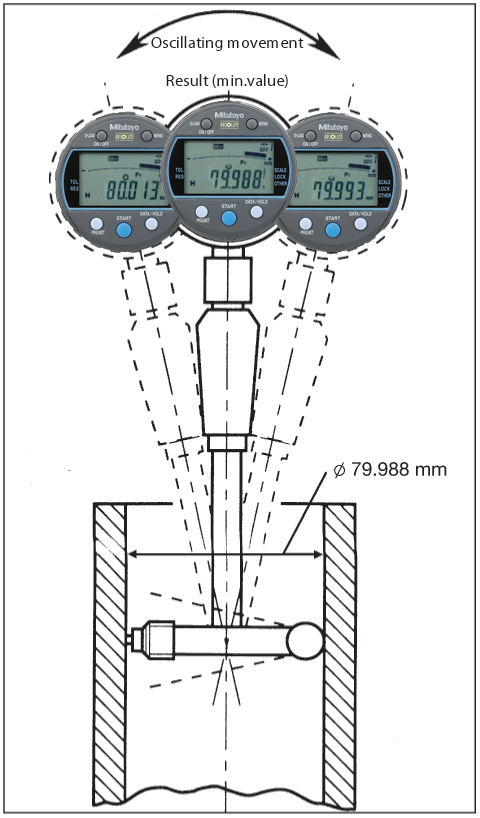

Minimum value holding function that allows you to easily detect a hole diameter
Analogue bar graph in the display (12 different scales switchable)
The analogue bar graph enhances usability by adding a dial gauge “feel” to digital measurement
GO/±NG tolerance judgement function
A fast measurement frequency mode(detection cycle 20ms or 50times/s) is selectable to measure in the peak detection mode more reliably
Easy indicator setup via a setup menu
A USB interface box can be used to set up the indicator from PC via dedicated software

Specification

Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Delivered:	Including CR2032 battery, certificate of inspection
Range:	0.5"/12.7 mm
Digital step:	0.00005"/0.0001"/0.0005"/0.001 mm/0.01 mm
Max. Permissible Error E MPE (Total Range):	±0.0001"/0.003 mm
H MPE (Hysteresis):	0.0001"/0.002 mm
R MPE (Repeatability):	0.0001"/0.002 mm
Measuring force MPL:	≤1.5 N
Protection:	IP42
Mass:	170 g
Type:	ASME/ANSI/AGD Standard
Display:	LCD, character height 8 mm, 330° rotatable
Max. response speed:	Unlimited
Measurement frequency (MAX/MIN/RANGE):	Standard mode: 10 times/s fast mode: 50 times/s (plunger speed max. 50 µm/s for peak measurement)
Alarm:	Low voltage, ABS composition error, overflow error, setting error
Stem ∅:	9.52 mm
Contact point:	Carbide ball, thread: No.4-48UNF
Power supply:	1 battery CR2032
Battery life:	Standard mode: approx. 1 year fast mode: approx. 4.5 month
DATA/HOLD:	Yes
PRESET 3x:	Yes
MIN Value Hold:	Yes
Digimatic data output:	Yes
ON/OFF:	Yes
Analog bar resolution switchable:	Yes
Function lock:	Yes
GO/±NG judgement:	Yes
Fast measurement mode:	Yes
Counting direction switchable:	Yes
Inch/Metric switchable:	Yes
Digital Scale:	Electrostatic capacitance type absolute linear encoder

Product Information
Part Number	543-312B
Measuring Ranges	12.7mm/0.5"
Resolution	0.001 mm/0.01 mm/0.00005"/0.0001"/0.0005"
Unit of Measurement	Metric Inch
Data Output	Yes
IP Rating	IP42
Measuring Force	≤1.5N
Repeatability	.002mm/.0001"
Hysteresis	.002mm/.0001"
Stem	9.52mm/3/8"
Manufacturer	Mitutoyo
