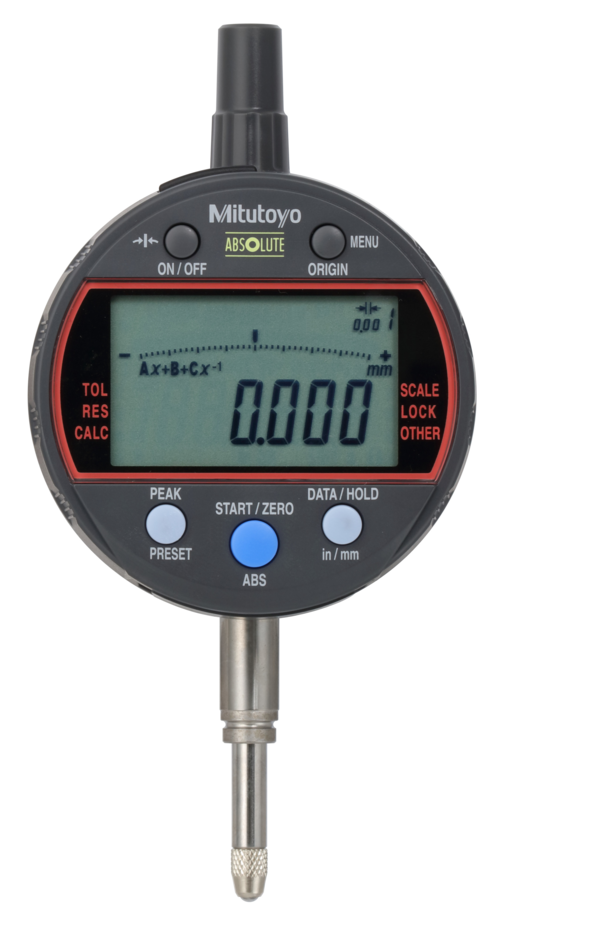

Name: Digital Indicator, Calculation ID-C 0.5"/12.7 mm 543-341B-10
Brand: Mitutoyo
SKU: 543-341B-10
Price: 388.0 GBP
Availability: InStock

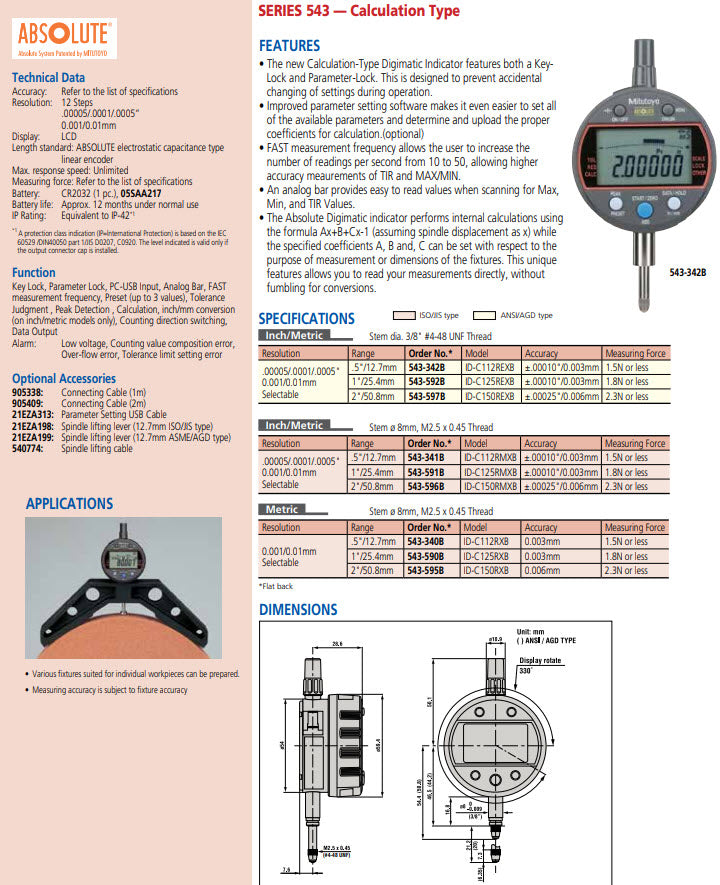

Digital Indicator, Calculation ID-C 0.5"/12.7 mm 543-341B-10

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

This indicator allows you to use a calculation function for the measured value
Ax+B+Cx^-1

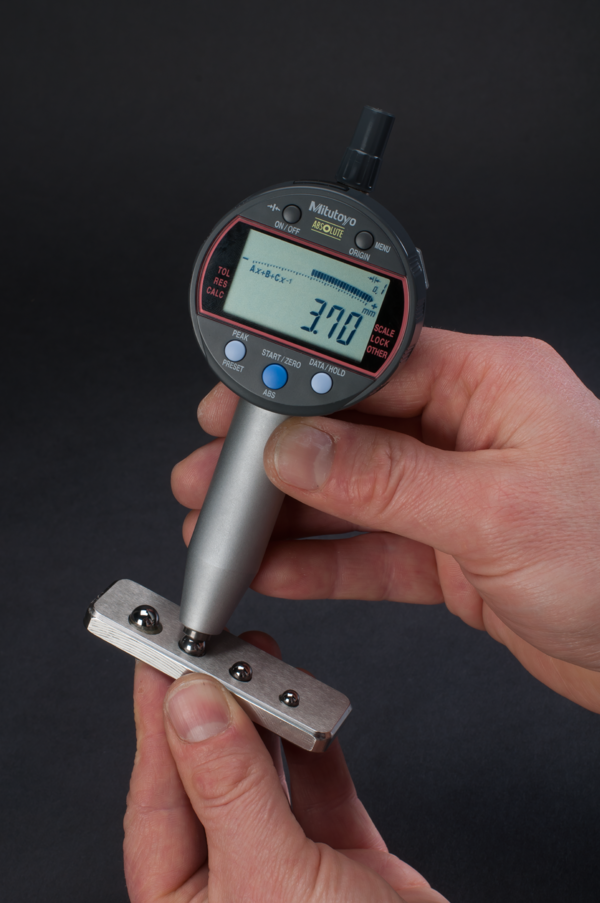

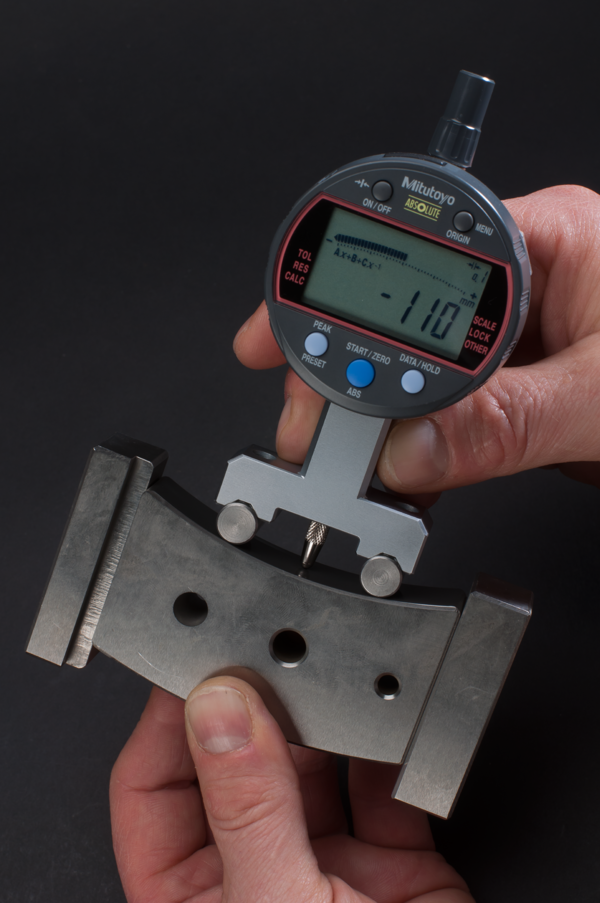

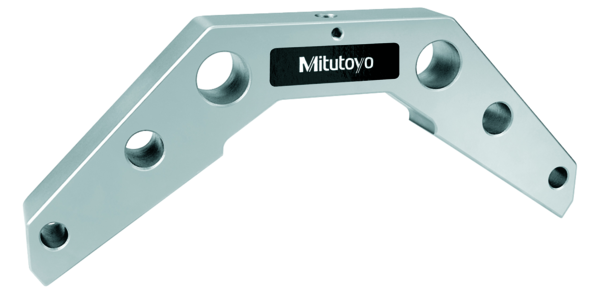

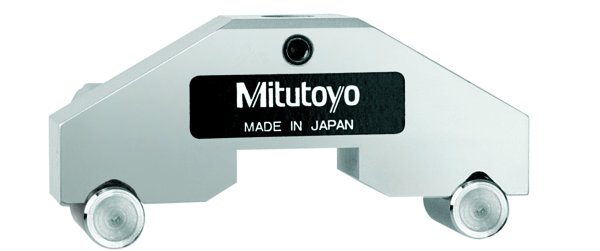

The integrated calculation formula is useful in a variety of applications (e.g. roll diameter measurement)
Coefficients A,B and C are freely definable. X = displacement of the plunger
Analogue bar graph in the display (14 different scales switchable)
GO/±NG tolerance judgement function
MAX/MIN/RANGE function to measure peak values
A fast measurement frequency mode(detection cycle 20 ms or 50 times/s) is selectable to measure in the peak detection mode (MAX/MIN/RANGE) more reliably
Easy indicator setup via a setup menu
A USB interface box can be used to set up the indicator from PC via dedicated software

Specification

Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Delivered:	Including CR2032 battery, certificate of inspection
Range:	0.5"/12.7 mm
Max. Permissible Error E MPE (Total Range):	±0.0001"/0.003 mm
H MPE (Hysteresis):	0.0001"/0.002 mm
R MPE (Repeatability):	0.0001"/0.002 mm
Measuring force MPL:	?1.5 N
Protection:	IP42
Type:	EN ISO Standard
Mass:	170 g
Display:	LCD, character height 8 mm, 330° rotatable
Max. response speed:	Unlimited
Measurement frequency (MAX/MIN/RANGE):	Standard mode: 10 times/s fast mode: 50 times/s (plunger speed max. 50 µm/s for peak measurement)
Alarm:	Low voltage, ABS composition error, overflow error, setting error
Stem ?:	8 mm
Contact point:	Carbide ball, thread: M2.5x0.45
Power supply:	1 battery CR2032
Battery life:	Standard mode: approx. 1 year fast mode: approx. 4.5 month
Remarks:	Digital step is switchable (12 steps)
DATA/HOLD:	Yes
PRESET 3x:	Yes
Digimatic data output:	Yes
ON/OFF:	Yes
Analog bar resolution switchable:	Yes
Function lock:	Yes
GO/±NG judgement:	Yes
Fast measurement mode:	Yes
ABS / INC (INC ZERO):	Yes
Selectable resolution:	Yes
Calculation function (with formula):	Yes
Counting direction switchable:	Yes
Inch/Metric switchable:	Yes
Digital Scale:	Electrostatic capacitance type absolute linear encoder

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Digital Indicator, Calculation ID-C 0.5"/12.7 mm 543-341B-10 Click to open the PDF document
