Name: Digital Indicator High Accuracy ID-H, 60.9mm, BS AC-Adapter, .0005mm 543-563
Brand: Mitutoyo
SKU: 543-563E
Price: 675.0 GBP
Availability: InStock

Digital Indicator High Accuracy ID-H, 60.9mm, BS AC-Adapter, .0005mm 543-563

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

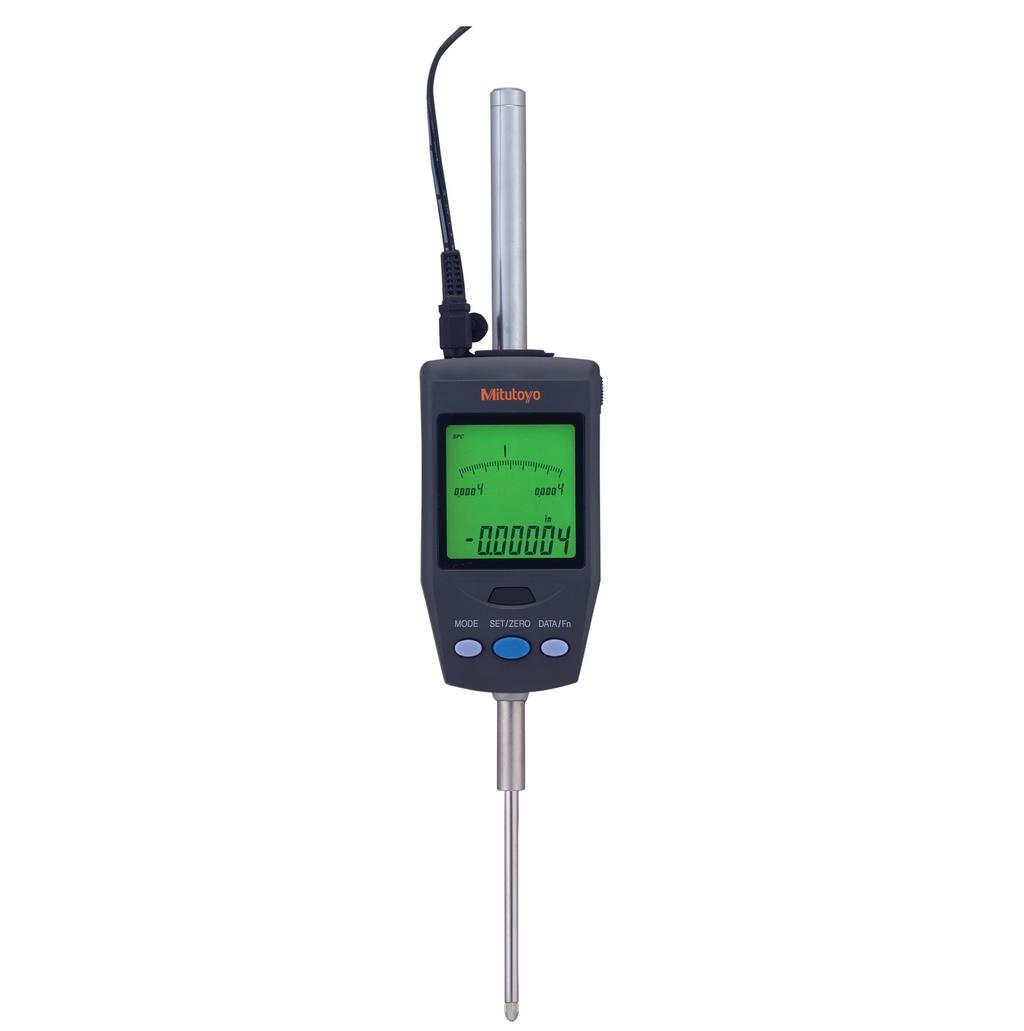

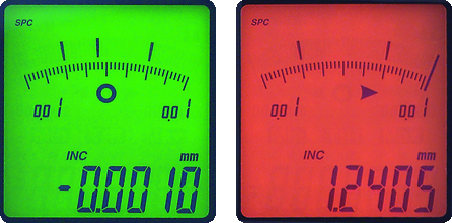

A Mitutoyo back-lit screen type digital indicator, mains-powered. Extensive functionality includes an analogue bar scale, switchable extra-high resolution, colour-coded tolerance judgement, Max/Min data hold, Runout measurement and function lock. Digimatic data output.

Specification

Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Functions:	ANSI/AGD type
Delivered:	Including AC-Adapter, spindle lifting handle, certificate of inspection
Range	60.9mm
Digital step:	0.0005 mm/0.001 mm
Max. Permissible Error E MPE (Total Range):	0.0015 mm

R MPE (Repeatability):	0.001 mm
Measuring force MPL:	?2 N
Protection:	IP30
Display:	LCD with red/green backlight, character height 9.5 mm
Max. response speed:	1000 mm/s
Alarm:	Counting value composition error, overflow error, tolerance setting error
Stem ?:	9.52 mm
Contact point:	Carbide ball, thread: No.4-48UNF
Power supply:	AC adapter 6 V DC, 2A
Remarks:	RS-232 input / output is applicable with appropriate connecting cable (1m: 21EAA130 or 2m: 21EAA131)
DATA/HOLD:	Yes
Digimatic data output:	Yes
ON/OFF:	Yes
Analog bar resolution switchable:	Yes
Function lock:	Yes
GO/±NG judgement:	Yes
RS-232C Output/Input:	Yes
RS-232C Input*:	Yes
ZERO SET:	Yes
Selectable resolution:	Yes
Counting direction switchable:	Yes
Inch/Metric switchable:	Yes
Digital Scale:	Photoelectric linear encoder

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Digital Indicator High Accuracy ID-H, 60.9mm, BS AC-Adapter, .0005mm 543-563 Click to open the PDF document
