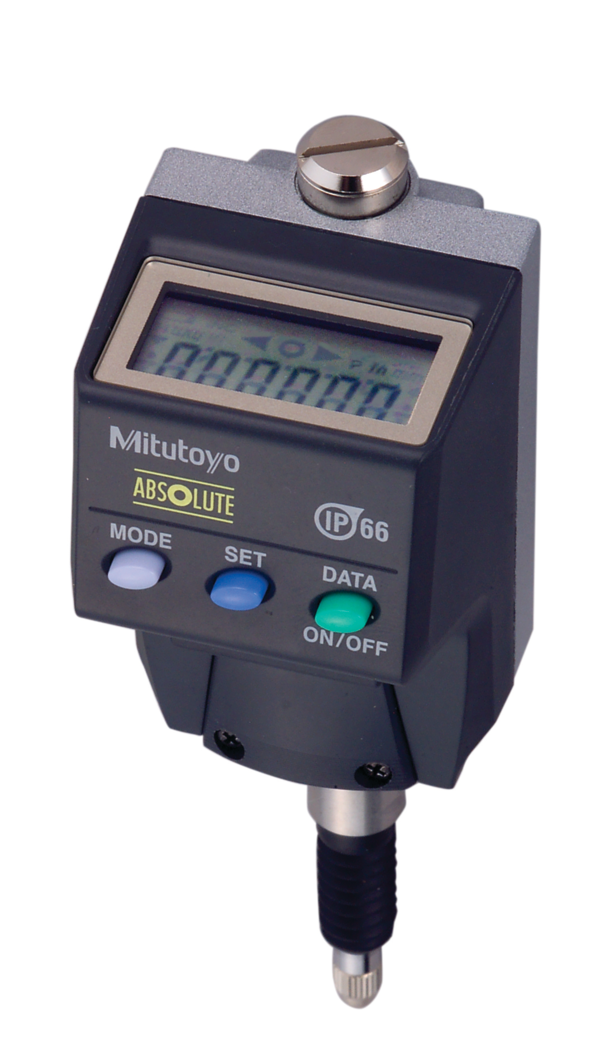

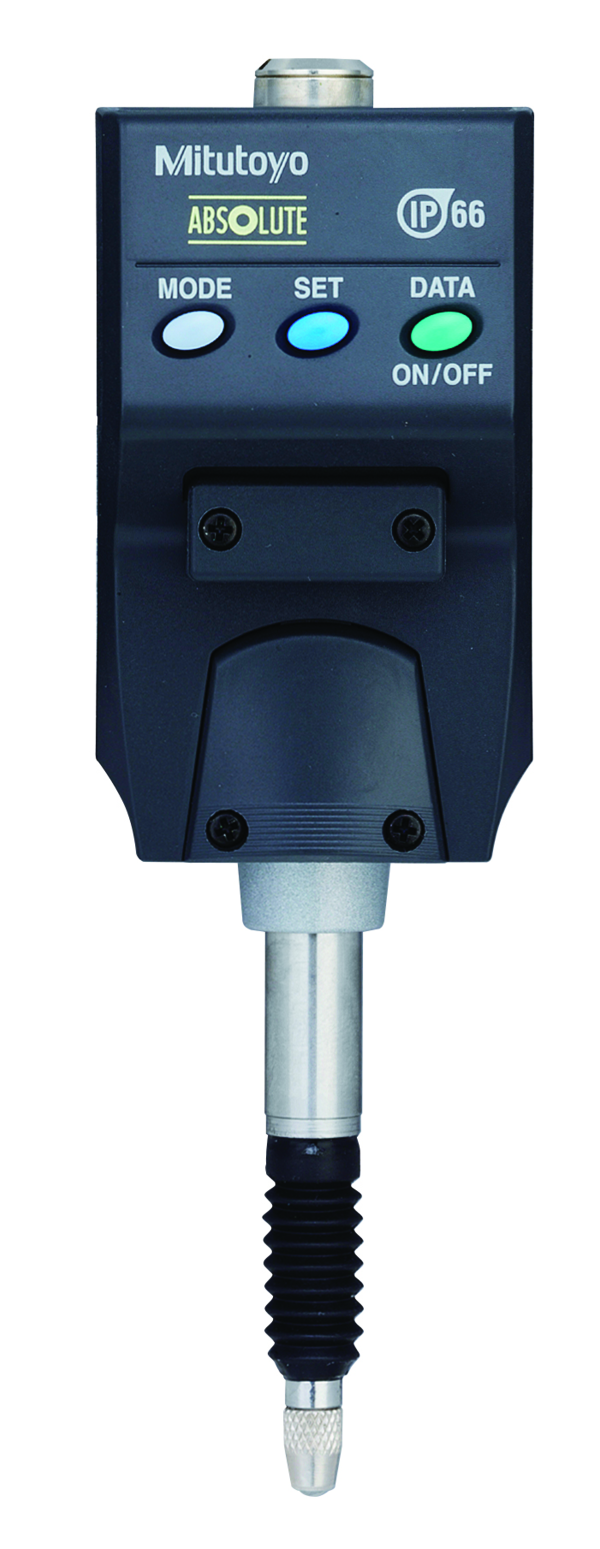

Digital Indicator ID-B, IP66, ANSI/AGD

MitutoyoSKU: 543-586

List price: Regular price£384.00 Offer price: Sale price£280.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Mitutoyo 21BZB005 Carbide Inch 4 x 48UNF Contact Element Ball Point 1/4" Length Ø.118"
Part number: 21BZB005  → View product
Mitutoyo 938882 SR44 Battery
Part number: 938882  → View product
U-WAVE-T, IP67 Type Wireless Transmitter 02AZD730G
Part number: 02AZD730G  → View product
U-WAVE Connection Cable G Flat Straight IP Type 02AZD790G
Part number: 02AZD790G  → View product
U-WAVE-T, Buzzer Type Wireless Transmitter 02AZD880G
Part number: 02AZD880G  → View product
U-WAVE Connection Cable G, Footswitch Flat Straight IP Type 02AZE140G
Part number: 02AZE140G  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380G
Part number: 06AFM380G  → View product
Digimatic Cable for ID-N/ ID-B 1m 21EAA194
Part number: 21EAA194  → View product
Digimatic Cable for ID-N/ ID-B 1m 21EAA190
Part number: 21EAA190  → View product
Digimatic Cable for ID-N/ ID-B 1m 21EAA210
Part number: 21EAA210  → View product
Digimatic Cable for ID-N/ ID-B 1m 21EAA211
Part number: 21EAA211  → View product
Mitutoyo Lug for 543 Series, ABS Coolant-pr Submitoof Digimatic Indicator (21EZA146)
Part number: 21EZA146  → View product
Mitutoyo 238774 NBR Rubber Boot for Digital Indicator Series 543 ID-N
Part number: 238774  → View product
Mitutoyo 21AAB562 NBR Rubber Boot for Digital Indicator Series 543 ID-B
Part number: 21AAB562  → View product
Mitutoyo 21EAA212 NBR Rubber Boot for Digital Indicator Series 543 IDB
Part number: 21EAA212  → View product
Mitutoyo 21EAA423 NBR Rubber Boot for Digital Indicator Series 543
Part number: 21EAA423  → View product
Mitutoyo 21EZA150 spindle LIFTING KNOB
Part number: 21EZA150  → View product

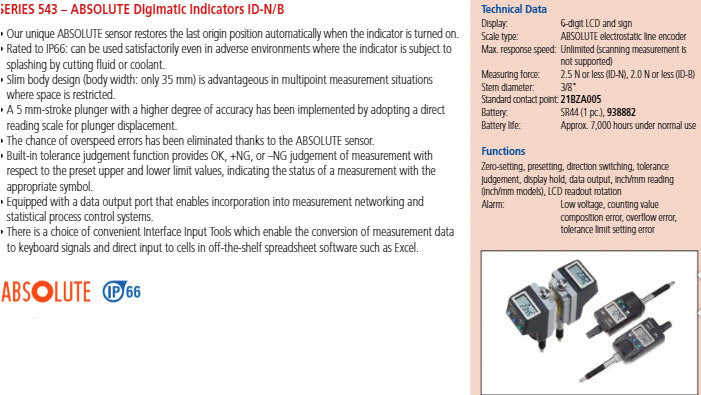

A Mitutoyo dustproof, waterproof, back-plunger type digital indicator suitable for use in the presence of coolant or cutting oil. ABSOLUTE System scale for error free, high-speed measurement. Functionality includes switchable resolution, tolerance judgement, data hold and readout rotation. SPC data output.
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Functions:
ANSI/AGD type
Delivered:
Including SR44 battery, certificate of inspection

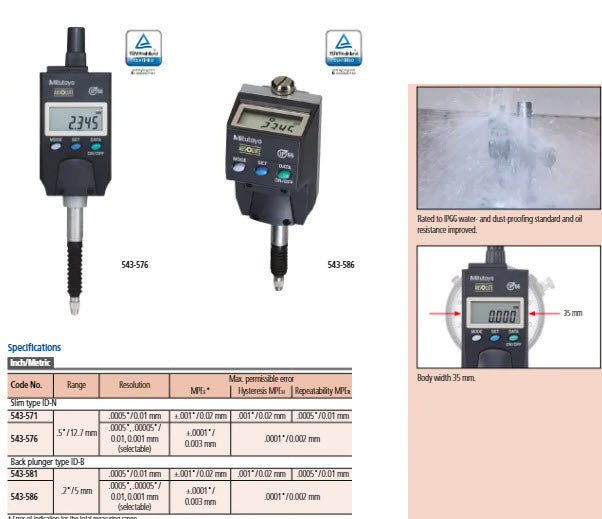

Range:
0.2"/5.08 mm
Digital step:
0.00005"/0.0005"/0.001 mm/0.01 mm
Max. Permissible Error
E MPE (Total Range):
±0.00012"/0.003 mm
H MPE (Hysteresis):
0.0001"/0.002 mm
R MPE (Repeatability):
0.0001"/0.002 mm
Measuring force MPL:
?2 N
Protection:
IP66
Type:
ASME/ANSI/AGD Standard
Measuring force:
?2 N N
Mass:
130 g
Display:
LCD, character height: 6.2 mm
Max. response speed:
Unlimited
Alarm:
Low voltage, counting value composition error, overflow error, tolerance limit setting error
Stem ?:
9.52 mm
Contact point:
Carbide ball, thread: No.4-48UNF
Power supply:
1 battery SR44
Battery life:
Approx. 7000 hours
DATA/HOLD:
Yes
Digimatic data output:
Yes
ON/OFF:
Yes
GO/±NG judgement:
Yes
External
PRESET / ZERO:
Yes
Selectable resolution:
Yes
Counting direction switchable:
Yes
Inch/Metric switchable:
Yes
Digital Scale:
Electrostatic capacitance type absolute linear encoder
