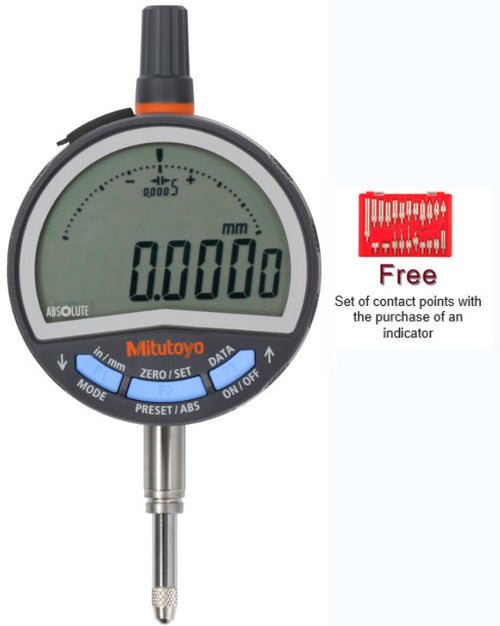

Digital Indicator ID-C Inch/Metric, 0,5", 0,00002", Lug Back Plate 543-701

Roll over image to zoom in Click on image to zoom

Digital Indicator ID-C Inch/Metric, 0,5", 0,00002", Lug Back Plate 543-701

Name: Digital Indicator ID-C Inch/Metric, 0,5", 0,00002", Lug Back Plate 543-701
Brand: Mitutoyo
SKU: 543-701
Price: 249.9 GBP
Availability: InStock

MitutoyoSKU: 543-701

All prices exclude VAT, which will be added at checkout.

Price:

£249.90 £357.00

Quantity:

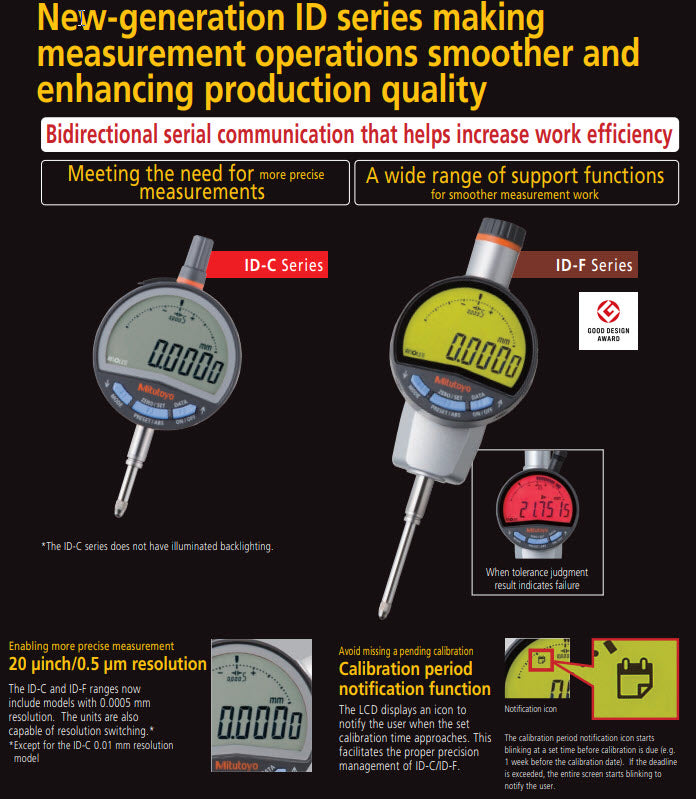

This is a multifunction standard indicator that is reliable and easy to use.

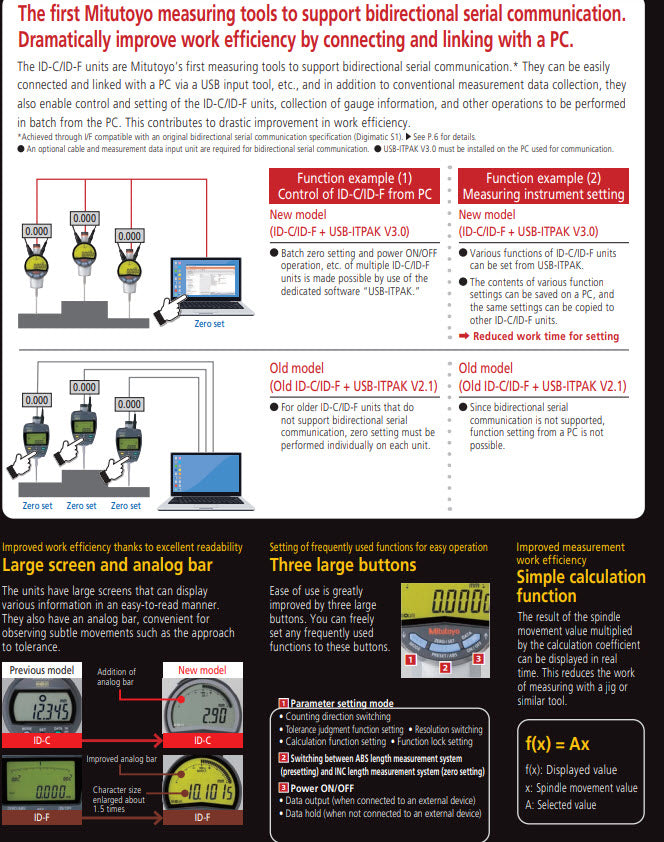

Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
Excellent visibility with a large digital/analog display.
Model with 0,5 µm digital step is available.
Measurements such as simple calculation and peak detection are possible.

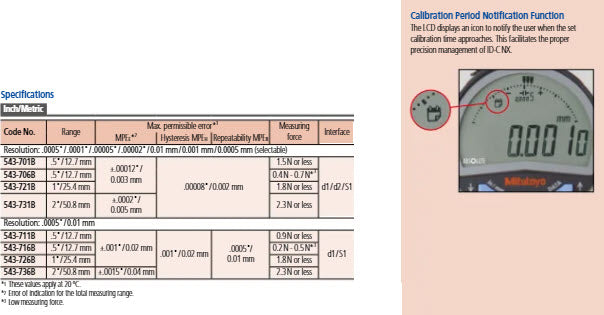

Equipped with a calibration schedule warning function.
GO/±NG judgement is performed by setting the upper and lower tolerances.
Display 330° rotatable.
A function lock protects the display against unauthorised use.

Range: 0-12.7mm (0-0.5″)
Selectable Resolution: 0.01/0.001mm (0.0005″/0.0001″/0.00005″)
Accuracy: ± 0.003mm (0.0001″)
Hysteresis: 0.002mm (0.0001″)
Repeatability: 0.002mm (0.0001″)
Measuring Force: 1.5N or less
Stem diameter: 8mm
Contact point: Carbide ball, thread: M 2.5 x 0.45 mm
Scale: Capacitance type, ABSOLUTE linear encoder
Shockproof

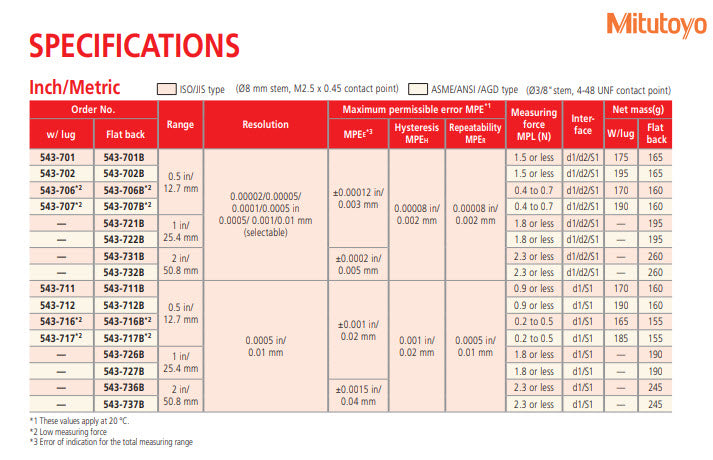

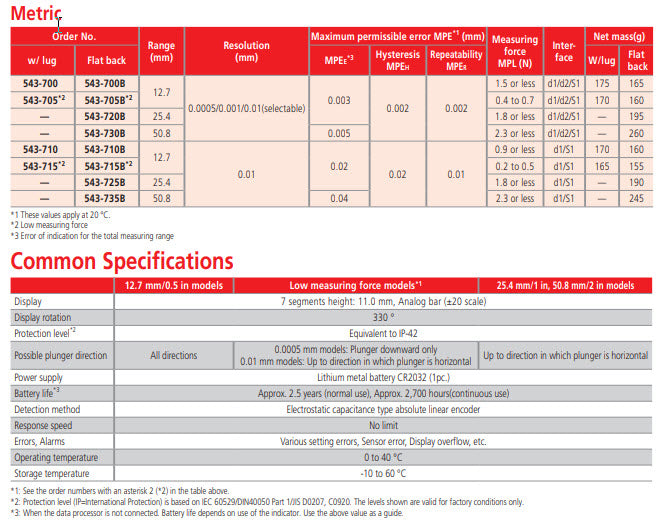

Product Information
Part Number	543-701
Measuring Range	0-12.7mm (0-0.5″)
Resolution	0.01/0.001mm (0.0005″/0.0001″/0.00005″)
Accuracy	.003mm
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	IP42
Measuring Force	≤1.5N
Type	Digital Indicator ID-C
Repeatability	.002mm/.00008"
Dial Face Size Ø	59mm
Hysteresis	.002mm/.00008"
Stem	8mm
Back	Centre Lug Back
Power Supply	CR2032 Battery
Calibration Code	CAL16 B1
Product Description	Standard Indicator with Lug Back
Resolution/Capacity	0.01/0.001mm (0.0005″/0.0001″/0.00005″)
