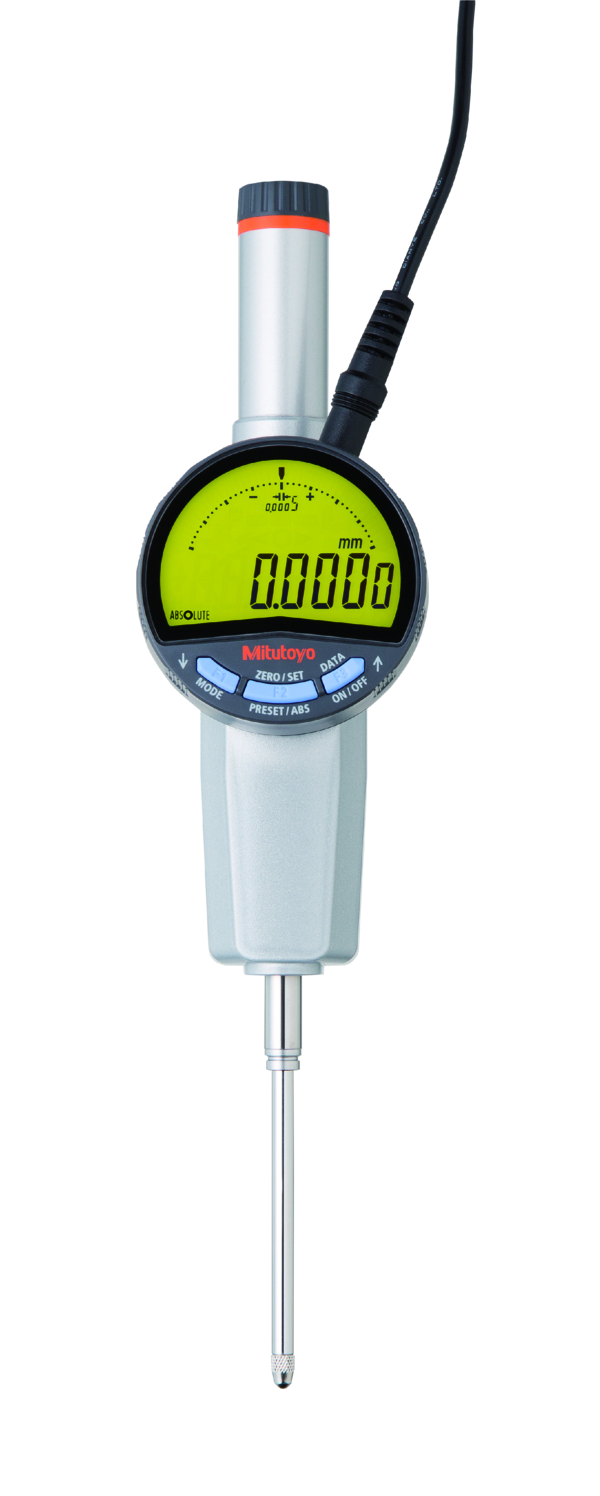

- Bidirectional Digimatic S1 interface
- Red/Green LCD backlight provides you with visual GO/±NG tolerance judgement
- Analogue bar-graph display
- MAX/MIN/RANGE (runout value) function with a frequency of 500scan/s
- External power supply via AC-Adapter
- Range: 0-50.8mm
- Switchable resolution: 0.0005mm/0.001mm/0.01mm
- Accuracy: ± 0.004mm
- Hysteresis: 0.002mm
- Repeatability: 0.002mm
- Scale: Electrostatic capacitance type absolute linear encoder
- Max response speed: Unlimited
- Stem diameter: 8mm
- Contact point: Carbide ball, M2.5×0.45 thread
- Dust/liquid protection: IP30
- Digimatic data output
- Counting direction switchable
- EN ISO Standard type
- Metric
- UK Plug
