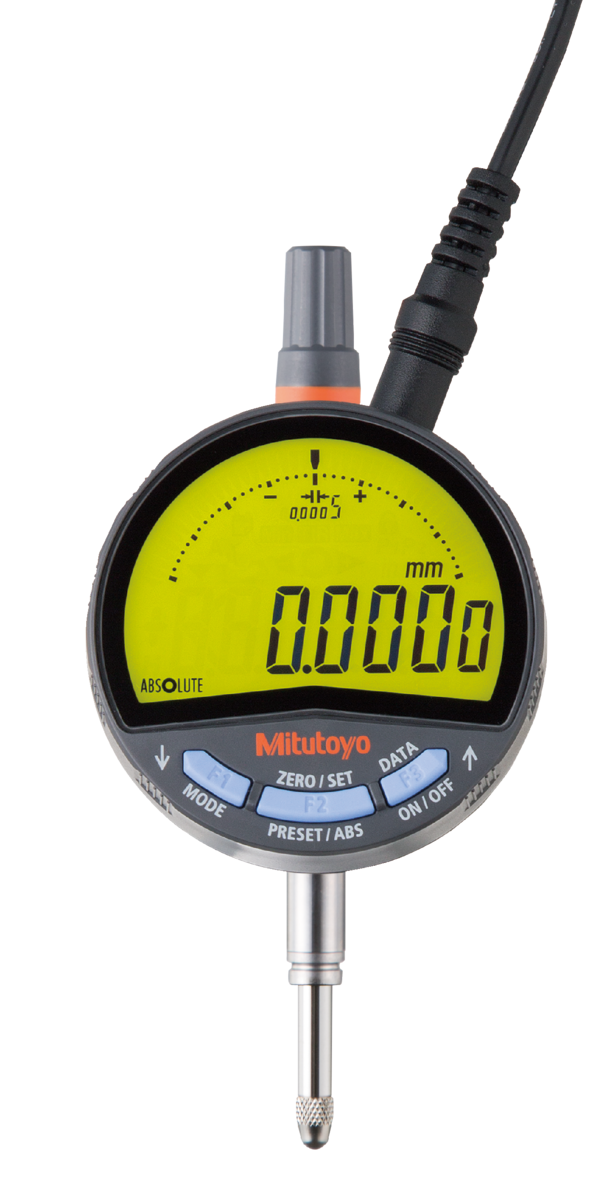

Digital Indicator ID-F 543-855-D Red/Green LCD backlight provides you with visual GO/±NG tolerance judgement

Roll over image to zoom in Click on image to zoom

Digital Indicator ID-F 543-855-D Red/Green LCD backlight provides you with visual GO/±NG tolerance judgement

Name: Digital Indicator ID-F 543-855-D Red/Green LCD backlight provides you with visual GO/±NG tolerance judgement
Brand: Mitutoyo
SKU: 543-855-D
Price: 447.0 GBP
Availability: InStock

MitutoyoSKU: 543-855-D

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£447.00 £612.00

Quantity:

All prices exclude VAT, which will be added at checkout.

The ABSOLUTE Digimatic Indicator ID-F offers you the following benefits:

Bidirectional Digimatic S1 interface
Red/Green LCD backlight provides you with visual GO/±NG tolerance judgement
Analogue bar-graph display
MAX/MIN/RANGE (runout value) function with a frequency of 500 times/s
External power supply via AC-Adapter
High accuracy and 0,5 µm digital step

Digital/Analog:	Digital
Inch-Metric:	Metric
Range:	12.7 mm
Digital step:	0.0005 mm/0.001 mm/0.01 mm
Max. Permissible Error E MPE (Total Range):	0.0025 mm

Product Information
Part Number	543-855-D
Measuring Ranges	0-12.7mm
Resolution	0.0005mm/0.001mm/0.01mm
Accuracy	.0025mm
Unit of Measurement	Metric
Data Output	Yes
Measuring Force	1.8N
Type	Digital Indicator ID-F
Repeatability	.002mm
Hysteresis	.002mm
Stem	8mm
Product Description	Red/Green LCD backlight provides you with visual GO/±NG tolerance judgement
