Digital Indicator High Accuracy ID-H, 30.4mm/1.2", BS AC-Adapter, .0005mm/.00002" 543-562

MitutoyoSKU: 543-562E
List price: £803.00 Offer price: £586.00 Excluding VAT

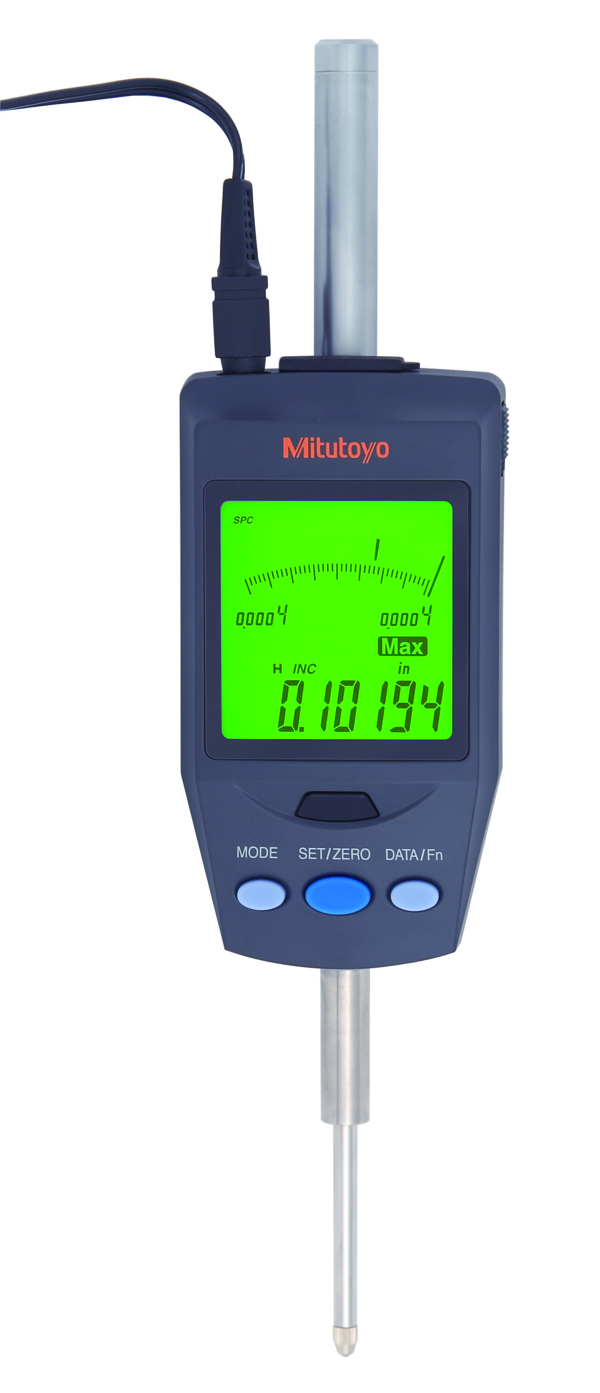

A Mitutoyo back-lit screen type digital indicator, mains-powered. Extensive functionality includes an analogue bar scale, switchable extra-high resolution, colour-coded tolerance judgement, Max/Min data hold, Runout measurement and function lock. Digimatic data output.

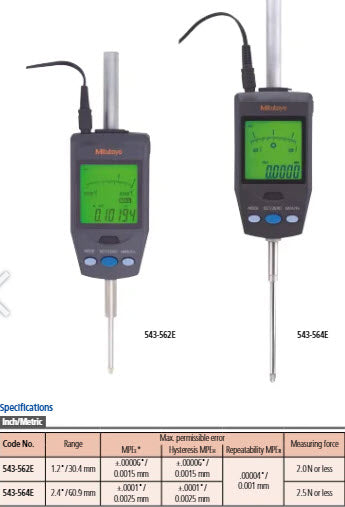

Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Functions:
ANSI/AGD type
Delivered:
Including AC-Adapter, spindle lifting handle, certificate of inspection
Range:
1.2"/30.4 mm
Digital step:
0.00002"/0.00005"/0.0001"/0.0005 mm/0.001 mm
Max. Permissible Error
E MPE (Total Range):
±0.00006"/0.0015 mm
H MPE (Hysteresis):
0.00006"/0.0015 mm
R MPE (Repeatability):
0.00004"/0.001 mm
Measuring force MPL:
?2 N
Protection:
IP30
Display:
LCD with red/green backlight, character height 9.5 mm
Max. response speed:
1000 mm/s
Alarm:
Counting value composition error, overflow error, tolerance setting error
Stem ?:
9.52 mm
Contact point:
Carbide ball, thread: No.4-48UNF
Power supply:
AC adapter 6 V DC, 2A
Remarks:
RS-232 input / output is applicable with appropriate connecting cable (1m: 21EAA130 or 2m: 21EAA131)
DATA/HOLD:
Yes
Digimatic data output:
Yes
ON/OFF:
Yes
Analog bar resolution switchable:
Yes
Function lock:
Yes
GO/±NG judgement:
Yes
RS-232C Output/Input:
Yes
RS-232C Input*:
Yes
ZERO SET:
Yes
Selectable resolution:
Yes
Counting direction switchable:
Yes
Inch/Metric switchable:
Yes
Digital Scale:
Photoelectric linear encoder

No technical information is currently available.

No application information is currently available.

Product Documents

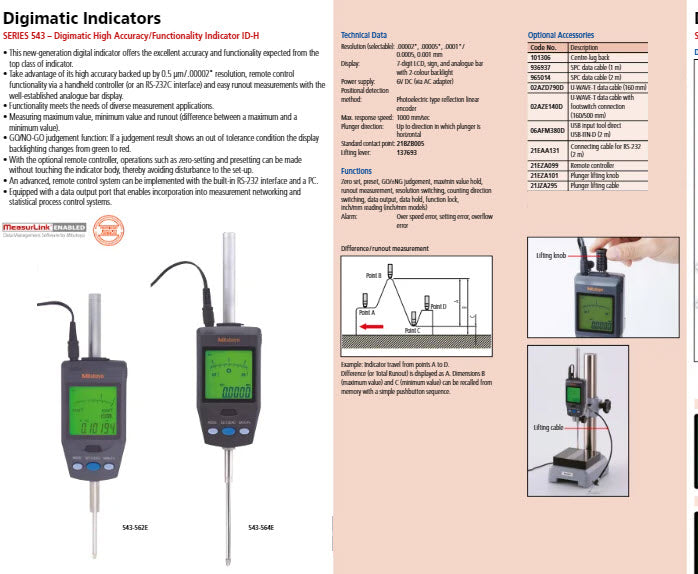

Product Document Digital Indicator High Accuracy ID-H, 30.4mm/1.2", BS AC-Adapter, .0005mm/.00002" 543-562 Click to open the PDF document
