Digital Indicator ID-N, IP66 12.7mm/0.5" .01/.0005" 543-571

Roll over image to zoom in Click on image to zoom

Digital Indicator ID-N, IP66 12.7mm/0.5" .01/.0005" 543-571

Name: Digital Indicator ID-N, IP66 12.7mm/0.5" .01/.0005" 543-571
Brand: Mitutoyo
SKU: 543-571
Price: 189.0 GBP
Availability: InStock

MitutoyoSKU: 543-571

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£189.00 £259.00

Quantity:

All prices exclude VAT, which will be added at checkout.

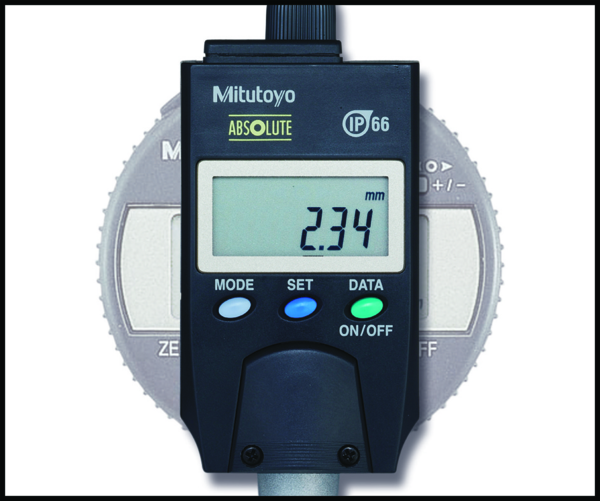

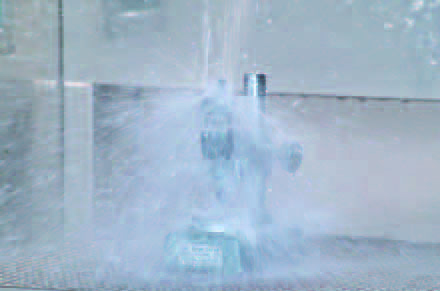

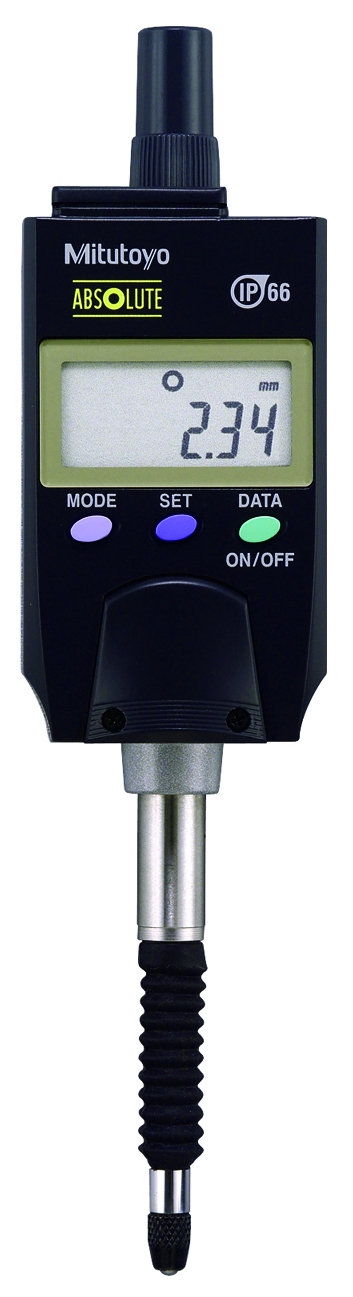

A Mitutoyo slim-style dustproof and waterproof digital indicator suitable for use in the presence of coolant or cutting oil. ABSOLUTE System scale for error free, high-speed measurement. Functionality includes switchable resolution, tolerance judgement, data hold and readout rotation. SPC data output.

Specification

Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Functions:	ANSI/AGD type
Delivered:	Including SR44 battery, certificate of inspection
Range:	0.5"/12.7 mm
Digital step:	0.0005"/0.01 mm
Max. Permissible Error E MPE (Total Range):	±0.001"/0.02 mm
Resolution:	0.0005 inch / 0.01 mm
H MPE (Hysteresis):	0.001"/0.02 mm
R MPE (Repeatability):	0.0005"/0.01 mm
Measuring force MPL:	≤2.5 N
Protection:	IP66
Type:	ASME/ANSI/AGD Standard
Measuring force:	≤2,5 N N
Mass:	130 g
Display:	LCD, character height: 6.2 mm
Max. response speed:	Unlimited
Alarm:	Low voltage, counting value composition error, overflow error, tolerance limit setting error
Stem ∅:	9.52 mm
Contact point:	Carbide ball, thread: No.4-48UNF
Power supply:	1 battery SR44
Battery life:	Approx. 7000 hours
DATA/HOLD:	Yes
Digimatic data output:	Yes
ON/OFF:	Yes
GO/±NG judgement:	Yes
External PRESET / ZERO:	Yes
Counting direction switchable:	Yes
Inch/Metric switchable:	Yes
Digital Scale:	Electrostatic capacitance type absolute linear encoder

Product Information
Part Number	543-571
Measuring Ranges	12.7mm/0.5"
Resolution	.01mm/.0005"
Unit of Measurement	Metric Inch
Data Output	Yes
IP Rating	IP66
Measuring Force	≤2.5N
Repeatability	.01mm/.0005"
Hysteresis	.02mm/.001"
Stem	8mm
Manufacturer	Mitutoyo
