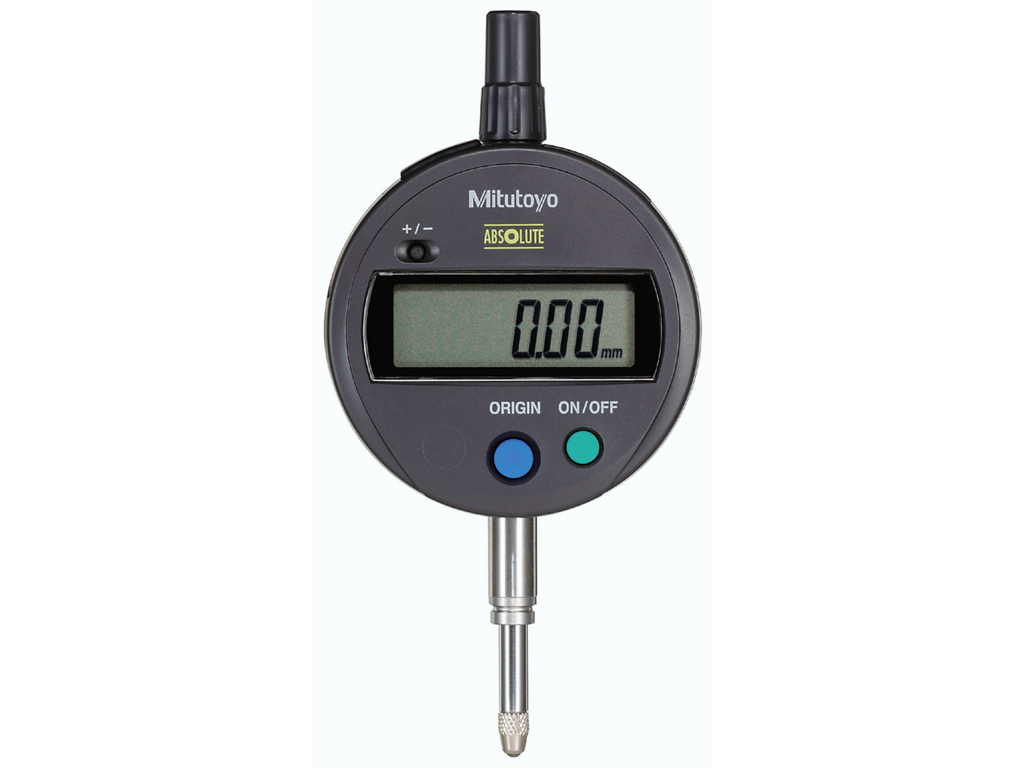

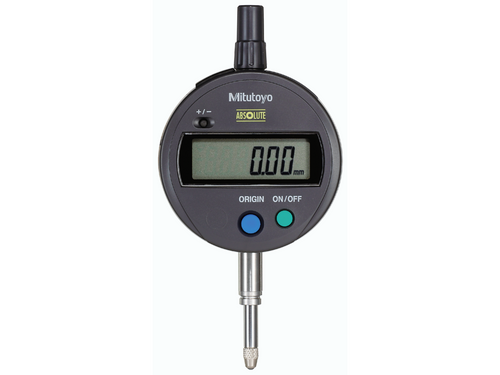

Digital Indicator ID-S 12,7mm, 0,01mm, Flat Back Plate 543-781B-10

Digital Indicator ID-S

This is a standard model of indicator that is reliable and easy to use.
The ABSOLUTE Digimatic Indicator ID-S offers you the following benefits:

• The ABSOLUTE sensor means you don‘t have to carry out the origin setting every time you power it on, saving you time and hassle.
• You can access all functions by using the large, user-friendly
• buttons on the front of the indicator.
• A large character height of 9 mm provides good readability.
• Exceptional battery life.

Specification

• Digital/Analog: Digital
• Inch-Metric: Metric
• Range: 12.7 mm
• Digital step: 0.01 mm
• Max. Permissible Error
• E MPE (Total Range): 0.02 mm
• H MPE (Hysteresis): 0.02 mm
• R MPE (Repeatability): 0.01 mm
• Measuring force MPL: ?1.5 N
• Protection: IP42
• Type: EN ISO Standard
• Mass: 140 g
• Scale: Electrostatic capacitance type absolute linear encoder
• Display: LCD, character height 9 mm
• Max. response speed: Unlimited
• Alarm: Low voltage, sensor error, ABS data composition error
• Stem ?: 8 mm
• Contact point: Carbide ball, thread: M2.5x0.45
• Power supply: 1 battery SR44
• Battery life: Approx. 18000 hours (0.001 mm type), approx. 20000 hours (0.01 mm type) Remarks:
• This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required.
• Digimatic data output: Yes
• ON/OFF: Yes
• ORIGIN (ABS-Zero): Yes
• Counting direction switchable: Yes
