| Digital/Analog: |
Digital
|
| Inch-Metric: |
Inch/Metric
|
| Delivered: |
Including SR44 battery, certificate of inspection
|
| Range: |
0.5"/12.7 mm
|
| Digital step: |
0.0005"/0.01 mm
|
Max. Permissible Error
E MPE (Total Range): |
±0.001"/0.02 mm
|
| H MPE (Hysteresis): |
0.001"/0.02 mm
|
| R MPE (Repeatability): |
0.0005"/0.01 mm
|
| Measuring force MPL: |
≤1.5 N
|
| Protection: |
IP42
|
| Type: |
EN ISO Standard
|
| Mass: |
140 g
|
| Display: |
LCD, character height 9 mm
|
| Max. response speed: |
Unlimited
|
| Alarm: |
Low voltage, sensor error, ABS data composition error
|

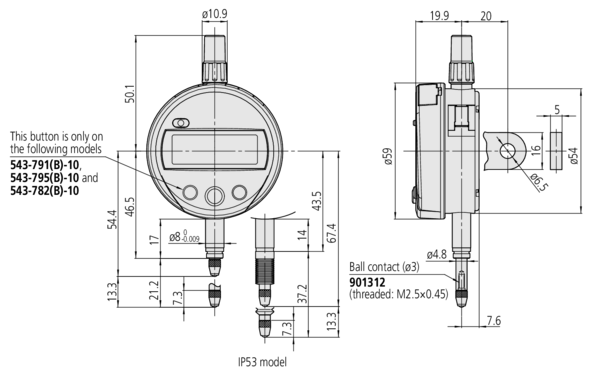

| Stem ∅: |
8 mm
|
| Contact point: |
Carbide ball, thread: M2.5x0.45
|
| Power supply: |
1 battery SR44
|
| Battery life: |
Approx. 18000 hours (0.001 mm type),
approx. 20000 hours (0.01 mm type)
|
| Remarks: |
This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required.
|
| Digimatic data output: |
Yes
|
| ON/OFF: |
Yes
|
| ORIGIN (ABS-Zero): |
Yes
|
| Counting direction switchable: |
Yes
|
| Inch/Metric switchable: |
Yes
|
| Digital Scale: |
Electrostatic capacitance type absolute linear encoder
|
