MitutoyoSKU: 575-123
Price:
£148.00 £203.00

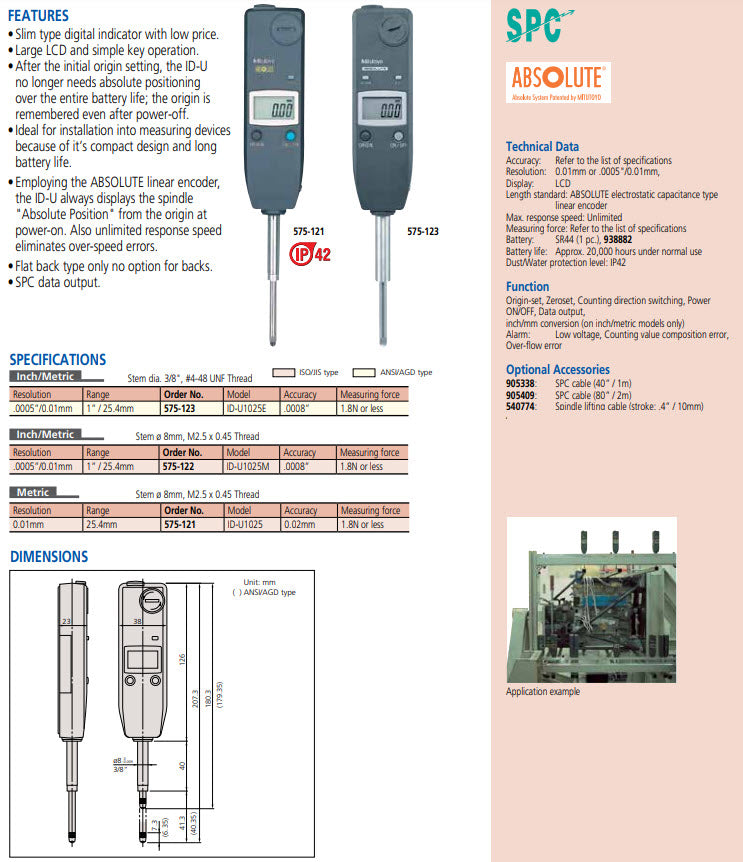

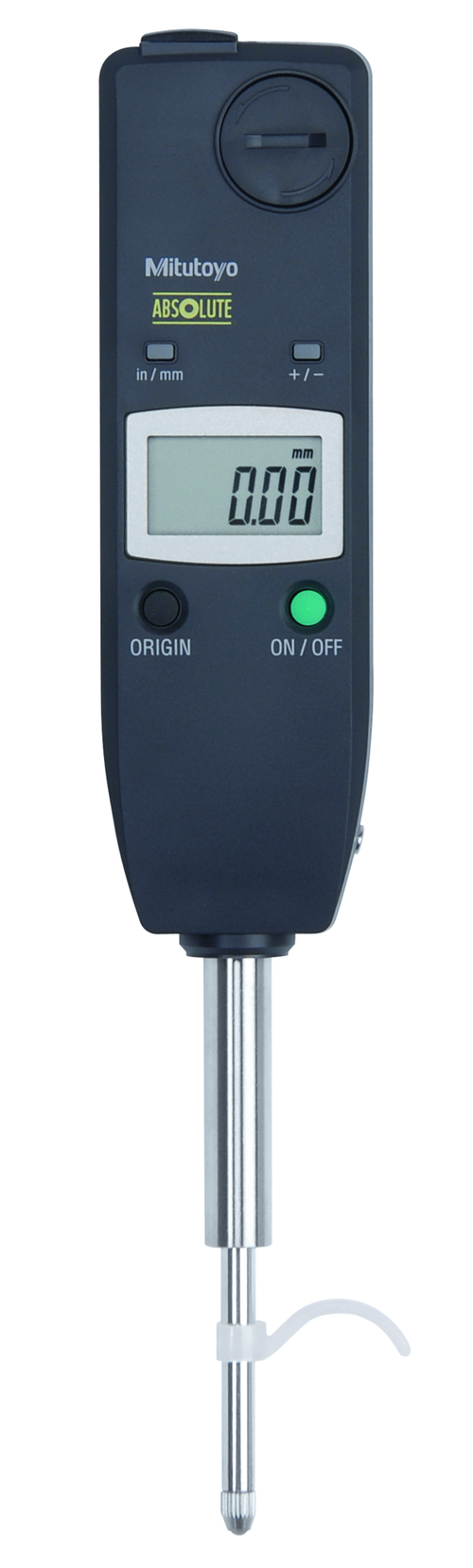

An economical, slim-style Mitutoyo digital indicator with a long battery life suited to installation in measuring jigs. ABSOLUTE System scale for error free, high-speed measurement. SPC data output.
Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Delivered:
In a box with SR44 battery and spindle lifting handle 137693
Range:
1"/25.4 mm
Digital step:
0.0005"/0.01 mm
Max. Permissible Error
E MPE (Total Range):
±0.001"/0.02 mm
H MPE (Hysteresis):
0.001"/0.02 mm
R MPE (Repeatability):
0.0005"/0.01 mm
Measuring force MPL:
?1.8 N
Protection:
IP42
Type:
ASME/ANSI/AGD Standard
Measuring force:
? 1,5 N
Mass:
140 g
Display:
LCD, character height 8.5 mm
Max. response speed:
Unlimited
Alarm:
Low voltage, sensor error, ABS data composition error
Stem ?:
9.52 mm
Contact point:
Carbide ball, thread: No.4-48UNF
Power supply:
1 battery SR44
Battery life:
Approx. 20000 hours
Remarks:
This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required.
Digimatic data output:
Yes
ON/OFF:
Yes
ORIGIN (ABS-Zero):
Yes
Counting direction switchable:
Yes
Inch/Metric switchable:
Yes
Digital Scale:
Electrostatic capacitance type absolute linear encoder
