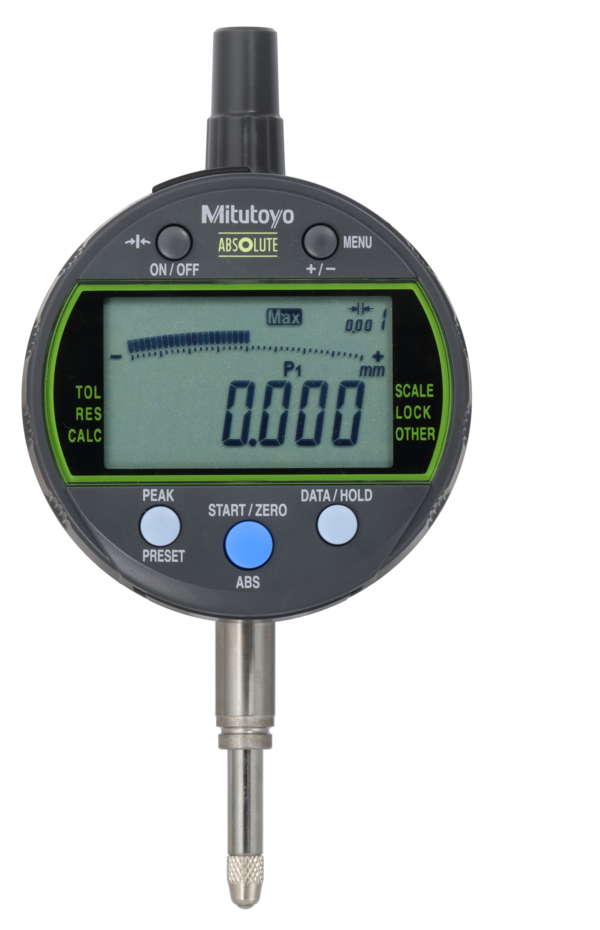

Digital Indicator, Peak Hold ID-C 12,7mm, 0,001mm, Lug Back Plate 543-300-10

Mitutoyo; Digital Dial Gauge

This indicator is the MAX/MIN/RANGE value holding function model

It offers the following benefits:

• The MAX/MIN/RANGE (run-out value) can be measured.
• A fast measurement frequency mode(detection cycle 20 ms or 50 times/s) is selectable to measure in the peak detection mode (MAX/MIN/RANGE) more reliably.
• Easy indicator setup via a setup menu.
• Analogue bar graph in the display (12 different scales switchable).
• GO/±NG tolerance judgement function.
• This indicator enables the use of a calculation function for the measured value Ax.
• Coefficient A is freely definable and x = displacement of the plunger.
• A USB interface box can be used to set up the indicator from PC via dedicated software.

All images are for representation only.
