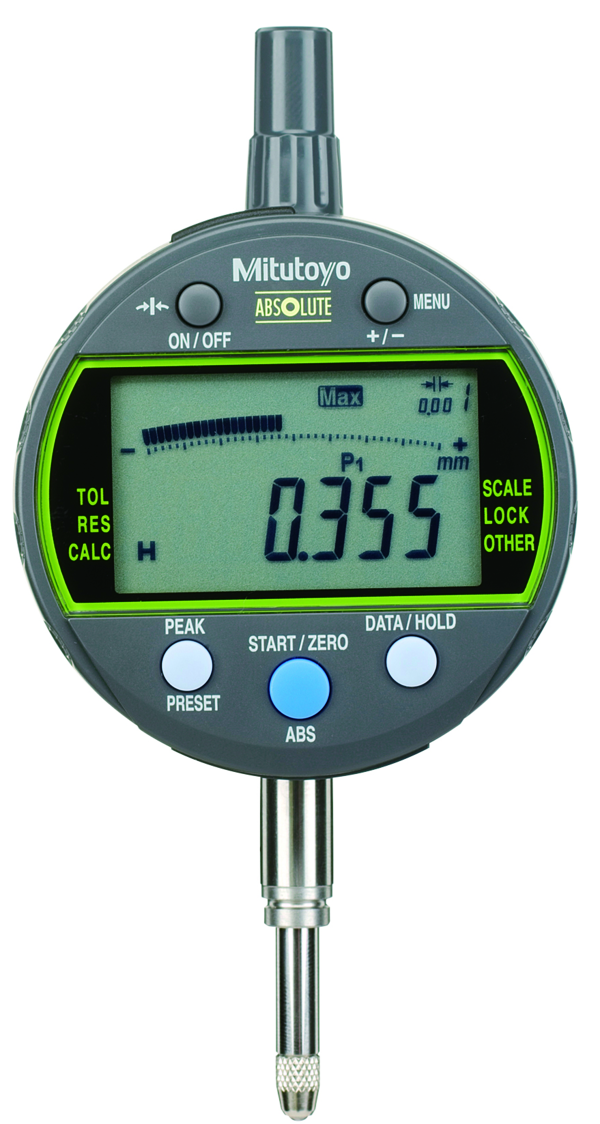

Digital Indicator, Peak Hold ID-C 543-300B-10

Name: Digital Indicator, Peak Hold ID-C 543-300B-10
Brand: Mitutoyo
SKU: 543-300B-10
Price: 320.6 GBP
Availability: InStock

MitutoyoSKU: 543-300B-10

All prices exclude VAT, which will be added at checkout.

Price:

£320.60 £458.00

Quantity:

This indicator is the MAX/MIN/RANGE value holding function model

It offers the following benefits:

The MAX/MIN/RANGE (run-out value) can be measured.
A fast measurement frequency mode(detection cycle 20 ms or 50 times/s) is selectable to measure in the peak detection mode (MAX/MIN/RANGE) more reliably.
Easy indicator setup via a setup menu.
Analogue bar graph in the display (12 different scales switchable).
GO/±NG tolerance judgement function.
This indicator enables the use of a calculation function for the measured value Ax.
Coefficient A is freely definable and x = displacement of the plunger.
A USB interface box can be used to set up the indicator from PC via dedicated software.

All images are for representation only.
