MitutoyoSKU: 543-301B-10
List price: £477.00 Offer price: £348.00 Excluding VAT

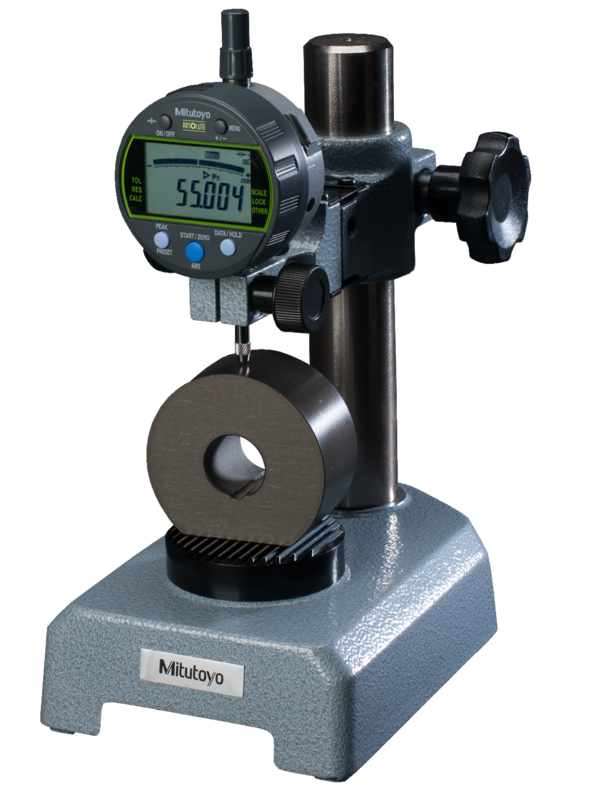

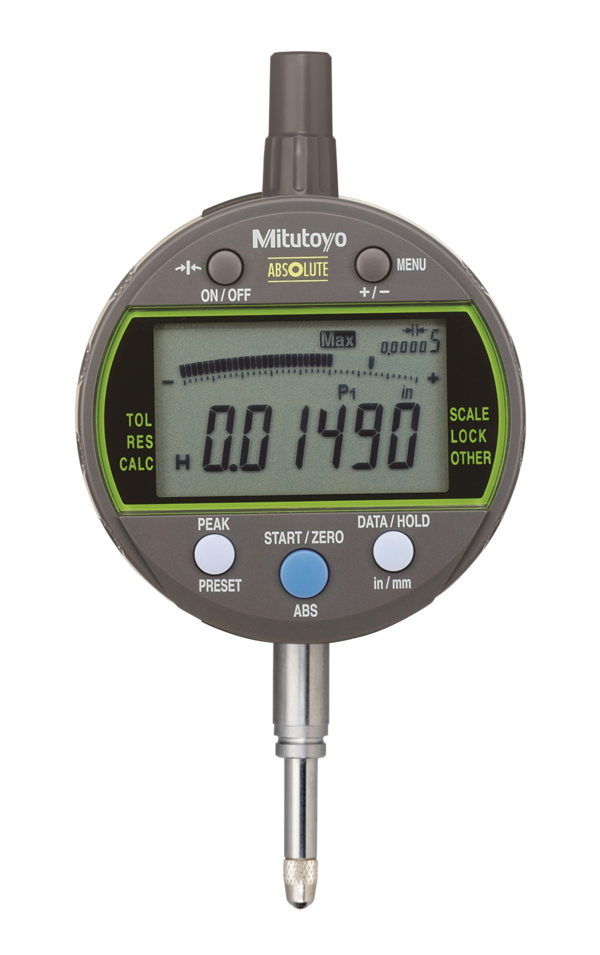

This indicator is the MAX/MIN/RANGE value holding function model

It offers the following benefits:

  • The MAX/MIN/RANGE (run-out value) can be measured.
  • A fast measurement frequency mode(detection cycle 20 ms or 50 times/s) is selectable to measure in the peak detection mode (MAX/MIN/RANGE) more reliably.
  • Easy indicator setup via a setup menu.
  • Analogue bar graph in the display (12 different scales switchable).
  • GO/±NG tolerance judgement function.
  • This indicator enables the use of a calculation function for the measured value Ax.
  • Coefficient A is freely definable and x = displacement of the plunger.

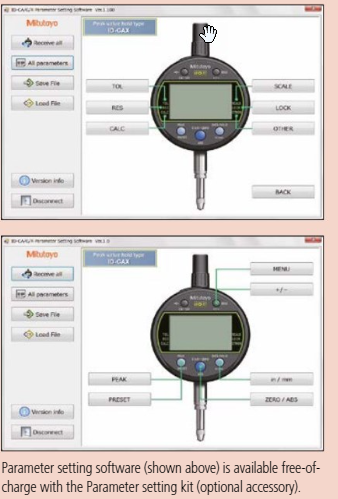

  • A USB interface box can be used to set up the indicator from PC via dedicated software.

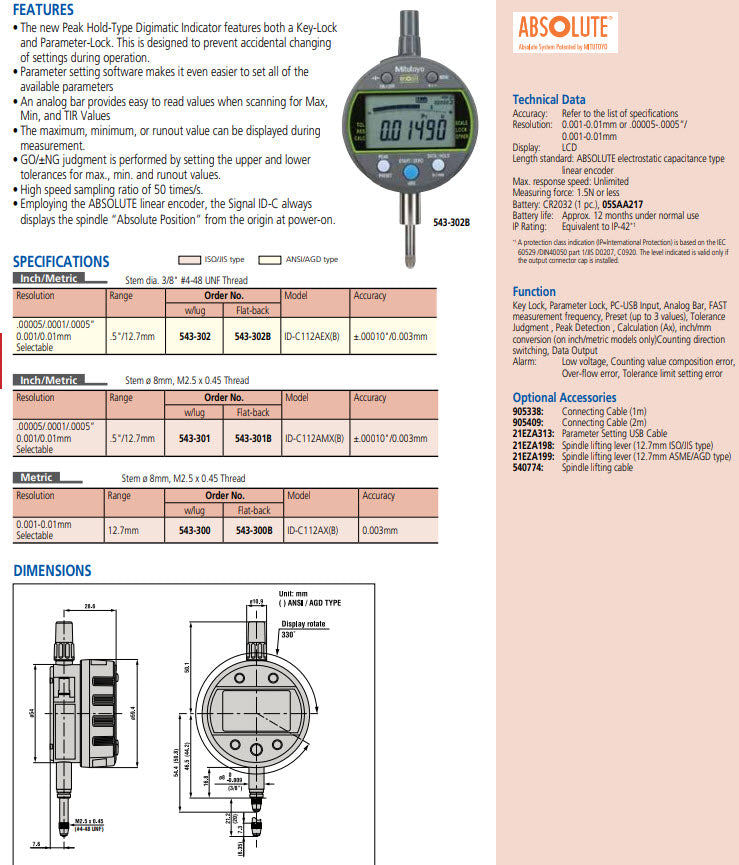

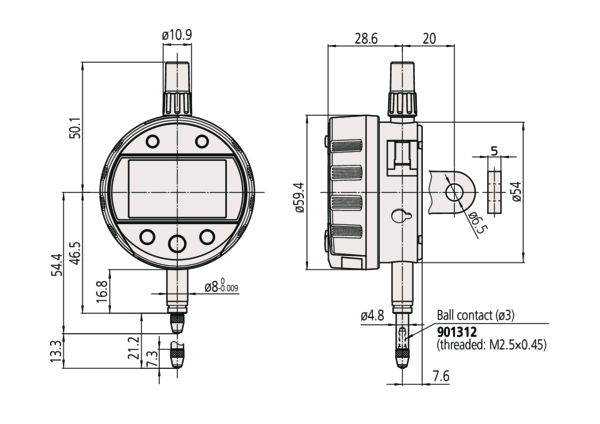

Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Delivered:
Including CR2032 battery, certificate of inspection
Range:
0.5"/12.7 mm
Digital step:
0.00005"/0.0001"/0.0005"/0.001 mm/0.01 mm
Max. Permissible Error
E MPE (Total Range):
±0.0001"/0.003 mm
H MPE (Hysteresis):
0.0001"/0.002 mm
R MPE (Repeatability):
0.0001"/0.002 mm
Measuring force MPL:
?1.5 N
Protection:
IP42
Type:
EN ISO Standard
Mass:
170 g
Display:
LCD, character height 8 mm, 330° rotatable
Max. response speed:
Unlimited
Measurement frequency (MAX/MIN/RANGE):
Standard mode: 10 times/s
fast mode: 50 times/s
(plunger speed max. 50 µm/s for peak measurement)
Alarm:
Low voltage, ABS composition error, overflow error, setting error
Stem ?:
8 mm
Contact point:
Carbide ball, thread: M2.5x0.45
Power supply:
1 battery CR2032
Battery life:
Standard mode: approx. 1 year
fast mode: approx. 4.5 month
DATA/HOLD:
Yes
PRESET 3x:
Yes
Digimatic data output:
Yes
ON/OFF:
Yes
Analog bar resolution switchable:
Yes
Function lock:
Yes
GO/±NG judgement:
Yes
Fast measurement mode:
Yes
ABS / INC (INC ZERO):
Yes
Calculation function (with formula):
Yes
Counting direction switchable:
Yes
Inch/Metric switchable:
Yes
Digital Scale:
Electrostatic capacitance type absolute linear encode
