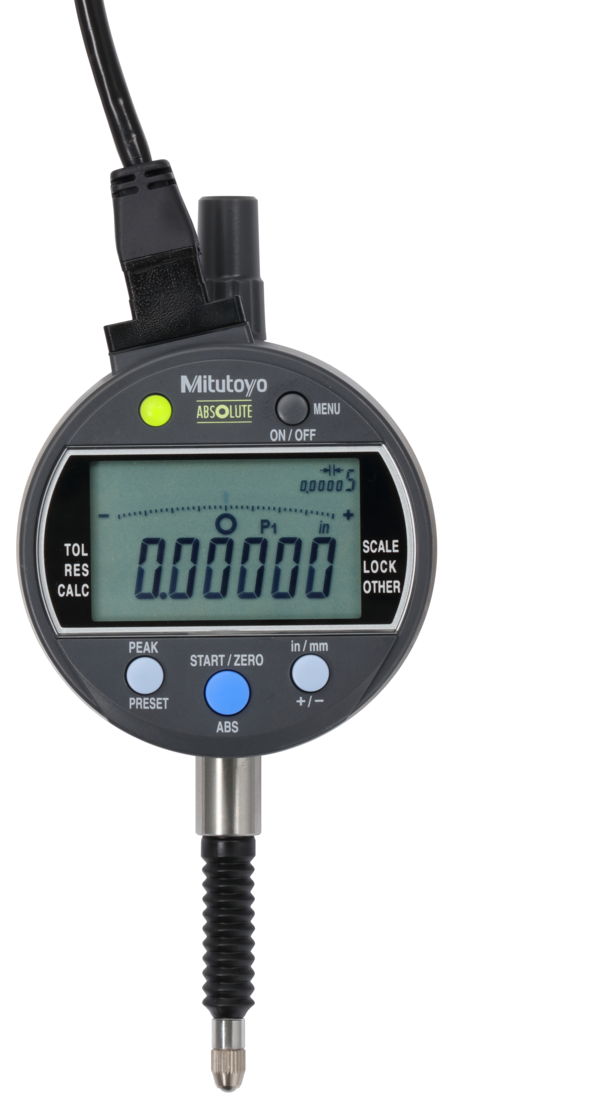

Digital Indicator, Signal ID-C 543-352-10

This is an externally-powered Digimatic Indicator with a N-ch open drain –NG, OK, +NG output.

• Dust-protected and protected against splashing water, complying with IEC 60529 (equivalent to IP54)
• Measures MAX/MIN/RANGE (run-out value).
• Saves three different Preset and Tolerance settings.
• Fast measurement frequency mode (detection cycle 50 times/s) for reliable measurement in the peak detection mode (MAX/MIN/RANGE)
• Calculation function Ax. Coefficient A freely definable, x = displacement of the plunger
• Analogue bar graph in the display (12 different scales switchable)
• GO/±NG tolerance judgment function
