- Integrated tolerance function with clear representation.
- Manufactured after the RoHS guideline on the restriction of dangerous materials in electrical appliances.
- MarConnect data communication over USB, Opto RS232C or Digimatic.
- USB direct data output.
- Large 11mm digit display, tolerance, preset, and Go/NoGo display.
- Button lockout feature, ABS zero set, on/off, inch/metric.
| Brand | MAHR FEDERAL |
|---|---|
| Stem | 3/8" |
| Measuring Range | 0 - 1"/25mm |

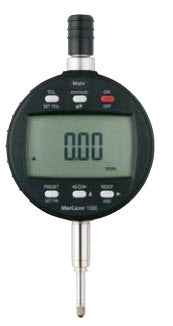

| Type | MarCator 1086 USB Indicator |
| Data Output | USB direct data output. |
| Display Type | Large 11mm digit display, tolerance, pre-set, and Go No Go |
| Prop. 65 | Yes |
| Repeatability | .0005" |
| Resolution | .0005"/.01mm |
| Country of Origon | Germany |
No technical information is currently available.
No application information is currently available.
