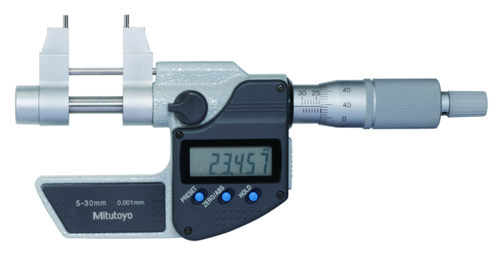

Mitutoyo Digital Inside Microm. Inch/Metric, 0,2-1,2" 345-350-30

MitutoyoSKU: 345-350-30

List price: Regular price£704.00 Offer price: Sale price£493.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
UKAS Calibration of Plain Rings Parallel Diameter ONLY > 0.4 ? 4"
£25.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Please check before engraving: New gauges engraved to your requirements cannot be returned for credit if ordered incorrectly or no longer required. Please confirm the gauge specification and marking details before ordering. This does not affect your rights if the goods are faulty or incorrectly supplied.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10
Part number: 156-101-10  → View product
Mitutoyo Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10
Part number: 156-105-10  → View product
U-WAVE fit, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-622
Part number: 264-622  → View product
U-WAVE fit Bluetooth, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-626
Part number: 264-626  → View product
U-WAVE fit, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-623
Part number: 264-623  → View product
U-WAVE fit Bluetooth, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-627
Part number: 264-627  → View product
Mitutoyo Connection Unit IP Caliper, Micrometer U-WAVE fit, U-WAVE fit Bluetooth 02AZF310
Part number: 02AZF310  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA662
Part number: 05CZA662  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA663
Part number: 05CZA662  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380B
Part number: 06AFM380B  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
Setting Ring 20mm 177-286
Part number: 177-286  → View product
The Digimatic Inside Micrometer offers you the following benefits:
  • Carbide measuring faces
  • A setting standard (optional) is needed to accurately set the micrometer to the reference point.
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Range:
0.2 - 1.2 "
Digital step:
0,00005"/0,001 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Display:
LCD, character height 7.5 mm
Measuring spindle:
With spindle lock, spindle pitch 0,635 mm
Measuring face:
Carbide tipped
Measuring force:
1-6 N
Power supply:
1 battery SR-44
Battery life:
2,4 years
Delivered:
Including box, key, 1 battery.
DATA/HOLD:
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
2 x PRESET:
Yes
Delivered:
Including box, spanner, 1 SR44 battery, without setting standard
Data output:
Yes
Mass:
305 g

No technical information is currently available.

No application information is currently available.
