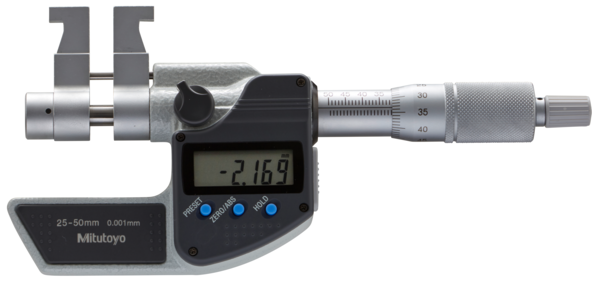

Name: Mitutoyo Digital Inside Micrometer. 345-351-30 Range 25.4-50.8mm/1-2"
Brand: Mitutoyo
SKU: 345-351-30
Price: 618.0 GBP
Availability: InStock

Mitutoyo Digital Inside Micrometer. 345-351-30 Range 25.4-50.8mm/1-2"

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

The Digimatic Inside Micrometer offers you the following benefits:

Carbide measuring faces

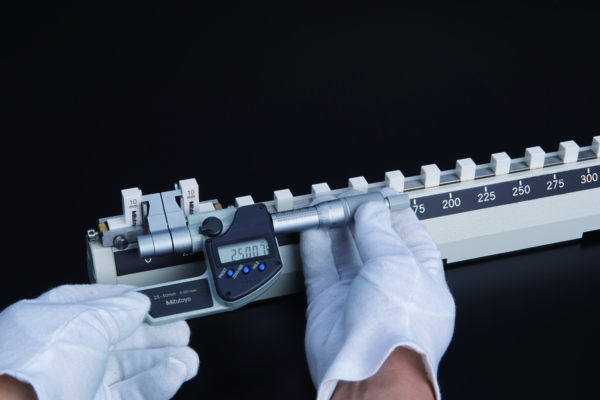

A setting standard (optional) is needed to accurately set the micrometer to the reference point.

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital Inside Micrometer. 345-351-30 Range 25.4-50.8mm/1-2" Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Expert Advice

Experienced engineers helping you select the correct measuring solution.

✔️

UKAS Calibration

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation & Training

Installation, commissioning and operator training available.

🤝

After Sales Support

Technical support, servicing, repairs and ongoing customer care.

Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Range:	1 - 2 "
Digital step:	0,00005"/0,001 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Display:	LCD, character height 7.5 mm
Measuring spindle:	With spindle lock, spindle pitch 0,635 mm
Measuring face:	Carbide tipped
Measuring force:	1-6 N
Power supply:	1 battery SR-44
Battery life:	2,4 years
Delivered:	Including box, key, 1 battery.
DATA/HOLD:	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
2 x PRESET:	Yes
Delivered:	Including box, spanner, 1 SR44 battery, without setting standard
Data output:	Yes
Mass:	310 g
