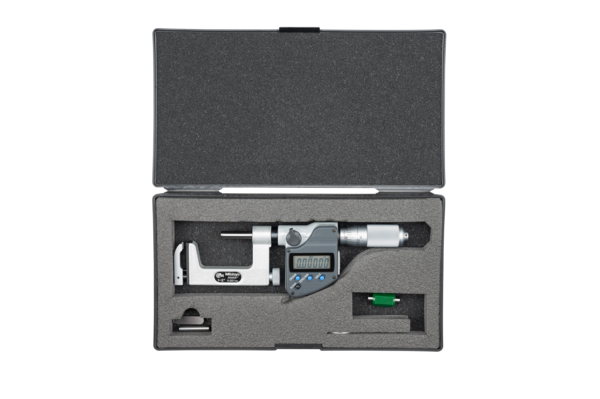

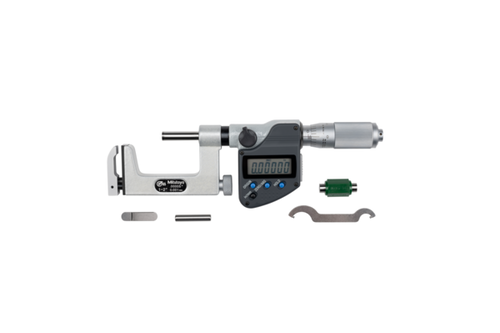

Mitutoyo Digital Interchangeable Anvil Micrometer Inch/Metric, 25-50mm/1-2", IP65 317-352-30
Mitutoyo Digital Interchangeable Anvil Micrometer Inch/Metric, 25-50mm/1-2", IP65 317-352-30
Mitutoyo Digital Interchangeable Anvil Micrometer Inch/Metric, 25-50mm/1-2", IP65 317-352-30
Mitutoyo Digital Interchangeable Anvil Micrometer Inch/Metric, 25-50mm/1-2", IP65 317-352-30
Mitutoyo Digital Interchangeable Anvil Micrometer Inch/Metric, 25-50mm/1-2", IP65 317-352-30
Mitutoyo Digital Interchangeable Anvil Micrometer Inch/Metric, 25-50mm/1-2", IP65 317-352-30
Mitutoyo Digital Interchangeable Anvil Micrometer Inch/Metric, 25-50mm/1-2", IP65 317-352-30
Mitutoyo Digital Interchangeable Anvil Micrometer Inch/Metric, 25-50mm/1-2", IP65 317-352-30
Roll over image to zoom in Click on image to zoom
Mitutoyo Digital Interchangeable Anvil Micrometer Inch/Metric, 25-50mm/1-2", IP65 317-352-30Mitutoyo Digital Interchangeable Anvil Micrometer Inch/Metric, 25-50mm/1-2", IP65 317-352-30Mitutoyo Digital Interchangeable Anvil Micrometer Inch/Metric, 25-50mm/1-2", IP65 317-352-30Mitutoyo Digital Interchangeable Anvil Micrometer Inch/Metric, 25-50mm/1-2", IP65 317-352-30Mitutoyo Digital Interchangeable Anvil Micrometer Inch/Metric, 25-50mm/1-2", IP65 317-352-30Mitutoyo Digital Interchangeable Anvil Micrometer Inch/Metric, 25-50mm/1-2", IP65 317-352-30Mitutoyo Digital Interchangeable Anvil Micrometer Inch/Metric, 25-50mm/1-2", IP65 317-352-30Mitutoyo Digital Interchangeable Anvil Micrometer Inch/Metric, 25-50mm/1-2", IP65 317-352-30

Mitutoyo Digital Interchangeable Anvil Micrometer Inch/Metric, 25-50mm/1-2", IP65 317-352-30

MitutoyoSKU: 317-352-30
List price: £705.00 Offer price: £515.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Calibration Micrometer Setting Rod ≤ 100mm
£12.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
This Digimatic Micrometer Interchangeable Anvil Type lets you
measure a range of different features.
It offers the following benefits:
  • Measures tubing thickness, shoulder edge distance, rivet head height, etc., with interchangeable anvils (flat anvil, rod anvil, V-anvil).
Specification
Digital/Analog:
Digital
Delivered:
Including box, spanner, setting standard, flat anvil 201216, rod anvil 201379
Inch-Metric:
Inch/Metric
Range:
1 - 2 "
Digital step:
0,00005"/0,001 mm
Spindle feed error:
0.00015 inch
Flatness:
0,000024" (spindle), 0,00008" (anvil)
Parallelism:
0,00012"
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide tipped, micro-lap finish spindle and hardened steel anvil
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Power supply:
1 battery SR-44
Battery life:
Approx. 2.4 years
Content of Set:
Anvils 201379, 201216
Delivered:
Including box, setting standard (from 25 mm upward), key, 1 battery, anvils
ORIGIN:
Yes
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
Mass:
365 g

No technical information is currently available.

No application information is currently available.
