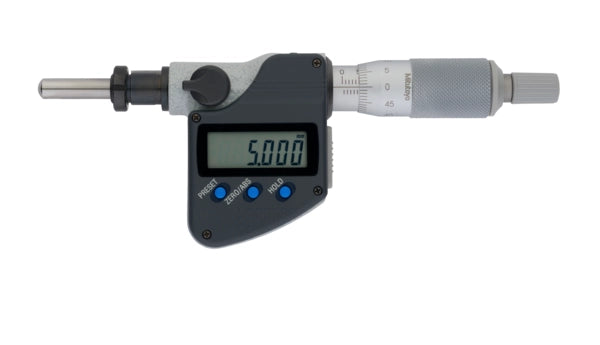

Mitutoyo Digital Micrometer Head 0-25mm, SR4 Spi., Clamp Nut, 10mm Stem 350-254-30
Mitutoyo Digital Micrometer Head 0-25mm, SR4 Spi., Clamp Nut, 10mm Stem 350-254-30
Roll over image to zoom in Click on image to zoom
Photo 1 of 2 More photos — use the arrows
Mitutoyo Digital Micrometer Head 0-25mm, SR4 Spi., Clamp Nut, 10mm Stem 350-254-30Mitutoyo Digital Micrometer Head 0-25mm, SR4 Spi., Clamp Nut, 10mm Stem 350-254-30

Mitutoyo Digital Micrometer Head 0-25mm, SR4 Spi., Clamp Nut, 10mm Stem 350-254-30

MitutoyoSKU: 350-254-30
List price: £456.00 Offer price: £333.00 Excluding VAT

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

U-WAVE fit, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-623
Part number: 264-623  → View product
U-WAVE fit Bluetooth, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-626
Part number: 264-626  → View product
U-WAVE fit, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-622
Part number: 264-622  → View product
U-WAVE fit Bluetooth, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-627
Part number: 264-627  → View product
Mitutoyo Connection Unit IP Caliper, Micrometer U-WAVE fit, U-WAVE fit Bluetooth 02AZF310
Part number: 02AZF310  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA662
Part number: 05CZA662  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA663
Part number: 05CZA662  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380B
Part number: 06AFM380B  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
This Micrometer Head has a 25 mm range and a 10 mm stem, and offers the following benefits:
  • You can integrate it into machinery and measuring instruments.
  • Measurement values are clearly displayed in 0.001mm increments.
  • Stem diameter: 10 mm.
Features
Digital/Analog:
Digital
Delivered:
Including spanner, SR44 battery
Inch-Metric:
Metric
Range:
0 - 25 mm
Digital step:
0,001 mm
Max.
Permissible Error
J MPE:
±2 µm
Spindle end:
Spherical (SR4)
Spindle pitch:
0,5 mm
Stem Ø:
10 mm mm
Stem:
w/ clamp nut
Fixture thickness for clamp nut:
11.5 mm
Display:
LCD, character Height 7.5 mm
Measuring face:
Carbide tipped
Measuring spindle:
With spindle lock, ø 6,35 mm
Scale:
Thimble and sleeve satin chrome finish
Power supply:
1 battery SR-44
Battery life:
Approx. 2,4 years
Battery life:
Approx. 2,4 years
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
2 x PRESET:
Yes
Mass:
230 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital Micrometer Head 0-25mm, SR4 Spi., Clamp Nut, 10mm Stem 350-254-30 Click to open the PDF document
