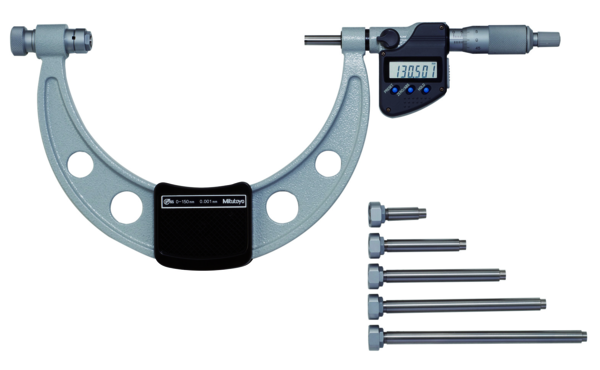

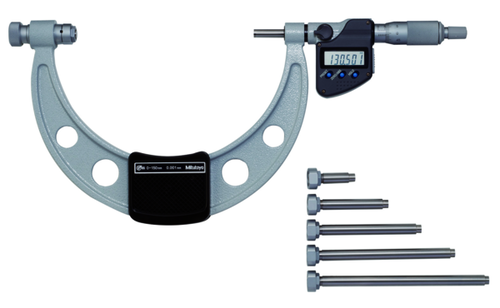

- Range: 0-152.4mm 05″)
- Accuracy: ± 0.004 + (R/75000)mm (R=max range)
- Parallelism: 0-75mm (0-3″)= 0.002mm, 75-125mm (3-5″)= 0.003mm
- Flatness: 0.0006mm (0.000024″)
- IP65 Protected: Liquid & dust resistant
- Measuring force: 5-10N
- Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
- Measuring spindle: With spindle lock, ø6.35 mm , spindle pitch 0.635mm
- Interchangeable anvils: 6
- Setting standard: 5 (25,50,75,100,125mm)
- Ratchet stop
- Inch-mm conversion
- Scale: Thimble and sleeve satin chrome finish, ø18 mm
