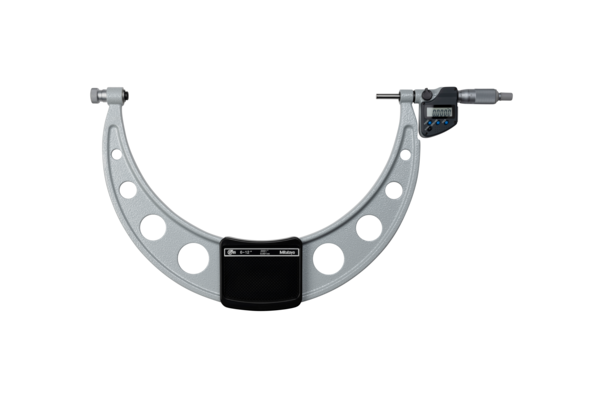

Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 ( Inspec 106-62-300)
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 ( Inspec 106-62-300)
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 ( Inspec 106-62-300)
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 ( Inspec 106-62-300)
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 ( Inspec 106-62-300)
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 ( Inspec 106-62-300)
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 ( Inspec 106-62-300)
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 ( Inspec 106-62-300)
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 ( Inspec 106-62-300)
Roll over image to zoom in Click on image to zoom
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 ( Inspec 106-62-300)Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 ( Inspec 106-62-300)Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 ( Inspec 106-62-300)Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 ( Inspec 106-62-300)Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 ( Inspec 106-62-300)Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 ( Inspec 106-62-300)Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 ( Inspec 106-62-300)Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 ( Inspec 106-62-300)Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 ( Inspec 106-62-300)

Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 ( Inspec 106-62-300)

MitutoyoSKU: 340-352-30
List price: £1,110.00 Offer price: £810.00 Excluding VAT

Optional Services

Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand for Micrometer 300-1000mm/12-40" 156-103
Part number: 156-103  → View product
Optical Parallels Set, Metric 0-25mm 157-903
Part number: 157-903  → View product
U-WAVE fit, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-622
Part number: 264-622  → View product
U-WAVE fit, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-623
Part number: 264-623  → View product
U-WAVE fit Bluetooth, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-626
Part number: 264-626  → View product
U-WAVE fit Bluetooth, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-627
Part number: 264-627  → View product
Mitutoyo Connection Unit IP Caliper, Micrometer U-WAVE fit, U-WAVE fit Bluetooth 02AZF310
Part number: 02AZF310  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA662
Part number: 05CZA662  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA663
Part number: 05CZA662  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380B
Part number: 06AFM380B  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
This Digimatic Micrometer offers you an extra wide measuring range, and has the following benefits:
  • Easy, interchangeable anvils allow a wide range of measurements.
  • Ratchet stop for constant force.
Specification
Digital/Analog:
Digital
Delivered:

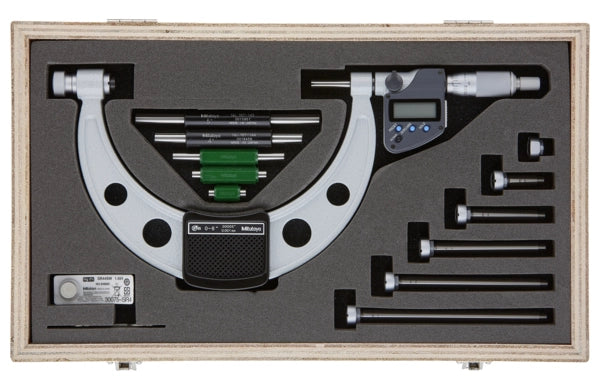

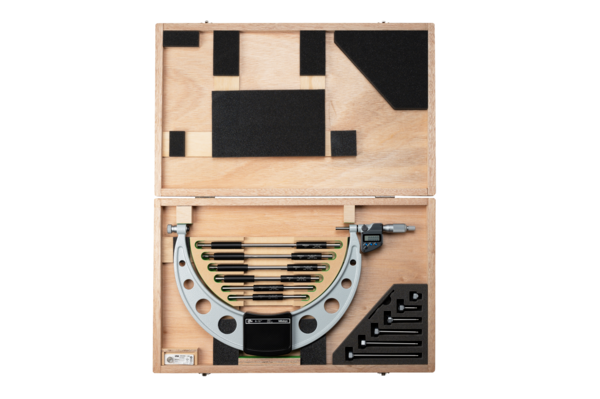

Including box, spanner, setting standard, 6 anvils, 1 SR44 battery
Inch-Metric:
Inch/Metric
Range:
6 - 12 "/150-300mm
Digital step:
0,0001"/0,001 mm
Limit of error:
±0,0004"
Spindle feed error:
0.00015 inch
Flatness:
0,000024"
Parallelism:
0,0002"
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide tipped, micro-lap finish spindle and hardened steel anvil
Measuring spindle:
With spindle lock, ø6,35 mm (?300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Power supply:
Battery SR-44
Battery life:
Approx. 2.4 years, Approx. 1.8 years (> 300 mm)

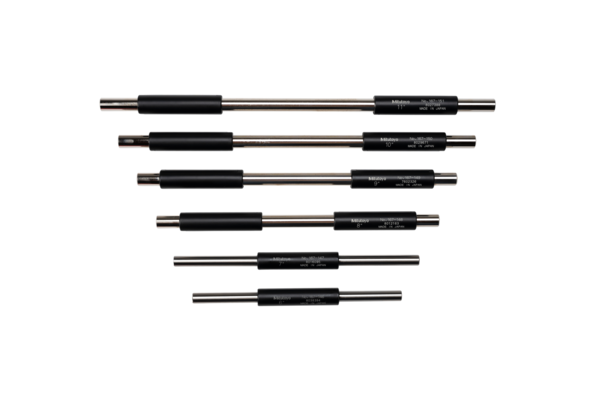

Setting standard:
6 (6, 7, 8, 9, 10, 11")

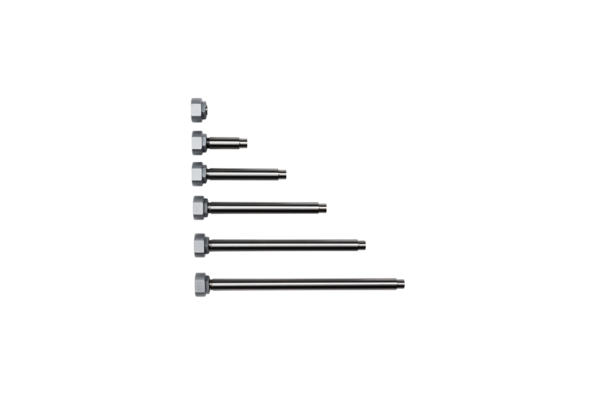

Interchangeable anvils:
6
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
2 x PRESET:
Yes
Mass:
1.88 kg

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 ( Inspec 106-62-300) Click to open the PDF document
