Name: Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric,300-450mm(12-18"), incl. 6 Anvils 340-720
Brand: Mitutoyo
SKU: 340-720
Price: 1044.0 GBP
Availability: InStock

Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric,300-450mm(12-18"), incl. 6 Anvils 340-720

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

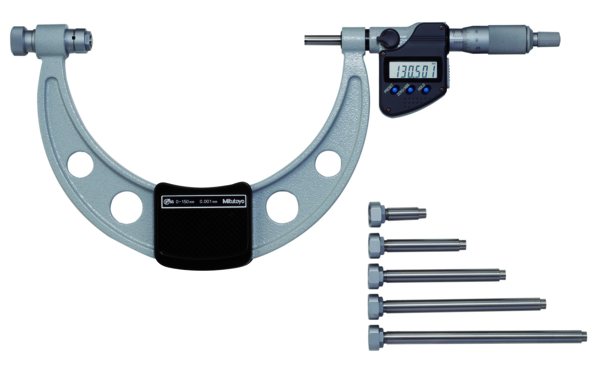

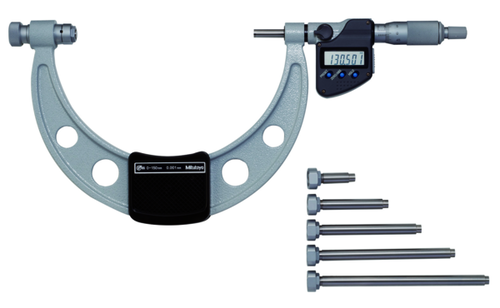

A Mitutoyo digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument. A ratchet stop guarantees repeatable measurement. Digimatic data output.

Specification

Digital/Analog:	Digital
Delivered:	Including box, spanner, setting standard, 6 anvils, 2 SR44 batteries
Inch-Metric:	Inch/Metric
Range:	12 - 18 "/300-450mm
Digital step:	0,0001"/0,001 mm
Limit of error:	±0,0005"
Spindle feed error:	0.00015 inch
Flatness:	0,00004"
Parallelism:	0,00028"
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide tipped, micro-lap finish spindle and hardened steel anvil
Measuring spindle:	With spindle lock, ø6,35 mm (?300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø21 mm
Measuring force:	10 - 15 N
Power supply:	Battery SR-44
Battery life:	Approx. 2.4 years for models ?300 mm 1.8 years for >300 mm
Setting standard:	6 (12, 13, 14, 15, 16, 17")
Interchangeable anvils:	6
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET:	Yes
Mass:	3.5 kg

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric,300-450mm(12-18"), incl. 6 Anvils 340-720 Click to open the PDF document
