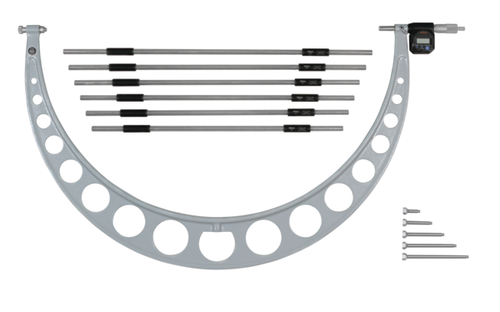

Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 600-750mm(24-30"), incl. 6 Anvils 340-722

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 600-750mm(24-30"), incl. 6 Anvils 340-722

Name: Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 600-750mm(24-30"), incl. 6 Anvils 340-722
Brand: Mitutoyo
SKU: 340-722
Price: 1292.0 GBP
Availability: InStock

MitutoyoSKU: 340-722

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£1,292.00 £1,770.00

Quantity:

All prices exclude VAT, which will be added at checkout.

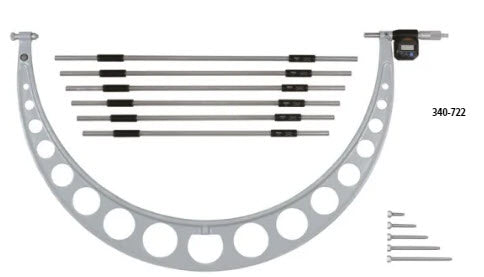

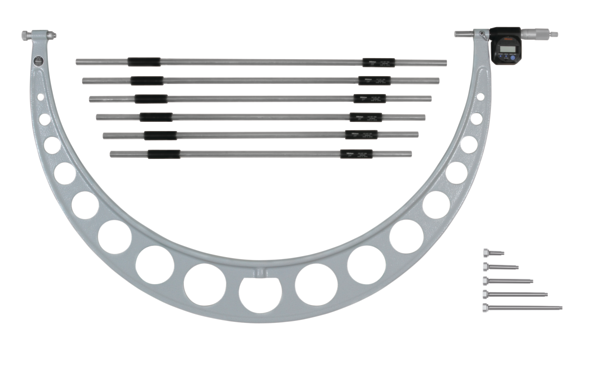

A Mitutoyo digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument. A ratchet stop guarantees repeatable measurement. Digimatic data output.

Specification

Digital/Analog:	Digital
Delivered:	Including box, spanner, setting standard, 6 anvils, 2 SR44 batteries
Inch-Metric:	Inch/Metric
Range:	24 - 30 "/600-750mm
Digital step:	0,0001"/0,001 mm
Limit of error:	±0,0006"
Spindle feed error:	0.00015 inch
Flatness:	0,00004"
Parallelism:	0,0004"
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide tipped, micro-lap finish spindle and hardened steel anvil
Measuring spindle:	With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø21 mm
Measuring force:	10 - 15 N
Power supply:	Battery SR-44
Battery life:	Approx. 2.4 years for models ≤300 mm 1.8 years for >300 mm
Setting standard:	6 (24, 25, 26, 27, 28, 29")
Interchangeable anvils:	6
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET:	Yes
Mass:	7.7 kg

Product Information
Part Number	340-722
Measuring Ranges	600-750mm/24-30"
Resolution	.001mm/.00005"
Unit of Measurement	Metric Inch
Type	Interchangeable Anvil
