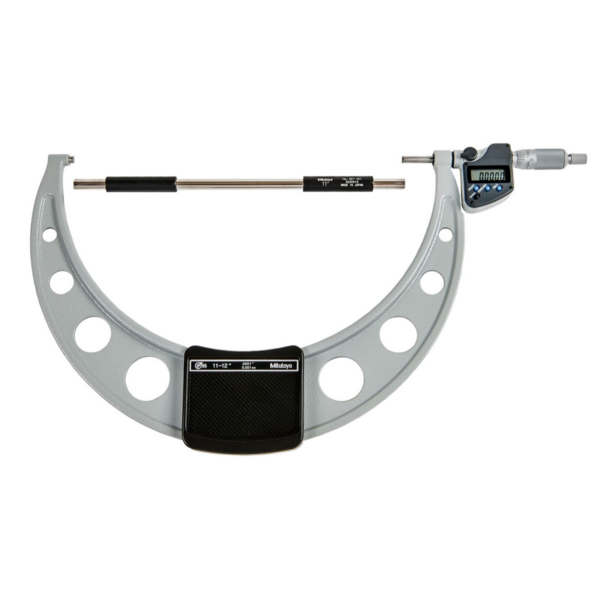

Mitutoyo Digital Micrometer IP65, Inch/Metric 275-300mm/11-12", with Output Item number: 293-357-30 Ratchet stop

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Micrometer IP65, Inch/Metric 275-300mm/11-12", with Output Item number: 293-357-30 Ratchet stop

Name: Mitutoyo Digital Micrometer IP65, Inch/Metric 275-300mm/11-12", with Output Item number: 293-357-30 Ratchet stop
Brand: Mitutoyo
SKU: 293-357-30
Price: 494.2 GBP
Availability: InStock

MitutoyoSKU: 293-357-30

All prices exclude VAT, which will be added at checkout.

Price:

£494.20 £706.00

Quantity:

This IP65 Micrometer offers outstanding accuracy, with and without data output, is highly robust and offers the following benefits:

Oil-resistant material used for all plastic parts
Extraordinary battery life of 2,4 years*
Excellent resistance against water and dust enables this micrometer to be used in machining situations that include splashing coolant fluid.

Specification

Digital/Analog:	Digital
Delivered:	Including box, spanner, SR44 battery, setting standard
Inch-Metric:	Inch/Metric
Range:	11 - 12 "/275-300mm
Digital step:	0,0001"/0,001 mm
Max. Permissible Error J MPE:	±0,0002"
Flatness:	0,000012"
Parallelism:	0,0002"
Data output:	Yes
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years for models ≤4" 1.2 years for >4"
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET (over 100 mm):	Yes
Mass:	1590 g

Product Information
Part Number	293-357-30
Measuring Range	275-300mm/11-12"
Resolution	.001mm/.0001"
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	IP65
Measuring Force	5-10N
Type	Standard
Constant Force Device	Ratchet Stop
Flatness	.005mm/.0002"
Parallelism	.003mm/.00012"
Calibration Code	Cal1B1
Resolution/Capacity	.001mm/.0001"
