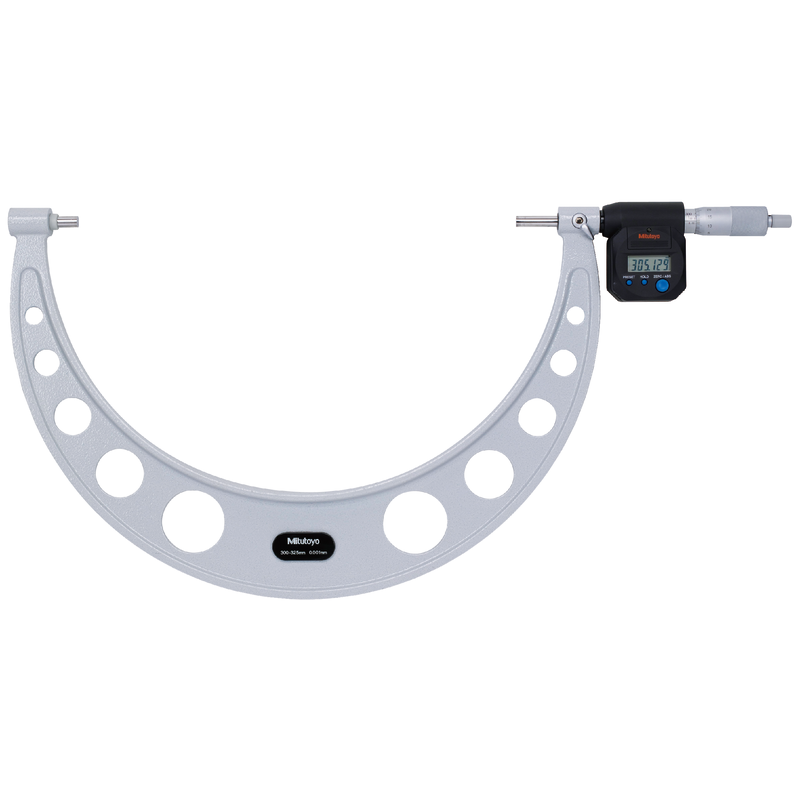

Mitutoyo; Digital Micrometer
This Wide Measuring Range Digimatic Micrometer with data output offers the
following benefits:

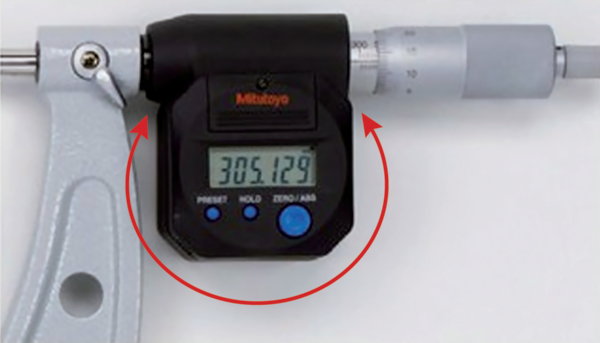

- The micrometer‘s 330° rotatable display unit enables easy reading in all measurement positions.
- With Carbide-tipped measuring faces
| Digital/Analog: |
Digital
|
| Delivered: |
Including box, spanner, SR44 battery, setting standard
|
| Inch-Metric: |
Inch/Metric
|
| Range: |
12 - 13 "
|
| Digital step: |
0.0001"/0.001 mm
|
| Max. Permissible Error J MPE: |
±0.0003"
|
| Parallelism: |
0.0002"
|
| Data output: |
Yes
|
| Display: |
LCD, character height 7.5 mm
|
| Measuring face: |
Carbide-tipped, micro-lap finish
|
| Measuring spindle: |
With spindle lock, ø8 mm, spindle pitch 0.5 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø21 mm
|
| Measuring force: |
10 - 14 N
|
| Power supply: |
2 batteries SR-44
|
| Battery life: |
Approx. 1.8 years
|
| Delivered: |
Including box, setting standard, key, 2 batteries
|
| ABS / INC (INC ZERO): |
Yes
|
| Auto Power OFF after 20 min. non use: |
Yes
|
| Low voltage alarm: |
Yes
|
| Function lock: |
Yes
|
| HOLD: |
Yes
|
| 2 x PRESET: |
Yes
|
| Mass: |
2000 g
|
