MitutoyoSKU: 293-333-30
List price: £400.00 Offer price: £292.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Calibration Micrometer Setting Rod ≤ 100mm
£18.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
Continue comparing alternatives

Return to the original comparison menu to review another equivalent product. Your selected sorting order will be preserved.

← Back to the full alternatives menu

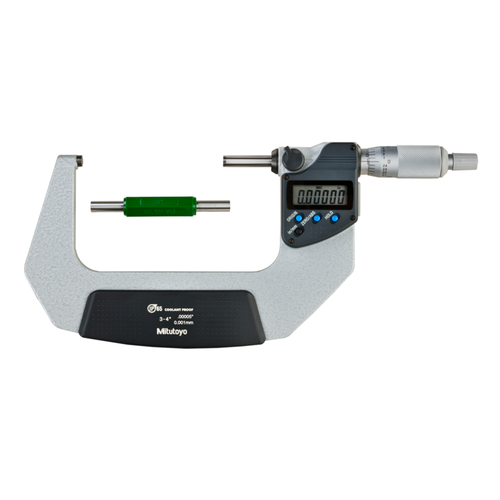

A Mitutoyo waterproof digital micrometer suitable for use in the presence of coolant or cutting oil. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement. Digimatic data output.
Specification
Digital/Analog:
Digital
Delivered:
Including box, spanner, SR44 battery, setting standard
Inch-Metric:
Metric
Range:
75 - 100 mm
Digital step:
0.001 mm
Max.
Permissible Error
J MPE:
±2 µm
Flatness:
0.3 µm
Parallelism:
2 µm
Data output:
Yes
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide-tipped, micro-lap finish
Measuring spindle:
With spindle lock, ø6.35 mm, spindle pitch 0.5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Power supply:
1 battery SR-44
Battery life:
Approx. 2.4 years for models ?100 mm
1.2 years for >100 mm
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
2 x PRESET (over 100 mm):
Yes
Mass:
625 g

No technical information is currently available.

No application information is currently available.
