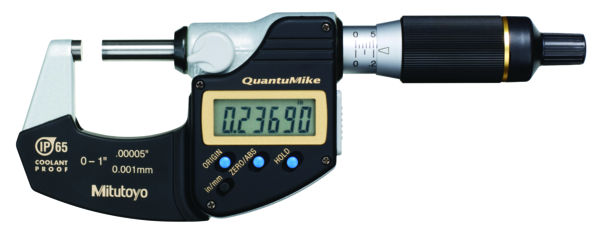

Mitutoyo Digital Micrometer QuantuMike IP65 Inch/Metric, 0-1"/0-25mm With SPC Output 293-180-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Micrometer QuantuMike IP65 Inch/Metric, 0-1"/0-25mm With SPC Output 293-180-30

Name: Mitutoyo Digital Micrometer QuantuMike IP65 Inch/Metric, 0-1"/0-25mm With SPC Output 293-180-30
Brand: Mitutoyo
SKU: 293-180-30
Price: 245.7 GBP
Availability: InStock

MitutoyoSKU: 293-180-30

All prices exclude VAT, which will be added at checkout.

Price:

£245.70 £351.00

Quantity:

A rapid action, waterproof Mitutoyo digital micrometer that enables measurements to be made several times faster than a standard micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement. Digimatic data output.

Digital/Analog:	Digital
Delivered:	Including box, spanner, SR44 battery, setting standard, certificate of inspection
Inch-Metric:	Inch/Metric
Range:	0-25mm/0-1"
Digital step:	.001mm/.00005"
Max. Permissible Error J MPE:	±0.00005"
Flatness:	0.000012"
Parallelism:	0.00004"
Data output:	Yes
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	With spindle lock, ø6.35mm, spindle pitch 2 mm
Scale:	Thimble and sleeve satin chrome finish, ø19.3 mm
Measuring force:	7 - 12 N
Power supply:	1 battery SR44
Battery life:	Approx. 2.4 years
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
Mass:	325 g

Product Information
Part Number	293-180-30
Measuring Range	0-25mm/0-1"
Resolution	.001mm/.00005"
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	IP65
Type	Standard
Constant Force Device	Ratchet Thimble
Flatness	0.0003mm/ 0.000012"
Parallelism	.001mm/.00004"
Calibration Code	Cal1B1
Resolution/Capacity	.001mm/.00005"
