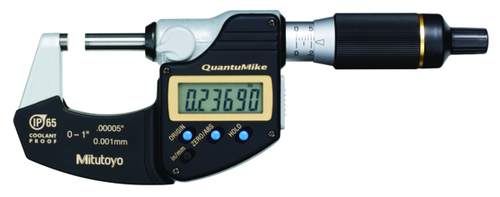

Mitutoyo Digital Micrometer QuantuMike IP65 Inch/Metric, 0-1"/0-25mm With SPC Output 293-180-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Micrometer QuantuMike IP65 Inch/Metric, 0-1"/0-25mm With SPC Output 293-180-30

Name: Mitutoyo Digital Micrometer QuantuMike IP65 Inch/Metric, 0-1"/0-25mm With SPC Output 293-180-30
Brand: Mitutoyo
SKU: 293-180-30
Price: 250.0 GBP
Availability: InStock

MitutoyoSKU: 293-180-30

List price: £366.00 Offer price: £250.00 Excluding VAT

Quantity:

Optional Services

UKAS Accredited Calibration +£25.00 Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Continue comparing alternatives

Return to the original comparison menu to review another equivalent product. Your selected sorting order will be preserved.

← Back to the full alternatives menu

Overview Technical Information Applications Videos & Documents

A rapid action, waterproof Mitutoyo digital micrometer that enables measurements to be made several times faster than a standard micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement. Digimatic data output.

Digital/Analog:	Digital
Delivered:	Including box, spanner, SR44 battery, setting standard, certificate of inspection
Inch-Metric:	Inch/Metric
Range:	0-25mm/0-1"
Digital step:	.001mm/.00005"
Max. Permissible Error J MPE:	±0.00005"
Flatness:	0.000012"
Parallelism:	0.00004"
Data output:	Yes
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	With spindle lock, ø6.35mm, spindle pitch 2 mm
Scale:	Thimble and sleeve satin chrome finish, ø19.3 mm
Measuring force:	7 - 12 N
Power supply:	1 battery SR44
Battery life:	Approx. 2.4 years
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
Mass:	325 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital Micrometer QuantuMike IP65 Inch/Metric, 0-1"/0-25mm With SPC Output 293-180-30 Click to open the PDF document
