Mitutoyo Digital Micrometer QuantuMike IP65 Inch/Metric, 0-25mm/0-1" No Output 293-185-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Micrometer QuantuMike IP65 Inch/Metric, 0-25mm/0-1" No Output 293-185-30

Name: Mitutoyo Digital Micrometer QuantuMike IP65 Inch/Metric, 0-25mm/0-1" No Output 293-185-30
Brand: Mitutoyo
SKU: 293-185-30
Price: 179.0 GBP
Availability: InStock

MitutoyoSKU: 293-185-30

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£179.00 £245.00

Quantity:

All prices exclude VAT, which will be added at checkout.

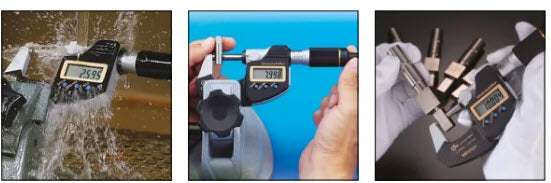

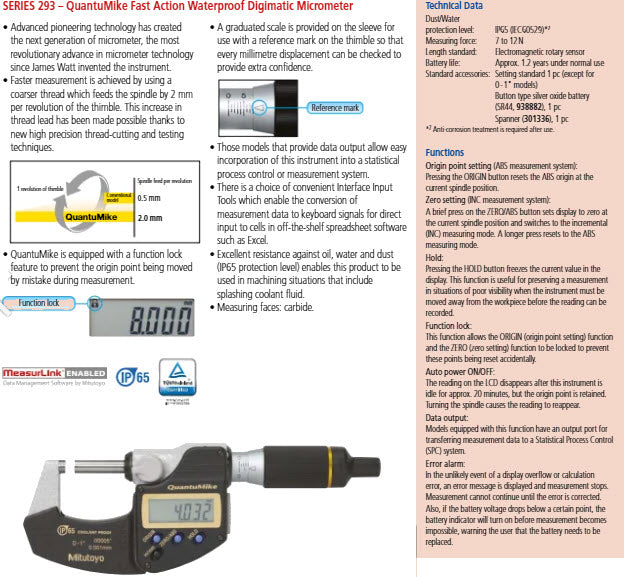

A rapid action, waterproof Mitutoyo digital micrometer that enables measurements to be made several times faster than a standard micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement.

Specification

Digital/Analog:	Digital
Delivered:	Including box, spanner, SR44 battery, certificate of inspection
Inch-Metric:	Inch/Metric
Range:	0 - 1 "/0-25mm
Digital step:	0.00005"/0.001 mm
Max. Permissible Error J MPE:	±0.00005"
Flatness:	0.000012"
Parallelism:	0.00004"
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	With spindle lock, ø6.35mm, spindle pitch 2 mm
Scale:	Thimble and sleeve satin chrome finish, ø19.3 mm
Measuring force:	7 - 12 N
Power supply:	1 battery SR44
Battery life:	Approx. 2.4 years
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
Mass:	265 g

Product Information
Part Number	293-185-30
Measuring Ranges	0-25mm/0-1"
Resolution	.001mm/.00005"
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	No
IP Rating	IP65
Type	Standard

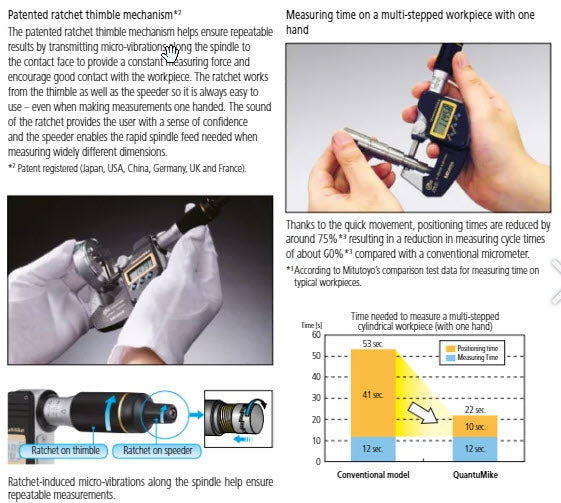

Constant Force Device	Ratchet Thimble
Flatness	0.0003mm/ 0.000012"
Parallelism	.001mm/.00004"
Manufacturer	Mitutoyo
