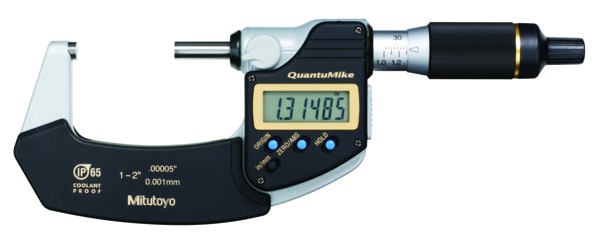

Mitutoyo Digital Micrometer QuantuMike IP65 Inch/Metric, 25-50mm/1-2" No Output 293-186-30
A rapid action, waterproof Mitutoyo digital micrometer that enables measurements to be made several times faster than a standard micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement.
- Digital/Analog - Digital
- Delivered - Including box, spanner, SR44 battery, setting standard, certificate of inspection
- Inch-Metric - Metric/Inch

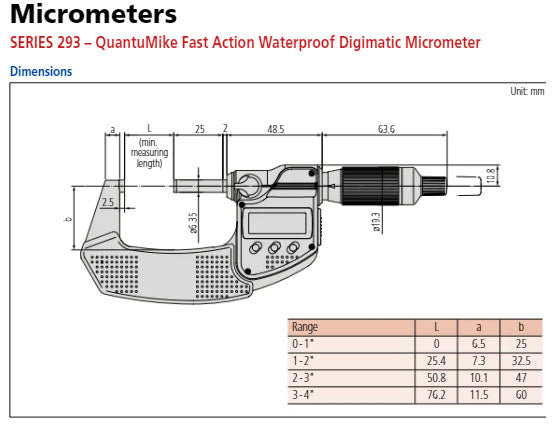

- Range - 25-50mm/1-2"
- Digital Step - 0.001 mm/0.00005"
- Max. Permissible Error J MPE - ±0.00005"
- Flatness - 0.000012"
- Parallelism - 0.00004"
- Display - LCD, character height 7.5mm
- Measuring Face - Carbide-tipped, micro-lap finish
- Measuring Spindle - With spindle lock, ø6.35mm, spindle pitch 2 mm
- Scale - Thimble and sleeve satin chrome finish, ø19.3 mm
- Measuring Force - 7-12N
- Power Supply - 1 battery SR44
- Battery Life - Approx. 2.4 years
- ABS / INC (INC ZERO) - Yes
- Auto Power OFF after 20 min. non use - Yes
- Low voltage alarm - Yes
- Function lock - Yes
- HOLD - Yes
- Mass - 325g
No technical information is currently available.
No application information is currently available.
