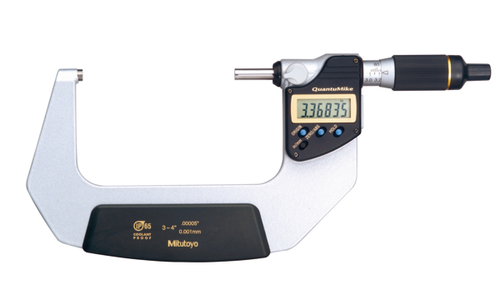

MitutoyoSKU: 293-188-30
List price: £392.00 Offer price: £286.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
Click for PDF

A rapid action, Mitutoyo waterproof digital micrometer that enables measurements to be made several times faster than a standard micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement.
Digital/Analog:
Digital
Delivered:
Including box, spanner, SR44 battery, setting standard
Inch-Metric:
Inch/Metric
Range:
3 - 4 "/75-100mm
Digital step:
0.00005"/0.001 mm
Max.
Permissible Error
J MPE:
±0.0001"
Flatness:
0.000012"
Parallelism:
0.00008"
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide-tipped, micro-lap finish
Measuring spindle:
With spindle lock, ø6.35mm, spindle pitch 2 mm
Scale:
Thimble and sleeve satin chrome finish, ø19.3 mm
Measuring force:
7 - 12 N
Power supply:
1 battery SR44
Battery life:
Approx. 2.4 years
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
Mass:
620 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital Micrometer QuantuMike IP65 Inch/Metric, 75-100mm/3-4" 293-188-30 Without OutPut Click to open the PDF document
