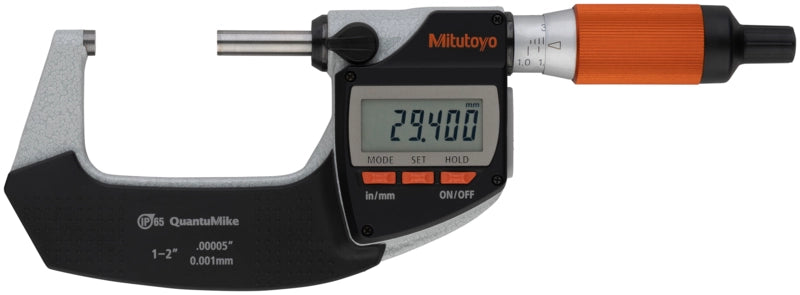

Digital Micrometer QuantuMike IP65 Metric, 25-50mm, with Bidirectional Output Item number: 293-141-40

PDF

This is an IP65 micrometer offering movement four times as fast as a standard micrometer.

It presents you with the following benefits:

• Faster measurement is achieved by using a coarser thread which feeds the spindle by 2 mm per thimble rotation.
• Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
• Ratched thimble mechanism and a small design ensures easy single-handed or stand operation.
• Equipped with a calibration schedule warning function.
• GO/±NG judgement is performed by setting the upper and lower tolerance limits.
• Approach speed warning function for reliable measurements.
• Extraordinary battery life of 2 years (4000 h).
• Outstanding accuracy refer to EN ISO 3611 J_MPE ±1 µm (0-25, 25-50 mm model).
• Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.
• A function lock protects the display against unauthorized use.
• Visibility is improved by enlarging the display unit.
