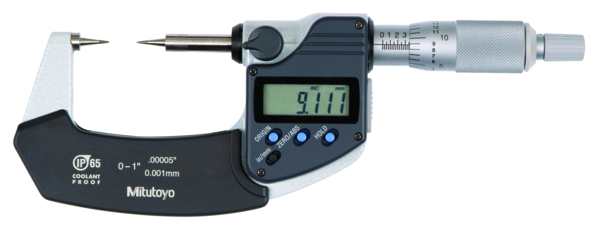

Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/0-1", 15° Tip 342-351-30
Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/0-1", 15° Tip 342-351-30
Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/0-1", 15° Tip 342-351-30
Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/0-1", 15° Tip 342-351-30
Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/0-1", 15° Tip 342-351-30
Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/0-1", 15° Tip 342-351-30
Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/0-1", 15° Tip 342-351-30
Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/0-1", 15° Tip 342-351-30
Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/0-1", 15° Tip 342-351-30
Roll over image to zoom in Click on image to zoom
Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/0-1", 15° Tip 342-351-30Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/0-1", 15° Tip 342-351-30Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/0-1", 15° Tip 342-351-30Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/0-1", 15° Tip 342-351-30Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/0-1", 15° Tip 342-351-30Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/0-1", 15° Tip 342-351-30Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/0-1", 15° Tip 342-351-30Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/0-1", 15° Tip 342-351-30Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/0-1", 15° Tip 342-351-30

Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/0-1", 15° Tip 342-351-30

MitutoyoSKU: 342-351-30
List price: £544.00 Offer price: £397.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Calibration Micrometer Setting Rod ≤ 100mm
£10.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10
Part number: 156-101-10  → View product
Mitutoyo Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10
Part number: 156-105-10  → View product
Mitutoyo 516-106-10 10 Blocks Micrometer Inspection Gauge Block Set Grade 0
Part number: 516-106-10  → View product
MMI-10 Micrometer Checker on a stand Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm
Part number: MMI-10  → View product
MMI-8 Micrometer Checker on a stand Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm
Part number: MMi-8  → View product
U-WAVE fit, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-622
Part number: 264-622  → View product
U-WAVE fit, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-623
Part number: 264-623  → View product
U-WAVE fit Bluetooth, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-626
Part number: 264-626  → View product
U-WAVE fit Bluetooth, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-627
Part number: 264-627  → View product
Mitutoyo Connection Unit IP Caliper, Micrometer U-WAVE fit, U-WAVE fit Bluetooth 02AZF310
Part number: 02AZF310  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA662
Part number: 05CZA662  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA663
Part number: 05CZA662  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380B
Part number: 06AFM380B  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product

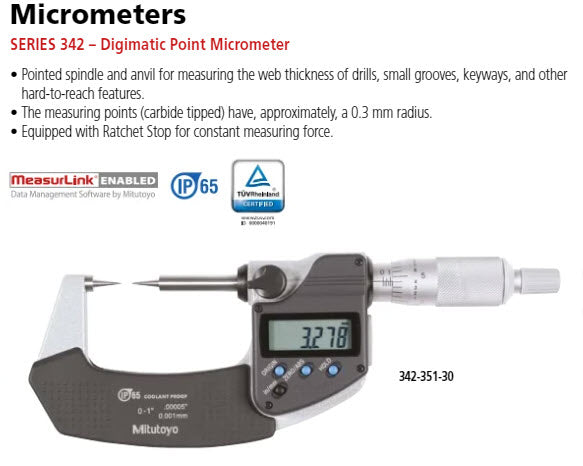

This Digimatic Point Micrometer features a pointed anvil and
spindle, and offers the following benefits:

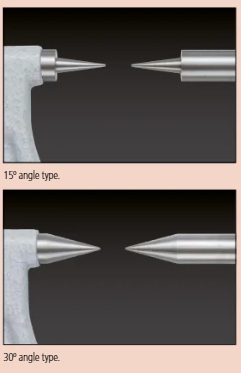

  • Its pointed anvil and spindle has a choice of included angle,
    ending in small-radius contact points.

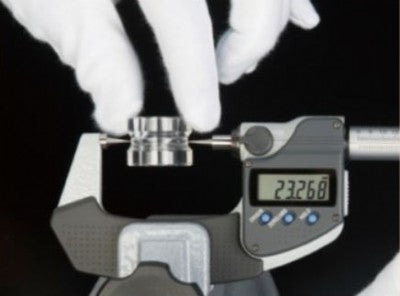

  • You can use it to measure grooves, steps and similar.

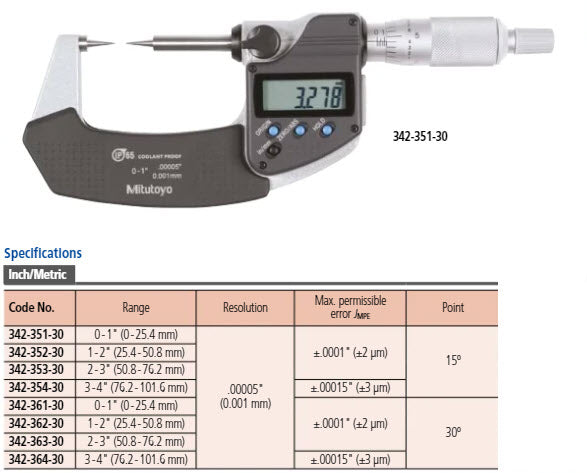

Specification
Digital/Analog:
Digital
Delivered:
Including box, spanner, 1 SR44 battery
Inch-Metric:
Inch/Metric
Range:
0 - 1 "/0-25mm
Digital step:
0,00005"/0,001 mm
Max.
Permissible Error
J MPE:
±0,0001"/.0025mm
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide pointed spindle and anvil, measuring point radius 0.3 mm
Tip:
15°
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
3 - 8 N
Power supply:
1 battery SR-44
Battery life:
Approx. 2.4 years
Delivered:
Including box, key, 1 battery, setting standard (from 25 mm upward)
ORIGIN:
Yes
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
Mass:
330 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/0-1", 15° Tip 342-351-30 Click to open the PDF document
