Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 25-50mm/1-2", 15° Tip 342-352-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 25-50mm/1-2", 15° Tip 342-352-30

Name: Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 25-50mm/1-2", 15° Tip 342-352-30
Brand: Mitutoyo
SKU: 342-352-30
Price: 407.0 GBP
Availability: InStock

MitutoyoSKU: 342-352-30

All prices exclude VAT, which will be added at checkout.

Price:

£407.00 £555.00

Quantity:

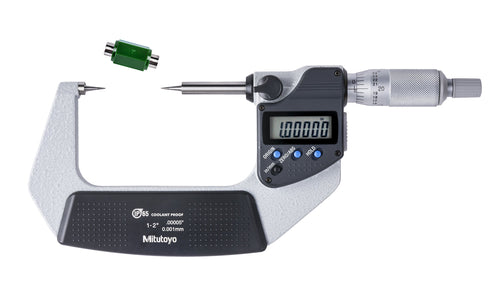

This Digimatic Point Micrometer features a pointed anvil and
spindle, and offers the following benefits:

Its pointed anvil and spindle has a choice of included angle,
ending in small-radius contact points.
You can use it to measure grooves, steps and similar.

Specification

Digital/Analog:	Digital
Delivered:	Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric:	Inch/Metric
Range:	1 - 2 "
Digital step:	0,00005"/0,001 mm
Max. Permissible Error J MPE:	±0,0001"
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide pointed spindle and anvil, measuring point radius 0.3 mm
Tip:	15°
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years
Delivered:	Including box, key, 1 battery, setting standard (from 25 mm upward)
ORIGIN:	Yes
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
Mass:	470 g

Product Information
Part Number	342-352-30
Measuring Ranges	25-50mm/1-2"
Resolution	0.001mm/0.00005"
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	IP65
Measuring Force	3-8N
Type	Point
Constant Force Device	Ratchet Stop
Manufacturer	Mitutoyo
