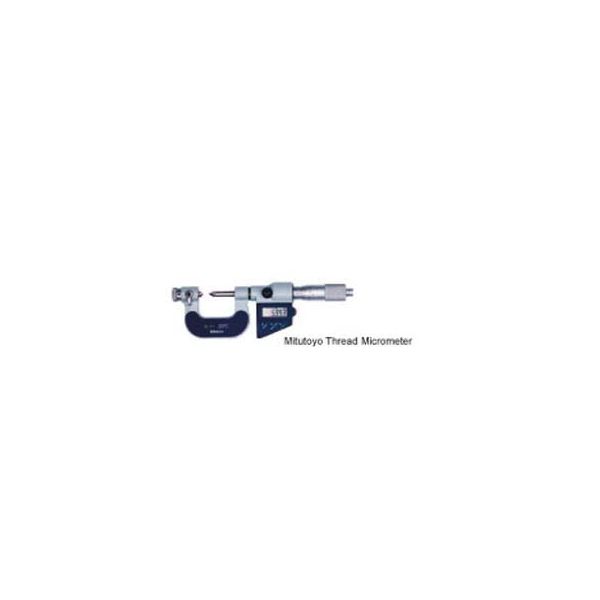

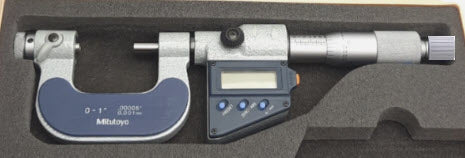

Mitutoyo Digital Screw Thread Micrometer Inch/Metric,0-25mm/0-1" 326-711-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Screw Thread Micrometer Inch/Metric,0-25mm/0-1" 326-711-30

Name: Mitutoyo Digital Screw Thread Micrometer Inch/Metric,0-25mm/0-1" 326-711-30
Brand: Mitutoyo
SKU: 326-351-30
Price: 477.4 GBP
Availability: InStock

MitutoyoSKU: 326-351-30

All prices exclude VAT, which will be added at checkout.

Price:

£477.40 £682.00

Quantity:

his Digimatic Screw Thread Micrometer should be used with optional, interchangeable, anvils/spindle-tips that allow you to measure a wide range of metric/unified and Whitworth screw-thread pitch diameters.

A metric (unified) 60º setting standard is included with all models except those measuring range from 0-25 mm.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	326-351-30
Measuring Range	0-25mm/0-1"
Resolution	.001mm/.00005"
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
Type	Thread
Graduation on Thimble	.01mm
Constant Force Device	Ratchet Stop
Calibration Code	CAL9 B1
Resolution/Capacity	.001mm/.00005"

Digital/Analog:	Digital

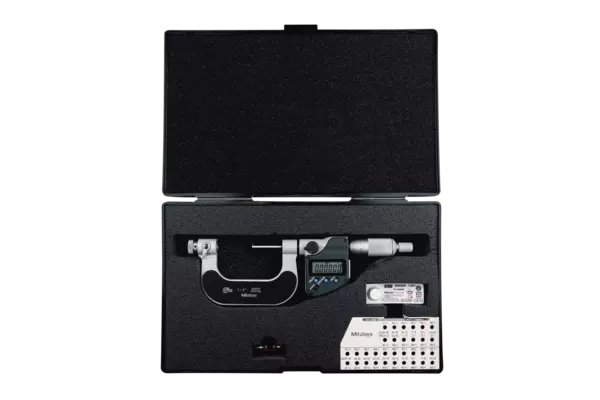

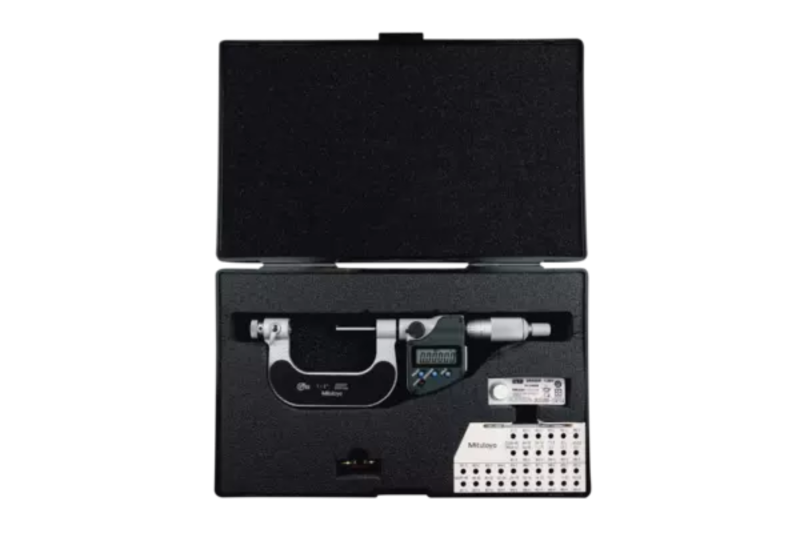

Delivered:	Including box, spanner, 1 SR44 battery, without interchangeable tips
Inch-Metric:	Inch/Metric
Range:	0 - 1 "
Digital step:	0,00005"/0,001 mm
Spindle feed error:	0.00015 inch
Display:	LCD, character height 7.5 mm
Measuring face:	Interchangeable anvil/spindle inserts (optional)
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET:	Yes
Mass:	350 g
