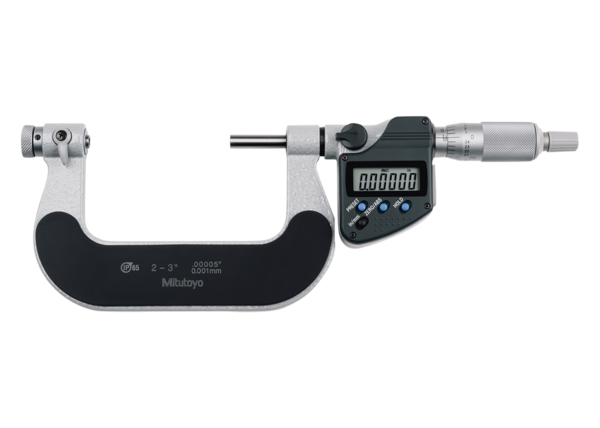

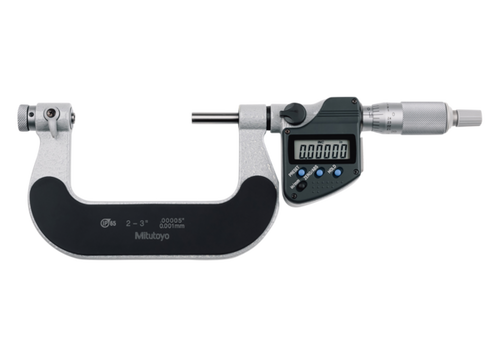

Mitutoyo Digital Screw Thread Micrometer IP65 Inch/Metric, 2-3" 326-353-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Screw Thread Micrometer IP65 Inch/Metric, 2-3" 326-353-30

Name: Mitutoyo Digital Screw Thread Micrometer IP65 Inch/Metric, 2-3" 326-353-30
Brand: Mitutoyo
SKU: 326-353-30
Price: 548.1 GBP
Availability: InStock

MitutoyoSKU: 326-353-30

All prices exclude VAT, which will be added at checkout.

Price:

£548.10 £783.00

Quantity:

This Digimatic Screw Thread Micrometer should be used with optional, interchangeable, anvils/spindle-tips that allow you to measure a wide range of metric/unified and Whitworth screw-thread pitch diameters.

A metric (unified) 60º setting standard is included with all models except those measuring range from 0-25 mm.

Specification

Digital/Analog:	Digital
Delivered:	Including box, spanner, setting standard, 1 SR44 battery, without interchangeable tips
Inch-Metric:	Inch/Metric
Range:	2 - 3 "
Digital step:	0,00005"/0,001 mm
Spindle feed error:	0.00015 inch
Display:	LCD, character height 7.5 mm
Measuring face:	Interchangeable anvil/spindle inserts (optional)
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET:	Yes
Mass:	470 g

Product Information
Part Number	326-353-30
Measuring Ranges	50-75mm/2-3"
Resolution	.001mm/.00005"
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	IP65
Type	Thread
Constant Force Device	Ratchet Stop
Manufacturer	Mitutoyo
