Mitutoyo Digital Sheet Metal Micrometer Inch/Metric, 0-25mm/0-1", 300mm/12" Throat 389-714
Mitutoyo Digital Sheet Metal Micrometer Inch/Metric, 0-25mm/0-1", 300mm/12" Throat 389-714
Mitutoyo Digital Sheet Metal Micrometer Inch/Metric, 0-25mm/0-1", 300mm/12" Throat 389-714
Mitutoyo Digital Sheet Metal Micrometer Inch/Metric, 0-25mm/0-1", 300mm/12" Throat 389-714
Mitutoyo Digital Sheet Metal Micrometer Inch/Metric, 0-25mm/0-1", 300mm/12" Throat 389-714
Mitutoyo Digital Sheet Metal Micrometer Inch/Metric, 0-25mm/0-1", 300mm/12" Throat 389-714
Mitutoyo Digital Sheet Metal Micrometer Inch/Metric, 0-25mm/0-1", 300mm/12" Throat 389-714
Roll over image to zoom in Click on image to zoom
Mitutoyo Digital Sheet Metal Micrometer Inch/Metric, 0-25mm/0-1", 300mm/12" Throat 389-714Mitutoyo Digital Sheet Metal Micrometer Inch/Metric, 0-25mm/0-1", 300mm/12" Throat 389-714Mitutoyo Digital Sheet Metal Micrometer Inch/Metric, 0-25mm/0-1", 300mm/12" Throat 389-714Mitutoyo Digital Sheet Metal Micrometer Inch/Metric, 0-25mm/0-1", 300mm/12" Throat 389-714Mitutoyo Digital Sheet Metal Micrometer Inch/Metric, 0-25mm/0-1", 300mm/12" Throat 389-714Mitutoyo Digital Sheet Metal Micrometer Inch/Metric, 0-25mm/0-1", 300mm/12" Throat 389-714Mitutoyo Digital Sheet Metal Micrometer Inch/Metric, 0-25mm/0-1", 300mm/12" Throat 389-714

Mitutoyo Digital Sheet Metal Micrometer Inch/Metric, 0-25mm/0-1", 300mm/12" Throat 389-714

MitutoyoSKU: 389-714
List price: £1,170.00 Offer price: £854.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10
Part number: 156-101-10  → View product
Mitutoyo Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10
Part number: 156-105-10  → View product
Mitutoyo 516-106-10 10 Blocks Micrometer Inspection Gauge Block Set Grade 0
Part number: 516-106-10  → View product
MMI-10 Micrometer Checker on a stand Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm
Part number: MMI-10  → View product
MMI-8 Micrometer Checker on a stand Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm
Part number: MMi-8  → View product
U-WAVE fit, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-622
Part number: 264-622  → View product
U-WAVE fit, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-623
Part number: 264-623  → View product
U-WAVE fit Bluetooth, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-626
Part number: 264-626  → View product
U-WAVE fit Bluetooth, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-627
Part number: 264-627  → View product
Mitutoyo Connection Unit IP Caliper, Micrometer U-WAVE fit, U-WAVE fit Bluetooth 02AZF310
Part number: 02AZF310  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA662
Part number: 05CZA662  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA663
Part number: 05CZA662  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380B
Part number: 06AFM380B  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product

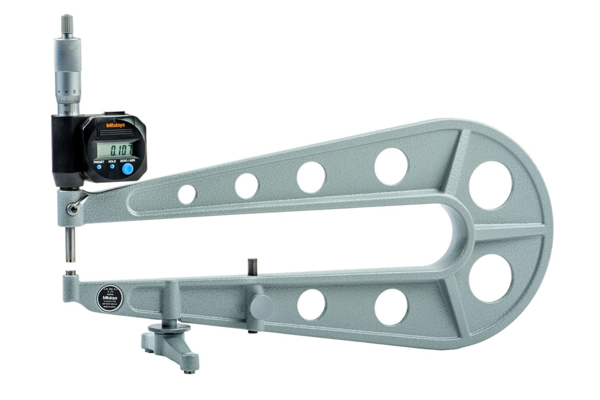

A Mitutoyo waterproof digital micrometer suitable for use in the presence of coolant or cutting oil. The extra-deep frame (305mm / 12") enables measurement of sheet metal thickness farther from the edge of a sheet than is possible with a standard deep-frame micrometer. A ratchet stop guarantees repeatable measurement. Digimatic data output.
Specification
Digital/Analog:
Digital
Delivered:

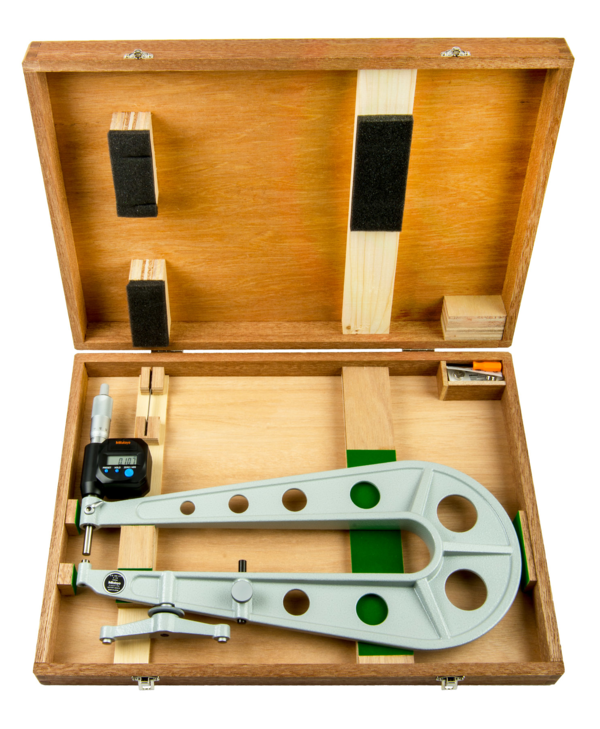

Including box, spanner, 2 SR44 batteries
Inch-Metric:
Inch/Metric
Range:
0 - 1 "/0-25mm
Digital step:
0,00005"/0,001 mm
Max.
Permissible Error
J MPE:
±0,00025"/.006mm
Flatness:
0,00004"/.001mm
Parallelism:
0,00012"/.003mm
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide-tipped, micro-lap finish
Anvil / Spindle:
Type A, flat/flat
Measuring spindle:
With spindle lock, throat depth ? 150 mm : ø 6,35 mm
throat depth =300 mm : ø 8 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø21 mm
Measuring force:
10 - 14 N
Power supply:
2 batteries SR-44
Battery life:
Approx. 2.4 years, Approx. 1.8 years (389-514)
Delivered:
Including box. key, 2 batteries

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital Sheet Metal Micrometer Inch/Metric, 0-25mm/0-1", 300mm/12" Throat 389-714 Click to open the PDF document
