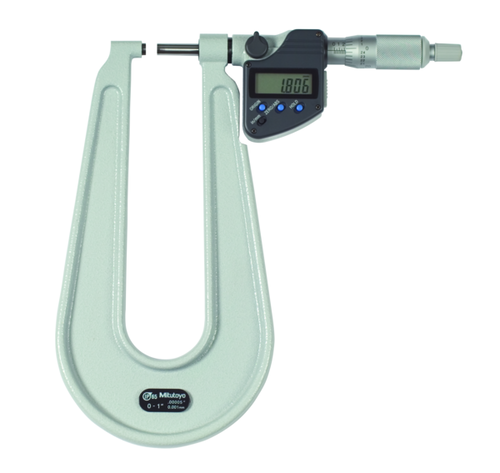

Mitutoyo Digital Sheet Metal Micrometer IP65 Inch/Metric, 0-25mm/0-1", Flat Anvil/Spindle 389-351-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Sheet Metal Micrometer IP65 Inch/Metric, 0-25mm/0-1", Flat Anvil/Spindle 389-351-30

Name: Mitutoyo Digital Sheet Metal Micrometer IP65 Inch/Metric, 0-25mm/0-1", Flat Anvil/Spindle 389-351-30
Brand: Mitutoyo
SKU: 389-351-30
Price: 438.0 GBP
Availability: InStock

MitutoyoSKU: 389-351-30

List price: £600.00 Offer price: £438.00 Excluding VAT

Quantity:

Optional Services

UKAS Accredited Calibration +£20.00 Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Recommended Alternatives

Select an alternative below to view its full details.

Sort alternatives Choose price or brand order

Insize Digital Deep Throat Outside Micrometer 0-25mm/0-1" Resolution .001mm/.00005" 3539-253Brand: InsizeSKU: 3539-253 Price: £220.00 View this alternative →

Inspec Digital Deep Throat Outside Micrometer 0-25mm/0-1" Resolution .001mm/.00005" 233-05-410Brand: InsizeSKU: 233-05-410 Price: £220.00 View this alternative →

Overview Technical Information Applications Videos & Documents

This Digimatic Sheet Metal Micrometer is designed with a deep frame, for measuring the thickness of sheet material.

Specification

Digital/Analog:	Digital
Delivered:	Including box, spanner, 1 SR44 battery
Inch-Metric:	Inch/Metric
Range:	0 - 1 "
Digital step:	0,00005"/0,001 mm
Max. Permissible Error J MPE:	±0,0002"
Flatness:	0,000024"
Parallelism:	0,00012"
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide-tipped, micro-lap finish
Anvil / Spindle:	Type A, flat/flat
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Power supply:	Battery SR-44
Battery life:	Approx. 2.4 years, Approx. 1.8 years (389-514)
ORIGIN:	Yes
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET:	Yes
Mass:	840 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital Sheet Metal Micrometer IP65 Inch/Metric, 0-25mm/0-1", Flat Anvil/Spindle 389-351-30 Click to open the PDF document
