Mitutoyo Digital Sheet Metal Micrometer IP65 Inch/Metric, 1-2", Flat Anvil/Spindle 389-352-30

MitutoyoSKU: 389-352-30
List price: £705.00 Offer price: £515.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Calibration Micrometer Setting Rod ≤ 100mm
£18.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

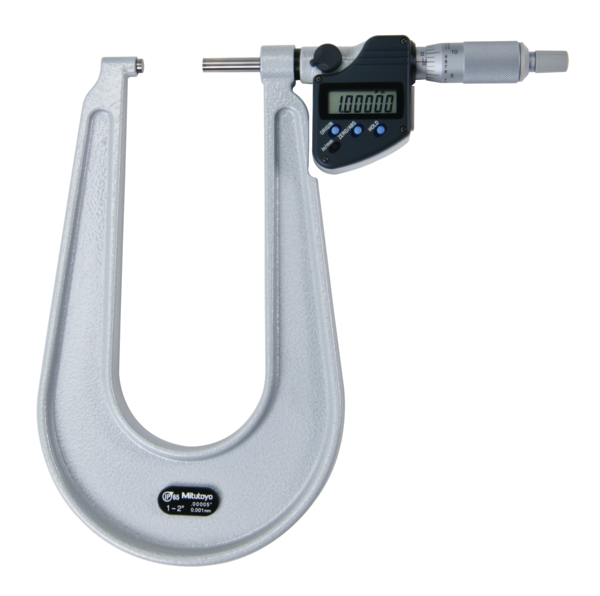

This Digimatic Sheet Metal Micrometer is designed with a deep frame, for measuring the thickness of sheet material.
Specification
Digital/Analog:
Digital
Delivered:
Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric:
Inch/Metric
Range:
1 - 2 "/25-50mm
Digital step:
0,00005"/0,001 mm
Max.
Permissible Error
J MPE:
±0,0002"/.005mm
Flatness:
0,000024"/.006mm
Parallelism:
0,00012"/.003mm
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide-tipped, micro-lap finish

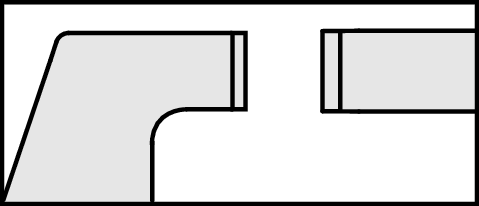

Anvil / Spindle:
Type A, flat/flat
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
3 - 8 N
Power supply:
Battery SR-44
Battery life:
Approx. 2.4 years, Approx. 1.8 years (389-514)
Delivered:
Including box. key, 1 battery

No technical information is currently available.

No application information is currently available.
